Midea KJR-120X/TFBG-E

Fig 3-11
11
3. Installation method

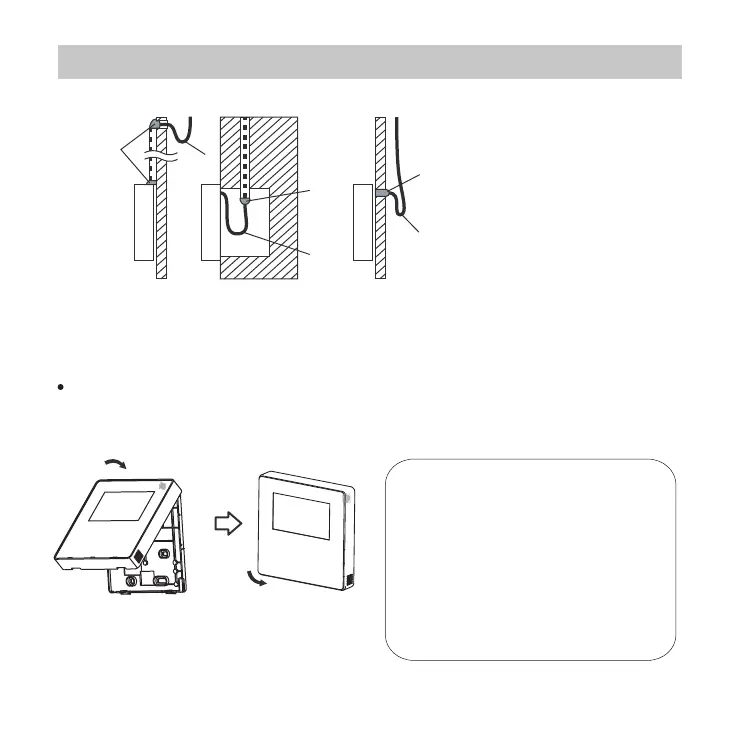

Fig 3-10
Putty
Putty
Putty
Trap
Trap
Trap
6. Reattach the upper part of the wired controller
After adjusting the upper case and then buckle the upper case;
avoid clamping the wiring during installation. (Fig 3-11)
All the pictures in this
manual are for
explanation purpose only.
Your wire controller may
be slightly dierent .The
actual shape shall prevail.
