3. Installation method
Fig 3-2
Fig 3-1

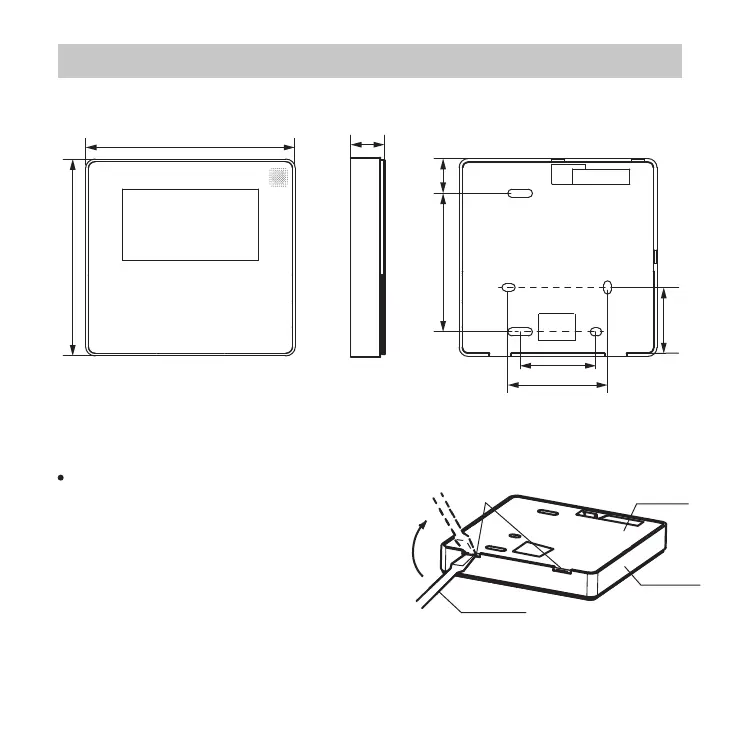

1.Wired remote controller structural dimensions
2.Remove the upper part of wired controller
Insert a slot screwdriver into the
slots in the lower part of the wired
controller (2 places), and remove
the upper part of the wire
controller. (Fig.3-2)
19mm84mm
46mm
60mm
44mm
120mm
120mm
20mm
Buckling
position
Back cover
Straight head
screwdriver
Front cover
