3. Installation method
Fig 3-3
Fig 3-4

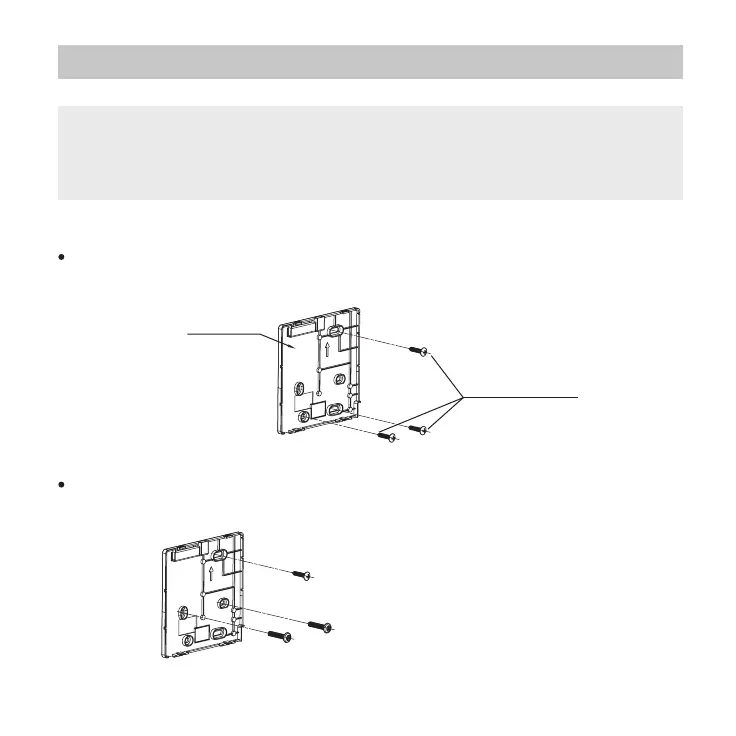

For exposed mounting, fasten the back plate on the wall with
the 3 screws (M4×20) and plugs. (Fig.3-3)
Use two M4X25 screws to install the back cover on the 86
switch box, and use one M3.9X25 screw to x to the wall.
3. Fasten the back plate of the wired controller
Back plate
Screws (M4×20)
Screw hole fixed on the wall,useone φ3.9X25mm
Screw hole installed on 86 switch box, use two M3.9X25mm
NOTE: The PCB is mounted in the upper part of the wired
controller. Be careful not to damage the board
with the slot screwdriver.
