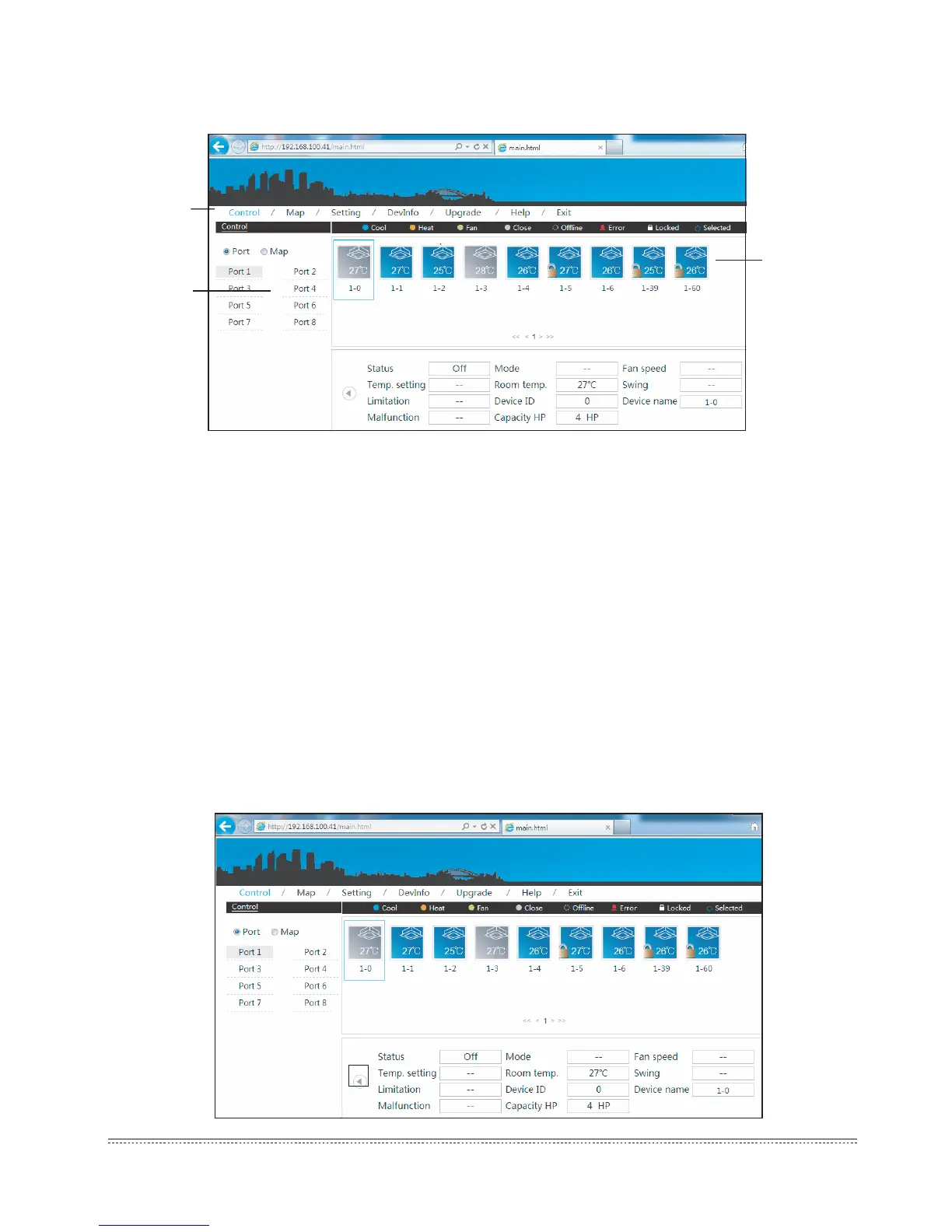

Fig.6-2
6.2 Main interface introduction
WEB home page display as follow:
Information
display
Home page: main menu, submenu and information display. Main menu: display all functions of
system, include “Device monitoring”, “System mapping”, “Setting”, “Device information” and “Help”
etc. functions. Submenu: simple divide the main menu. Information display: display information of a
function.
6.3 Devices monitoring
According to terminal and system to display the operating status of indoor and outdoor units, and
control the indoor unit. Find out the error in system through checking the operating status of indoor and
outdoor units. Detailed display the page will refresh every 10 seconds.
6.3.1 Terminals monitoring
Select the terminal, the page will display corresponding air-conditioning devices under 8 M-net
terminals, and the connected indoor units in 1-4 terminals; it offers checking and amending functions
the operating status of indoor unit.
1
)
Check the operating status of indoor unit
Fig.6-3
To Next Page
