The operating statuses of indoor unit are cool, heat, fan, OFF, power off, error and lock. Different
operating statuses will has different pictures. Click a single indoor unit, then it will display the operat-
ing status information of this indoor unit on the bottom of page, include ON/OFF status, operating
mode, device name and HP etc. information.
2
)
Control the operating status of indoor unit
Click the “ ” button in the page, then can control the indoor unit operating status page.

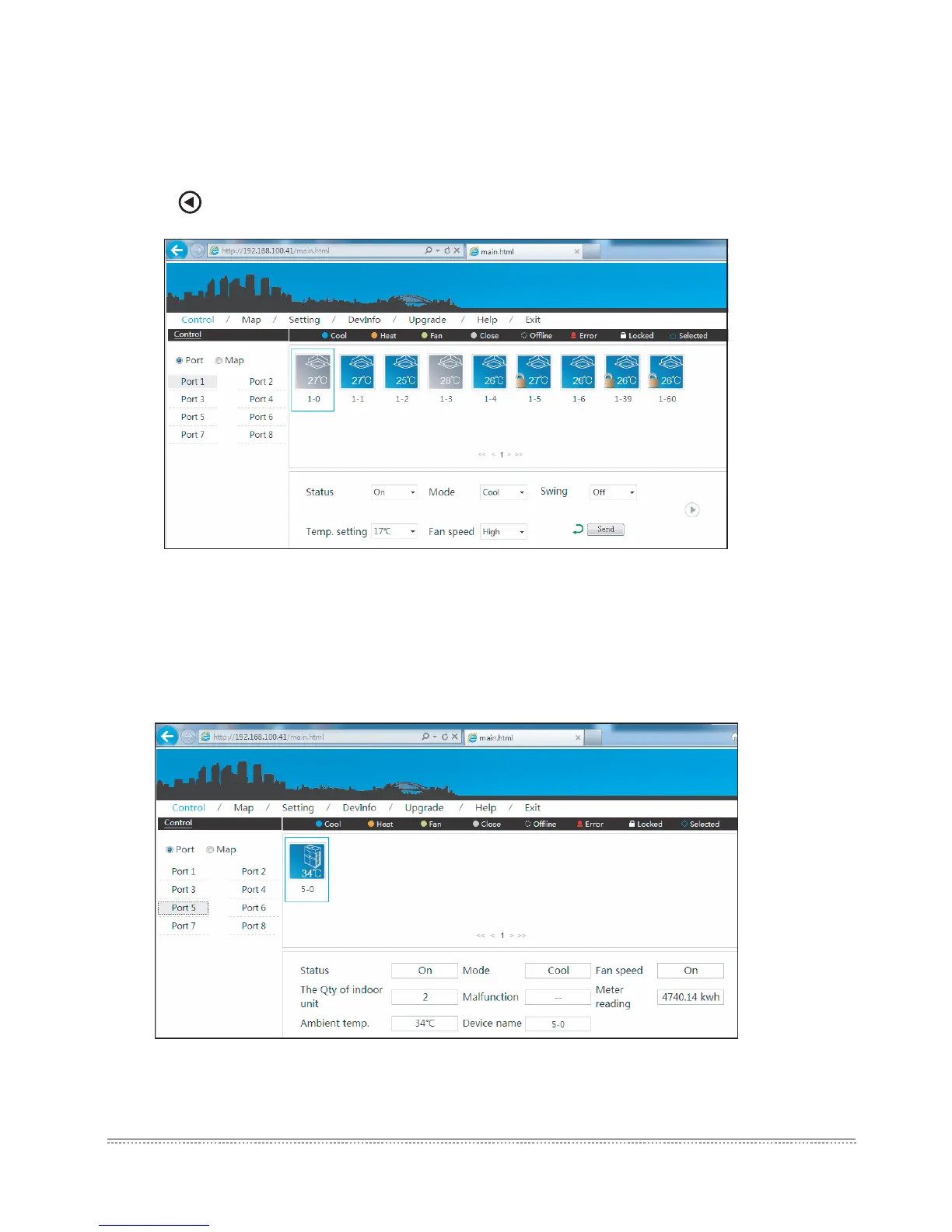

Fig.6-4
Control the air-conditioning indoor unit through single select and multi-select; select one or more air-
conditioners, set the controlling parameters, include “ON/OFF setting”, “Mode setting”, “Swing setting”,
“Temp setting” and “Fan speed setting”, and then click the “Send” button to send the control order,
and the page will display success or fail information. Check the execution status of order through the
change of the icons on the page.
3
)
Check the operating status of outdoor unit
Fig.6-5
Select the 5-8 terminals, the page will display the corresponding outdoor unit, and then click the
picture of an outdoor unit, and it will display its operating status include ON/OFF state, operating
mode, fan state, indoor unit quantity, error protection, ammeter readings etc.
