Light Commercial R410A on-off DM17-01.01.08en

143

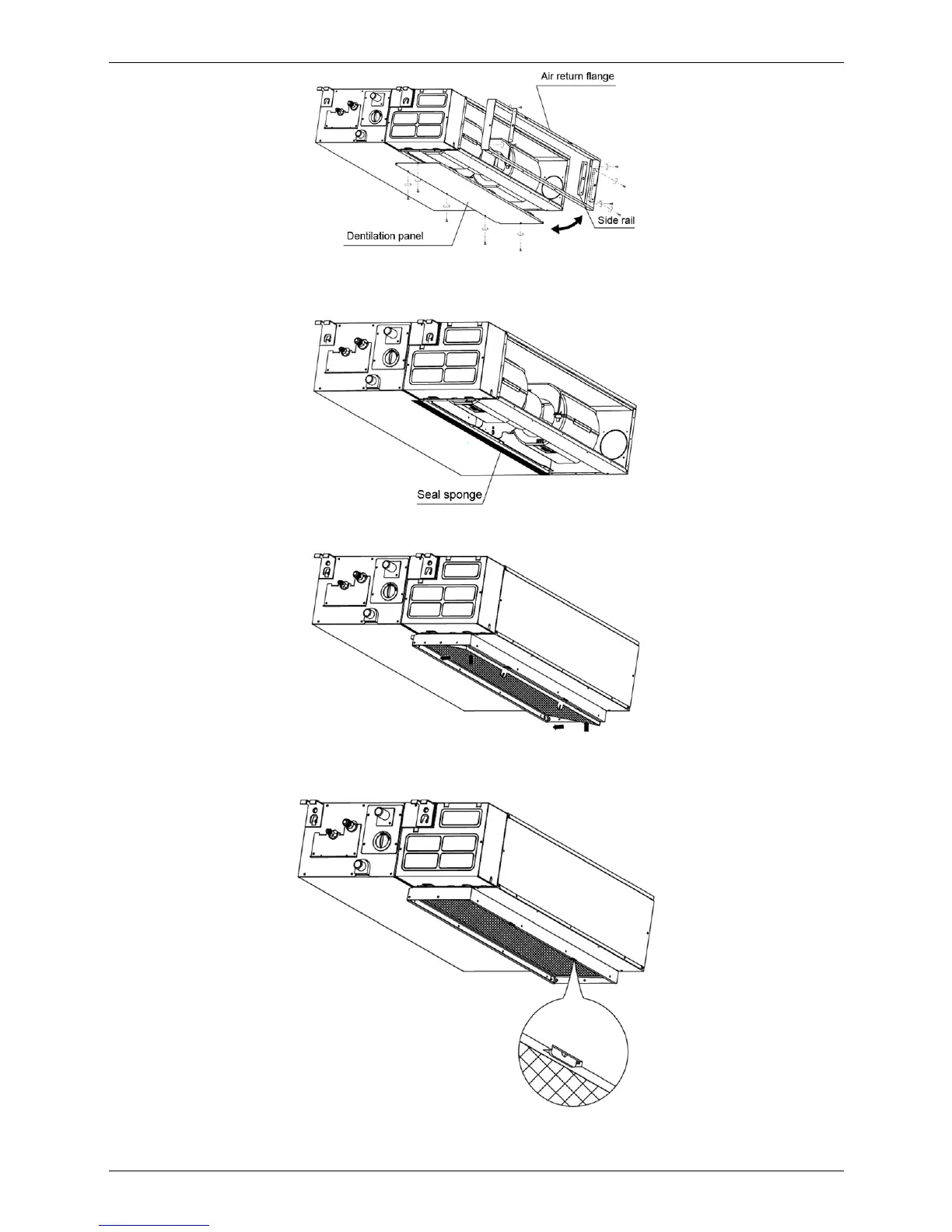

② Stick the attached seal sponge as per the indicating place in the following fig, and then change the

mounting positions of air return panel and air return flange .

③ When install the filter mesh, please plug it into flange inclined from air return opening, and then push up.

④ The installation has finish, upon filter mesh which fixing blocks have been insert to the flange positional

holes.
