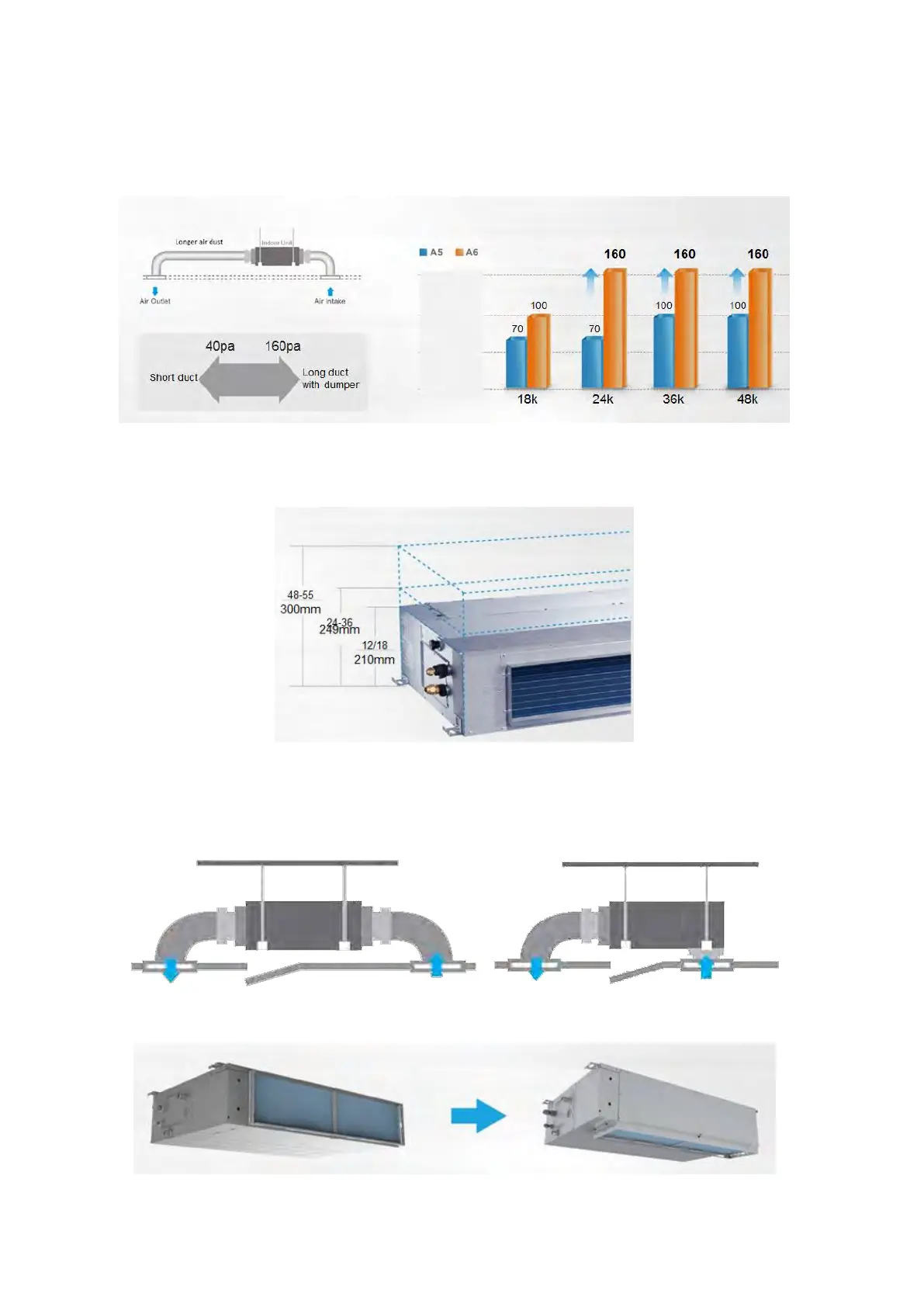

2.3.4 A6 Duct Units
2.3.4.1. Higher Static Pressure
 As a ducted air conditioner with medium static pressure, it has the widest static pressure range.
 The maximum static pressure reaches 160Pa
2.3.4.2. Slim Design
 The industry Lowest height is designed to be fitted into tight roof spaces.
*18K unit - 210mm,24K/36K unit - 249mm,48K unit -300mm
2.3.4.3.Flexible Air Intake Way (Bottom side or Rear side)
 The frame size of air inlet in rear and bottom is the same. It’s very easy to switch to match different
application.
2.3.4.4. Communication wire connection
Air intake from rear (Standard)
Air intake from bottom (Optional)

Midea MCA3U-09HRFN1-M(C) Specifications

General

Brand	Midea
Model	MCA3U-09HRFN1-M(C)
Category	Air Conditioner
Language	English
