draining
pump

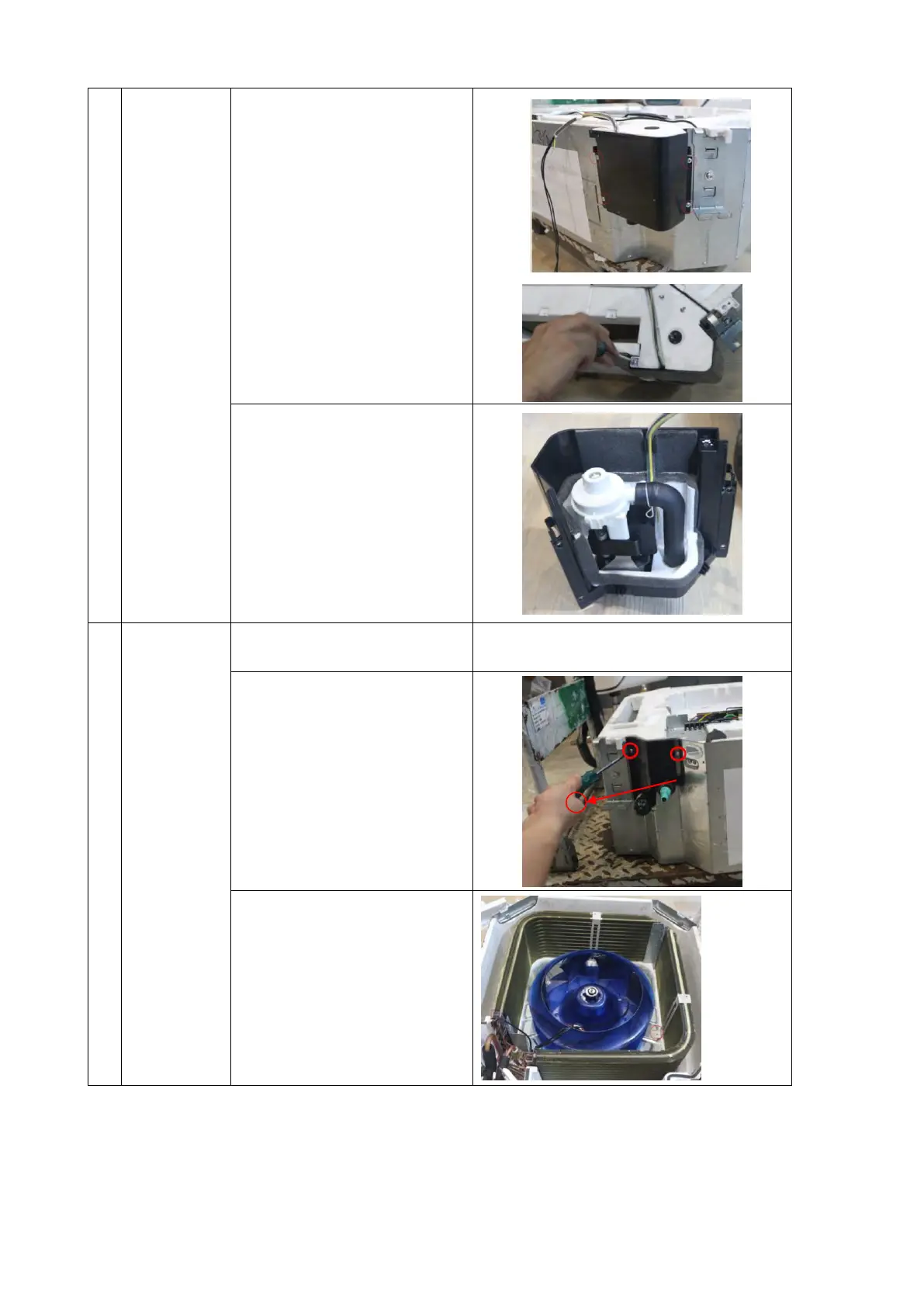

2) Remove 5 screws fixing
external water pump box
assembly
3) Remove the water pump
box assembly.
8
Remove the
evaporator
1) Remove the water
collecting assembly
Repeat the operation of step 1~4 of
No.6
2) Remove the seal board of
evaporator(2 screws)
3) Remove the evaporator
fixing board(4 screws)
