Midea MCA3U-09HRFN1-M(C)

266

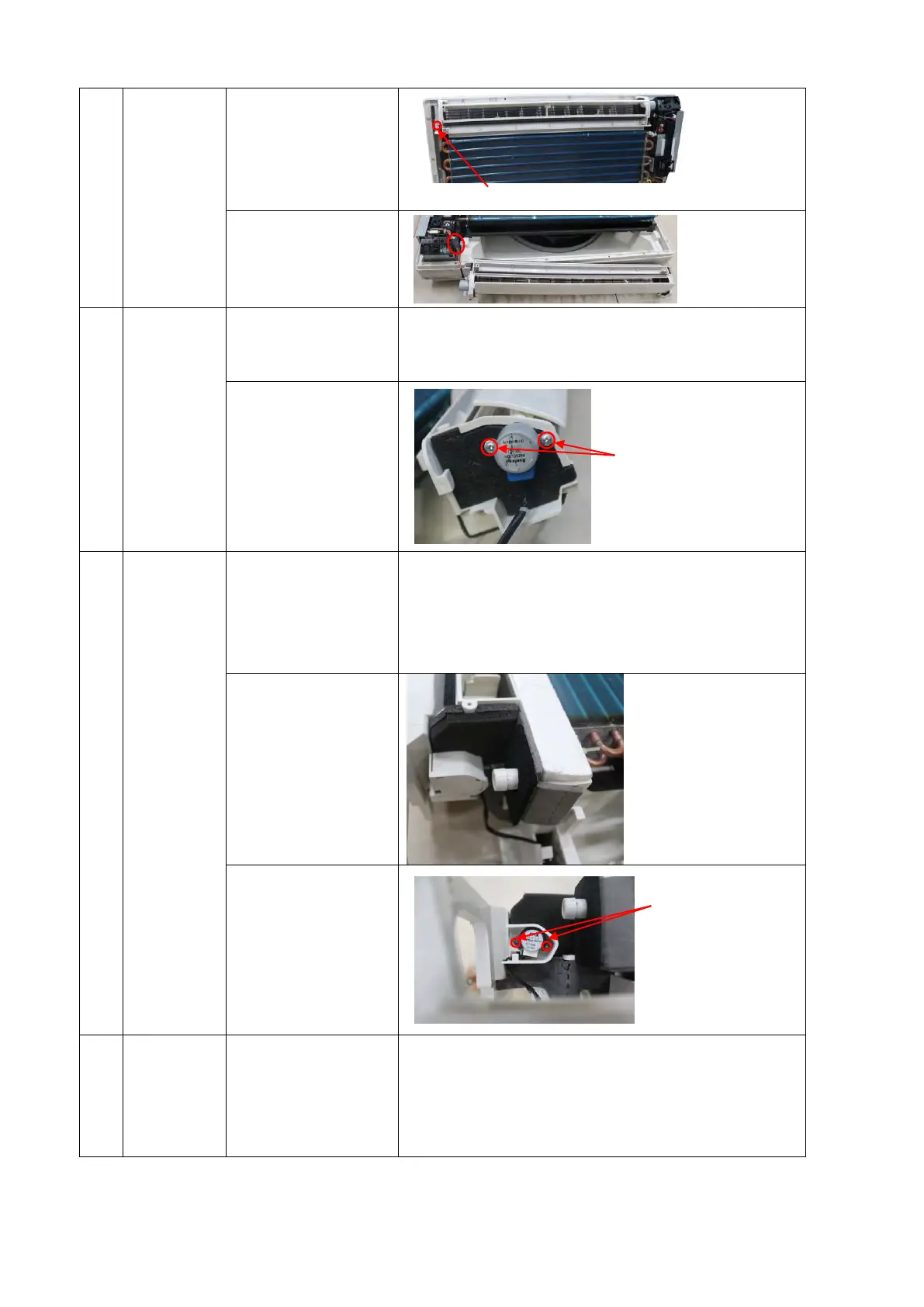

2) Remove the 1
fixing screw to
remove air
outlet grille
assembly
3) Disconnect
louver motor
wire
8
Remove
the louver
motor of
air outlet
assembly
1) Remove the air
outlet grille
assembly
Repeat the operation of No.7 to remove the air outlet grille
assembly
2) Screw off the
screws to
remove the
motor
9
Remove
the louver
motor of
the water
collector
1) Remove the
front panel
assembly and
the panel frame
assembly
Repeat the operation of step1, step2 and step3 of No 2.
2) Remove the
cover of louver
motor
3) Screw off the
screws to
remove the
motor
10
Remove
the water
collector
1) Remove the
front panel
assembly and
the panel frame
assembly
Repeat the operation of step1, step2 and step3 of No 2.
1 screw
2 screws
2 screws
