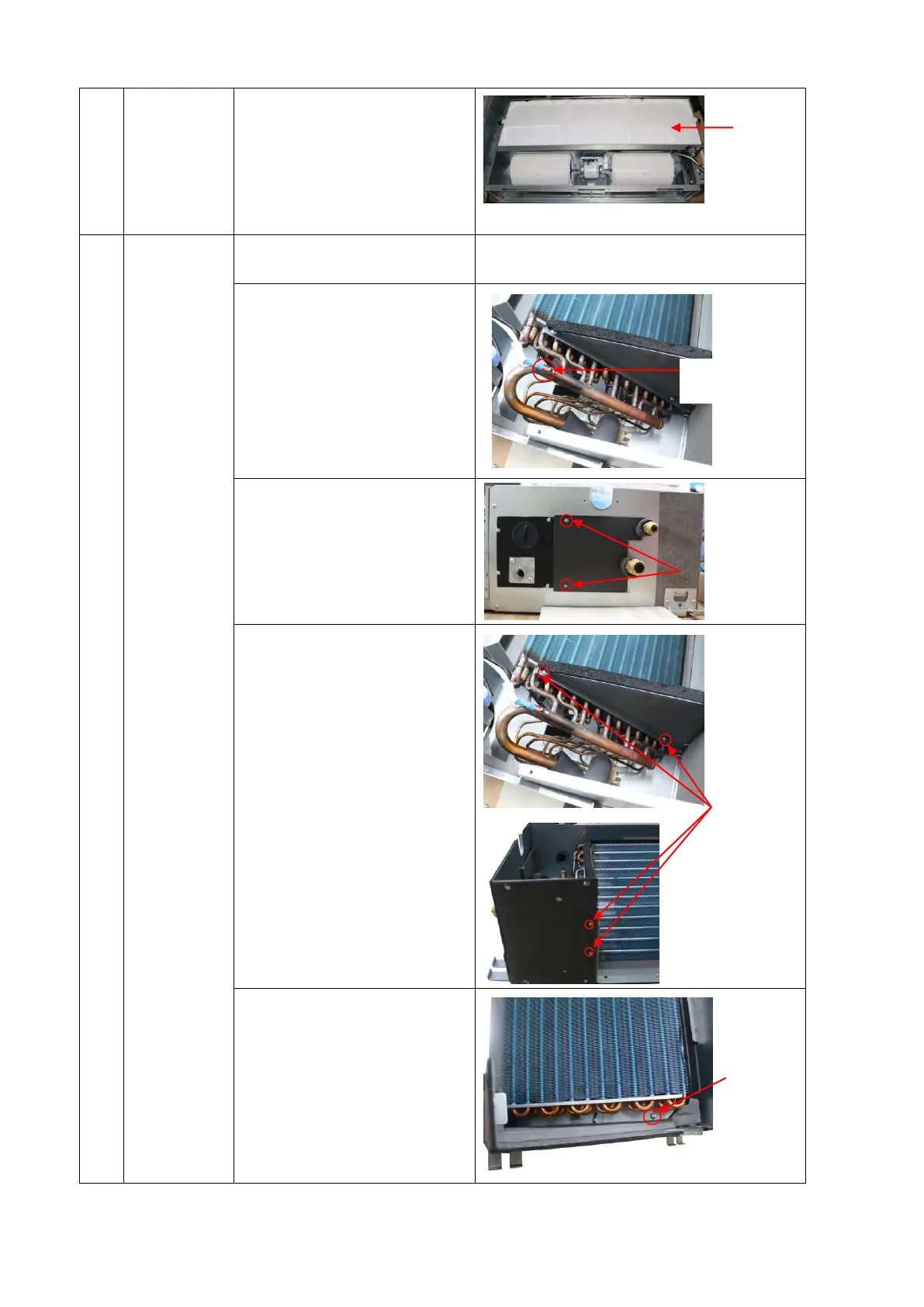

Remove the
evaporator
1) Remove the water
collector
Repeat the operation of No.6
2) Remove the evaporator
sensor
3) Remove the pipe clamp
board
4) Remove the evaporator
support board
5) Screw off the fixing
screws to remove the
evaporator
** means there is no this part in some models.
Evaporator
sensor
2 screws
4 screws
1 screw
Water
collector
assembly
