Midea MCA3U-09HRFN1-M(C)

274

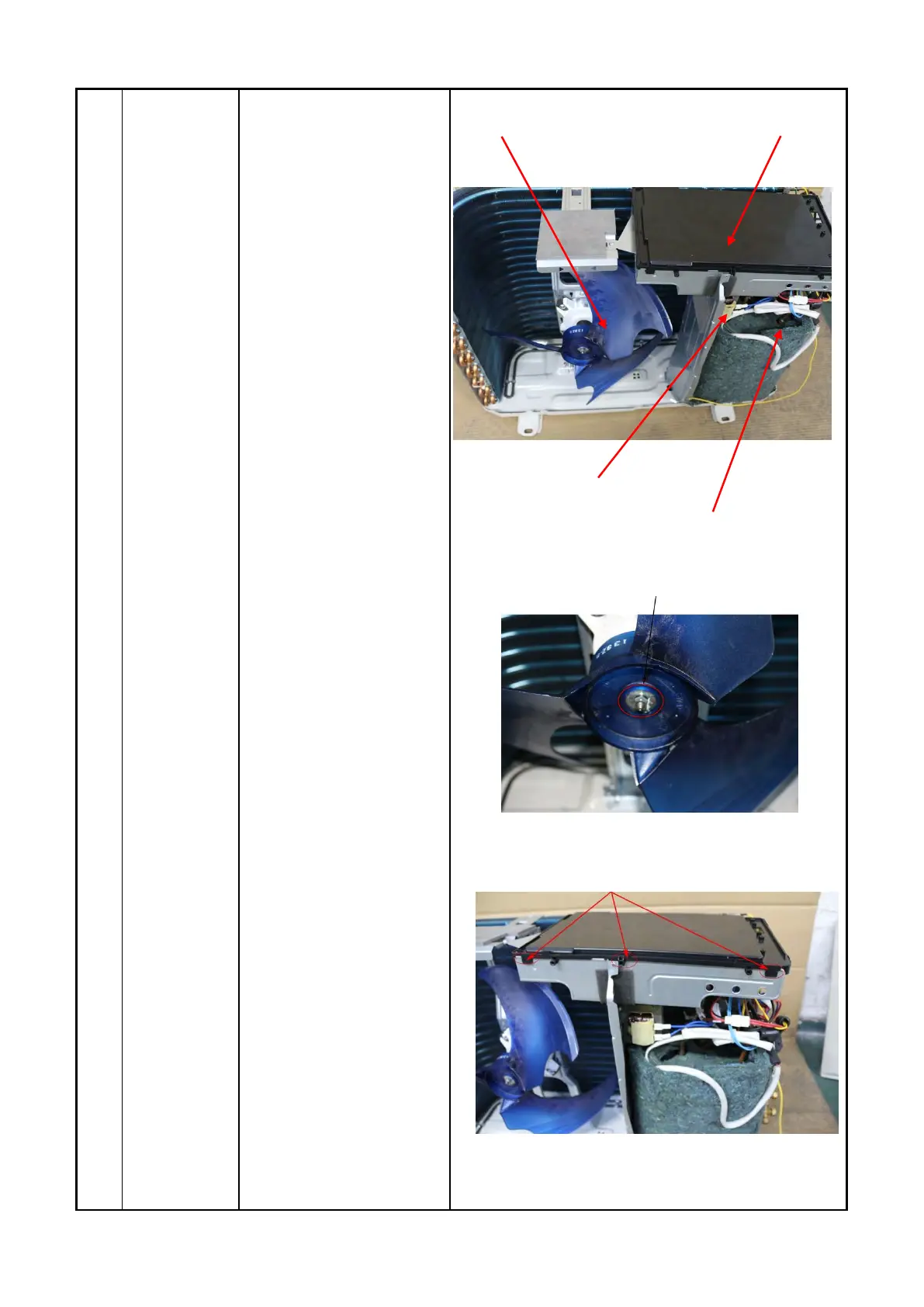

1)After remove the panel
plate following procedure 1
2) Remove the nut fixing
the fan,and remove the
fan.
3) Unfix the hooks and
then open the electronic
control box cover.
Fan ass’y
○
2
○
3
Compressor and liquid-gas separator
Electronic control box
reactor
