Midea MCA3U-09HRFN1-M(C)

278
4
Four-way
valve

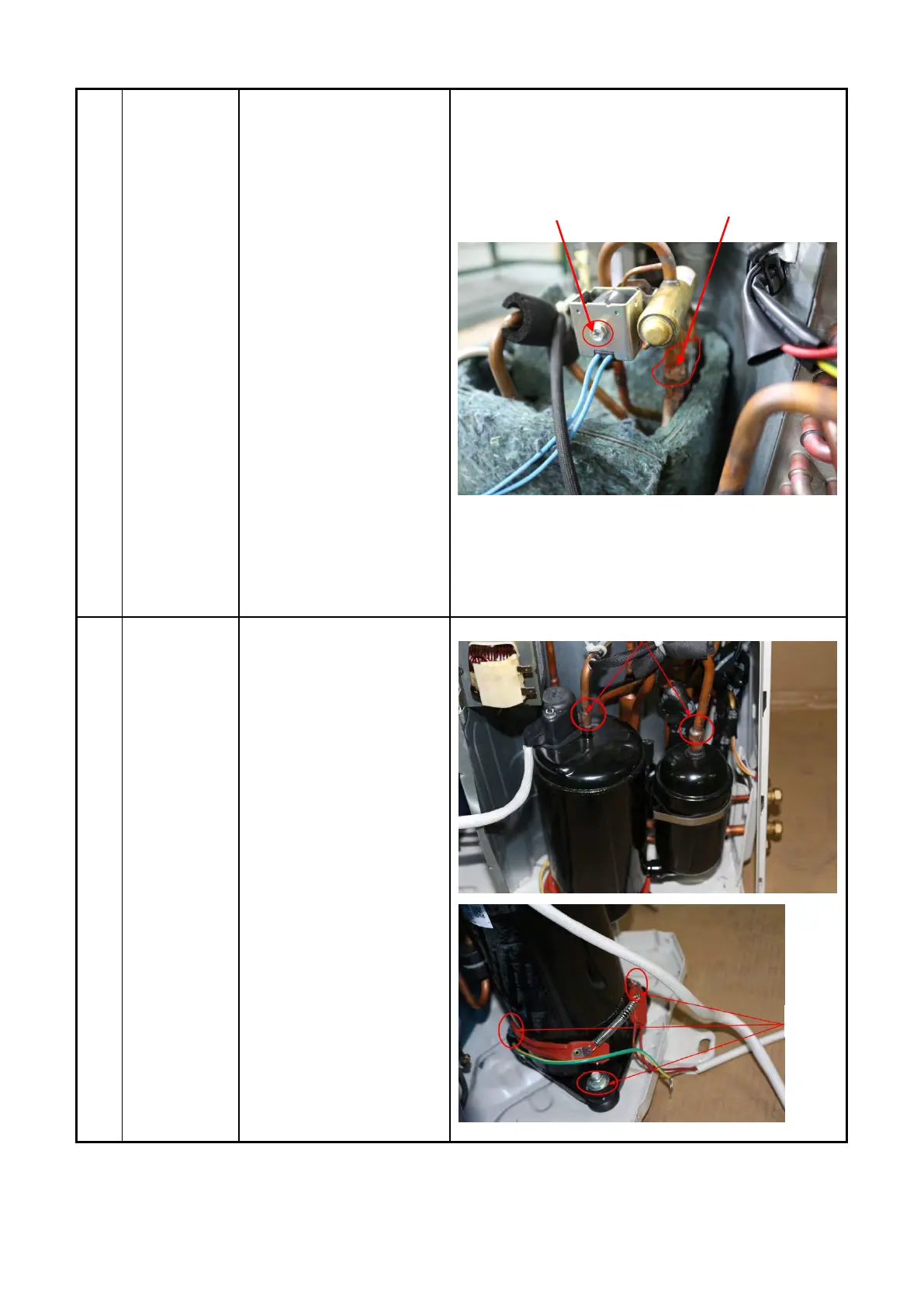

How to remove the
four-way valve.
1) Perform
work of item
1,2,3.
2) Recover
refrigerant from the
refrigerant circuit.
3) Remove the
screw of the coil and then
remove the coil.
4) Detach the
welded parts of four-way
valve and pipe.
5) Then the
four-way valve ass’y can
be removed
The picture of four-way valve may be different from
the one on your side.
5
Compressor
How to remove the
compressor.
1) After perform work of
item1,2,3.
2) Remove the
discharge pipe and suction
pipe with a burner.
3) Remove the hex nuts
and washers fixing the
compressor on bottom
plate.
4) Lift the compressor
from the base pan
assembly.
○
