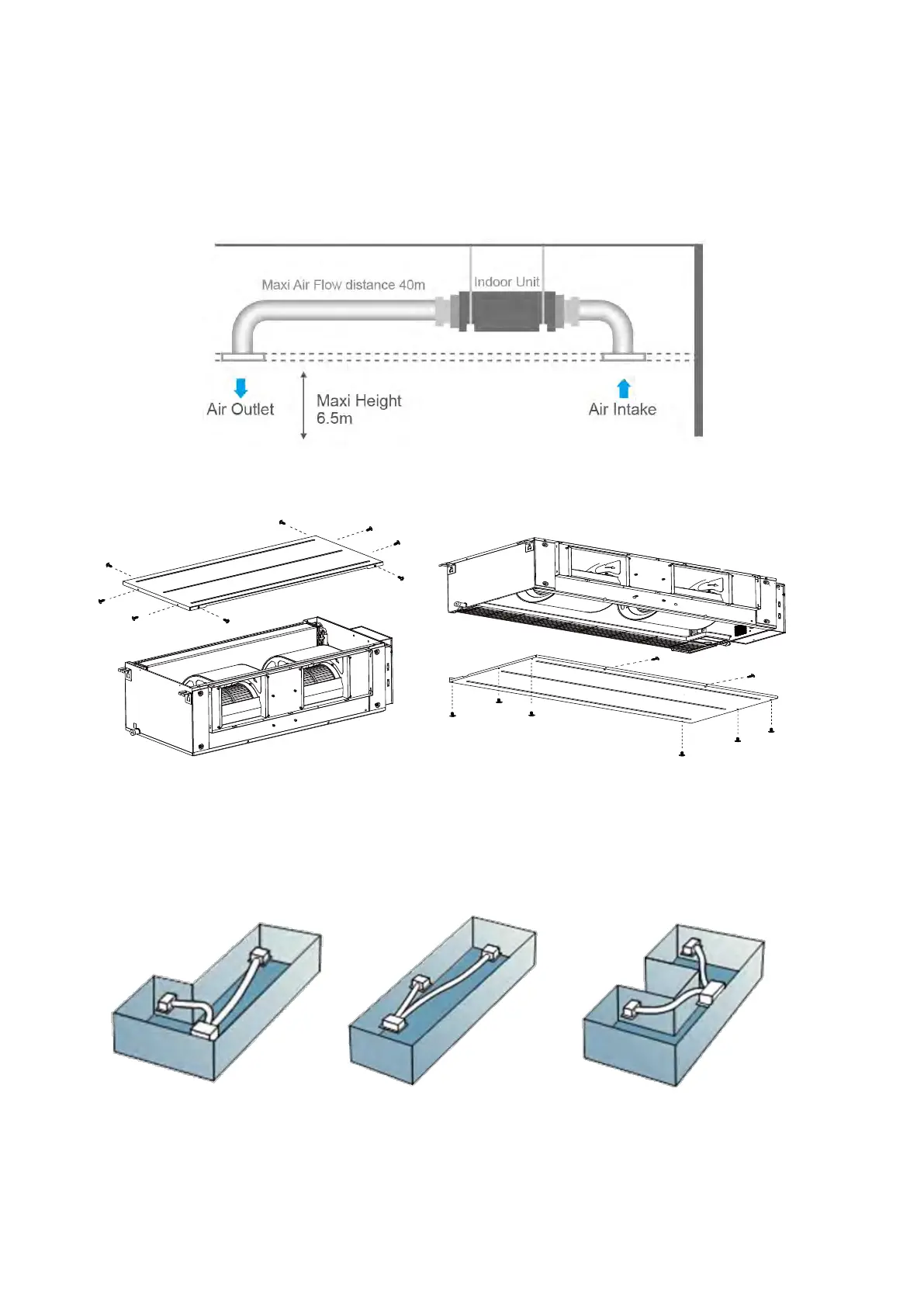

2.3.5 HESP DUCT Units
2.3.5.1 High static pressure design
 Max static pressure of indoor unit is 200Pa.
 The longest distance of air supply is 40m, the max height of air supply is 6.5m.
 Specially recommended for spacious and large rooms like large stores and factories.
2.3.5.2 Easy maintenance
 The unit can be opened from top or bottom.
 The air outlet flange is isolated from either top panel or base panel, which makes the maintenance
much easier when connecting duct.
2.3.5.3 Flexible Installation
 Different solutions for any shape room by using kinds of air distribution ducts.
L-shaped area
Areas far apart
Y-shaped area
