Midea MCA3U-09HRFN1-M(C)

283
4
Four-way
valve

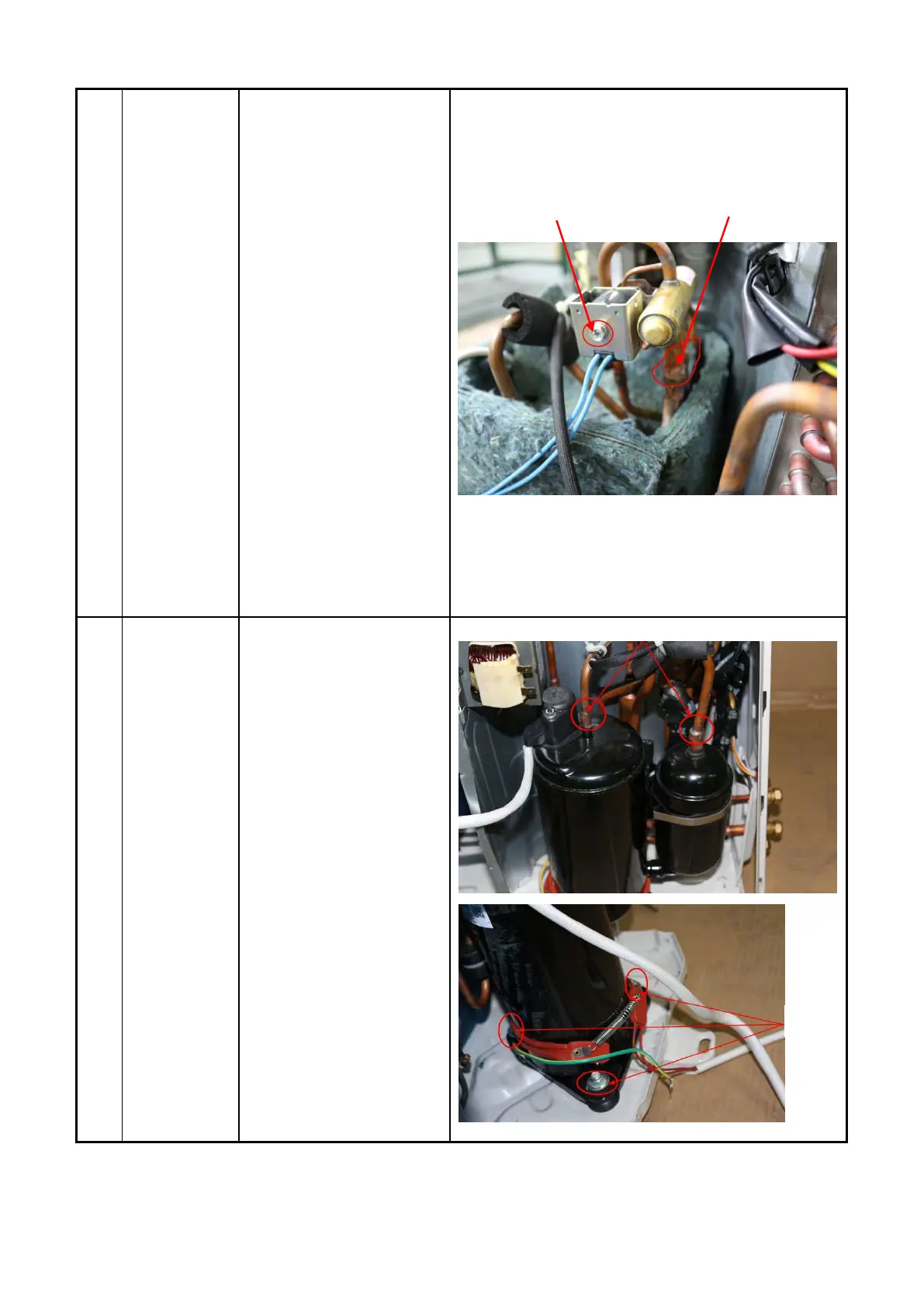

How to remove the
four-way valve.
1) Perform work of item
1,2,3.
2) Recover refrigerant
from the refrigerant circuit.
3) Remove the screw of
the coil and then remove
the coil.
4) Detach the welded
parts of four-way valve and
pipe.
5) Then the four-way
valve ass’y can be
removed
The picture of four-way valve may be different from
the one on your side.
5
Compressor
How to remove the
compressor.
1) After perform work of
item1,2,3.
2) Remove the
discharge pipe and suction
pipe with a burner.
3) Remove the hex nuts
and washers fixing the
compressor on bottom
plate.
4) Lift the compressor
from the base pan
assembly.
○
2
③
○
3
○
4
