Midea MCA3U-09HRFN1-M(C) User Manual

52
MTIU-09HWFN1-M, MTIU-12HWFN1-M, MTIU-18HWFN1-M, MTIU-24HWFN1-M, MTI-36HWFN1-M ,
MTI-48HWFN1-M, MHG-60HWFN1-MW

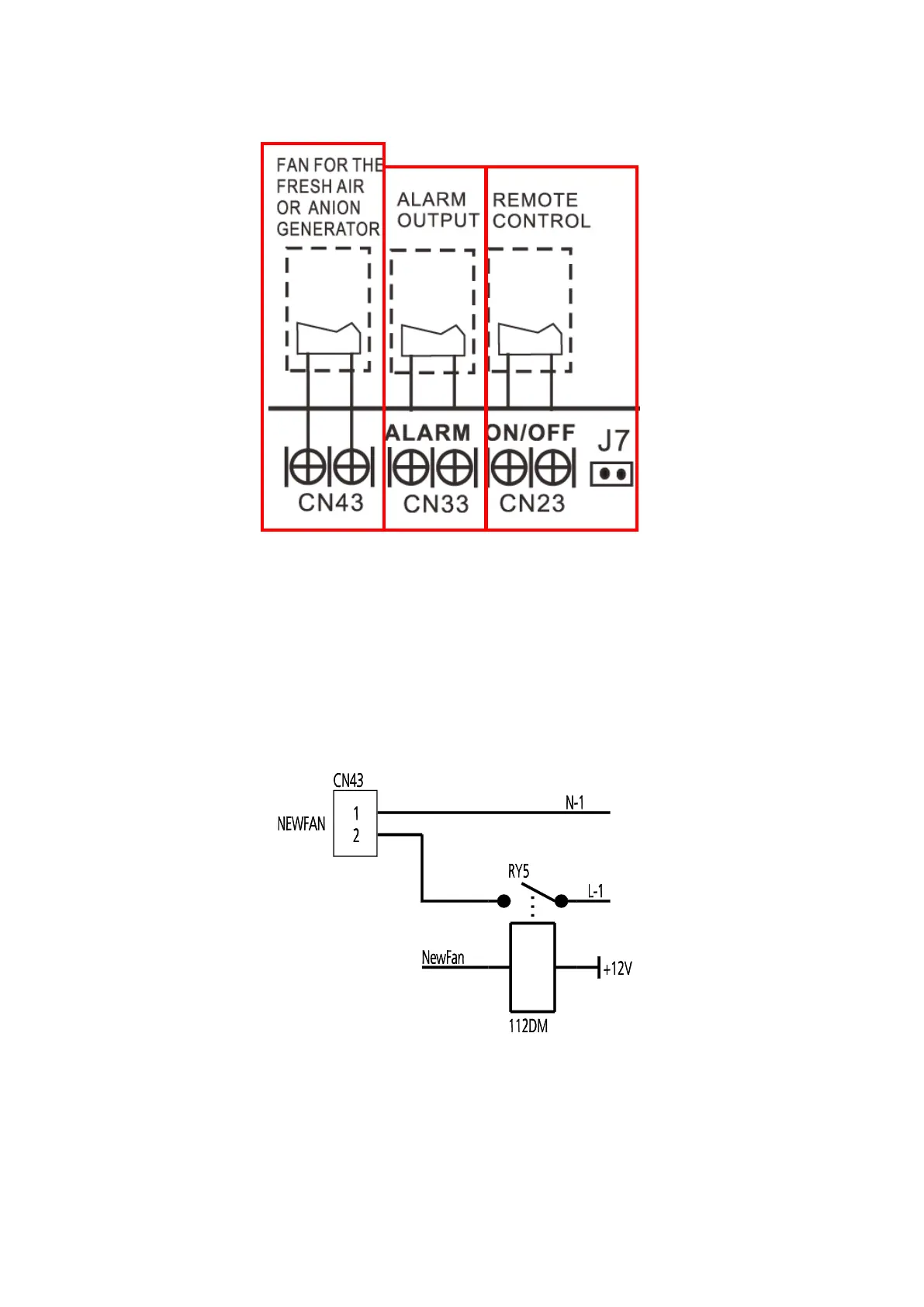

A. For new fresh motor terminal port (also for Anion generator) CN43:
1. Connect the fan motor to the port, no need care L/N of the motor;
2. The output voltage is the power supply;
3. The fresh motor cannot excess 200W or 1A, follow the smaller one;
4. The new fresh motor will be worked when the indoor fan motor work; when the indoor fan motor
stops, the new fresh motor would be stopped;
5. When the unit enter force cooling mode or capacity testing mode, the fresh motor isn’t work.
A
B
C

Midea MCA3U-09HRFN1-M(C) Specifications

General

Brand	Midea
Model	MCA3U-09HRFN1-M(C)
Category	Air Conditioner
Language	English
