90
8
DC-FAN
CN32
connect to DC fan
9
S-E
CN31
S: connect to indoor unit communication(pin1-pin2: 24VDC Pulse wave;
pin2-pin3: 208-230V AC input)
S-D
CN5
S-C(mono)
CN34
S-B
CN2
S-A
CN4
10
HEAT_D
CN8
connect to chassis heater, 208-230V AC when is ON
CN20
11
HEAT_Y
CN21
connect to compressor heater, 208-230V AC when is ON
CN36
12
4-WAY
CN38
connect to 4 way valve, 208-230V AC when is ON.

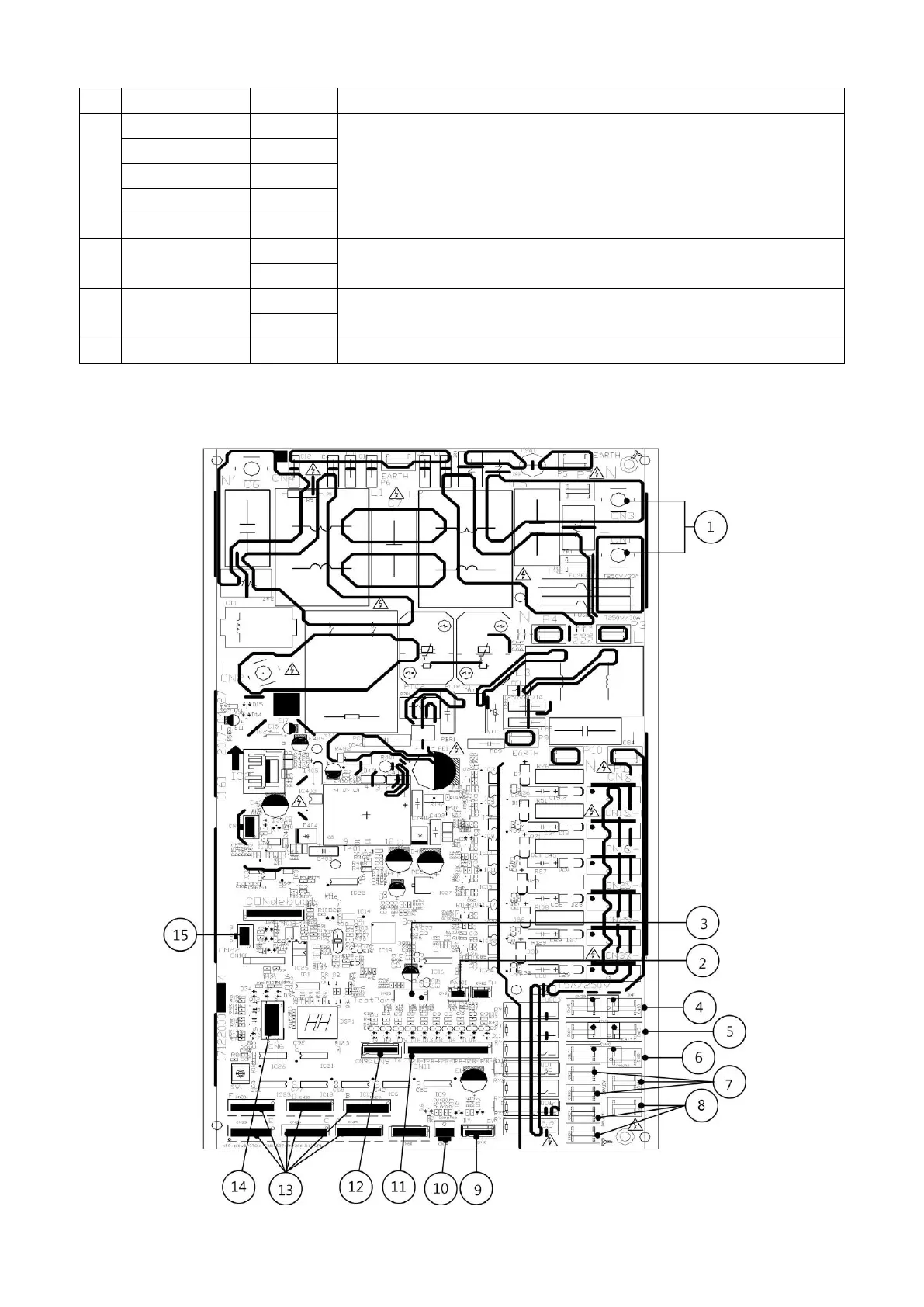

PCB board of MOE30U-36HFN1-M-[X], MOE30U-48HFN1-M, MOE30U-48HFN1-MP0,
MOE30U-60HFN1-M
