Midea MCA3U-09HRFN1-M(C)

93

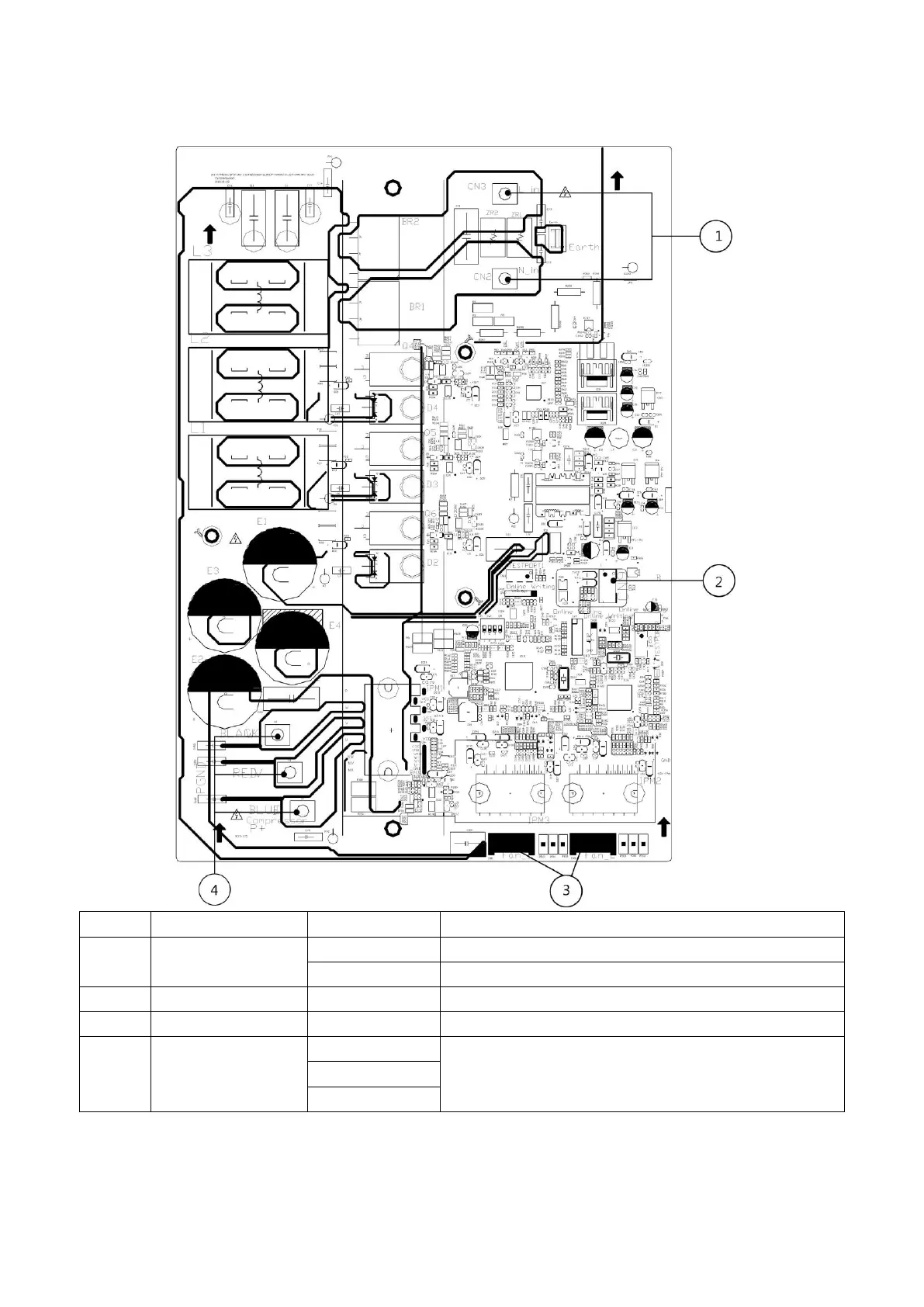

IPM board of MOE30U-48HFN1-M, MOE30U-48HFN1-MP0, MOE30U-60HFN1-M,
MOE30U-36HFN1-M-[X], MOE30U-48HFN1-M-[X]
No.
Name
CN#
Meaning
1
Power Supply
CN3
connect to main board L-Out
CN2
connect to main board N-Out
2
CN9
CN9
Connect to main PCB CN6
3
FAN_DC
FAN_1/FAN_2
connect to outdoor DC fan 1& DC fan 2
4
CN_COMP
U1
Connect to compressor
V1
W1
