9. Dimensions

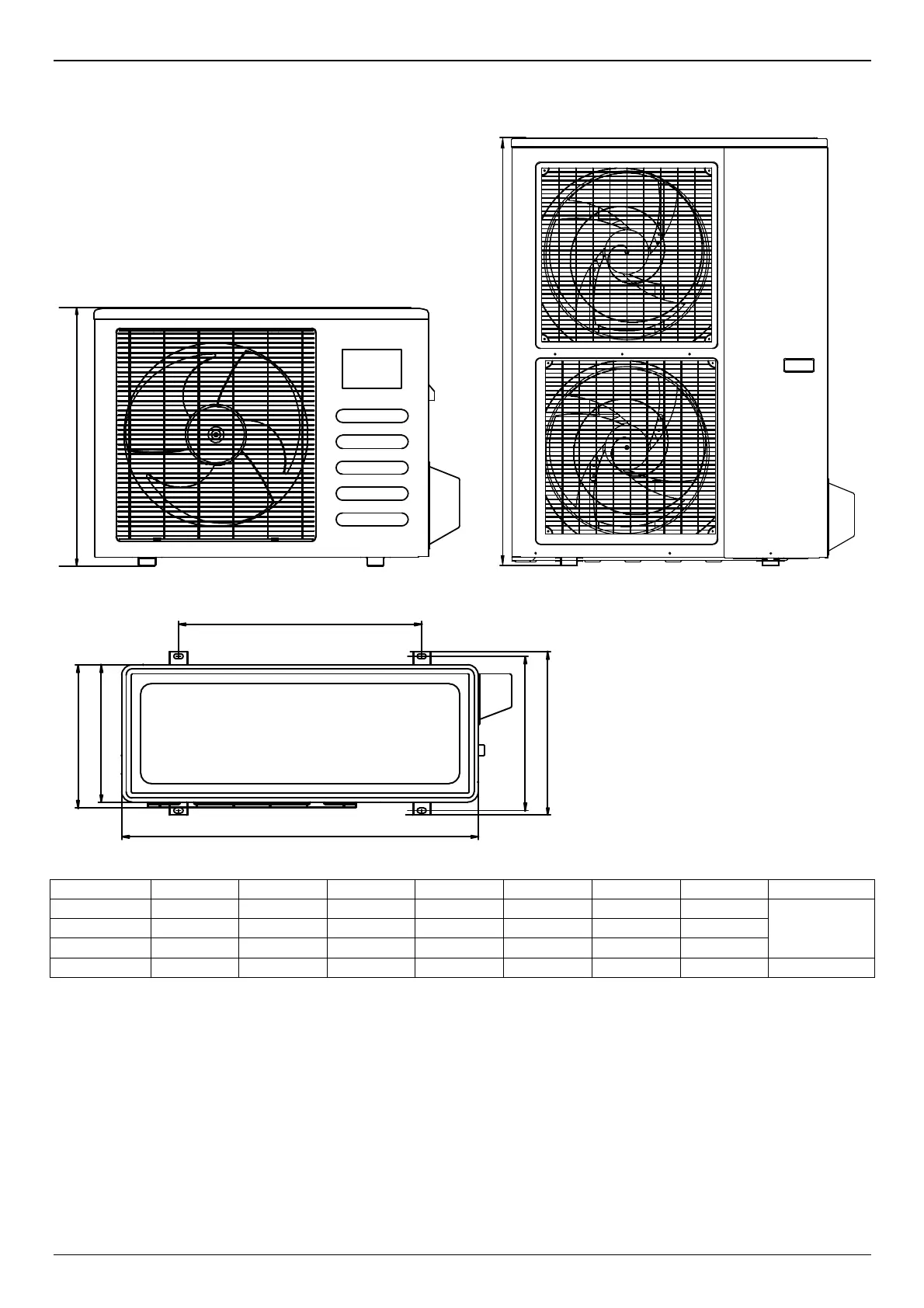

9.1 Dimensions of side discharge units
Fig. 1-1 Fig. 1-2
Fig. 1-3
Table 1 (mm)
Model L W H B C D E Remark
7 kW 895 313 862 590 333 355 302
Fig 1-1
10 kW 990 354 966 624 366 396 340
14 kW 990 354 966 624 366 396 340
16 kW 900 340 1167 590 378 400 330 Fig 1-2
H
H
L
B
E
W
C D
