R407C CCU Technical Manual MCAC-UTSM-2012-05
60
3. Unit location
3.1 When installing the unit, leave a space for maintenance shown in the following figure. Install the power supply
at the side of the outdoor unit.
3.2 Ensure enough space for installation and maintenance.

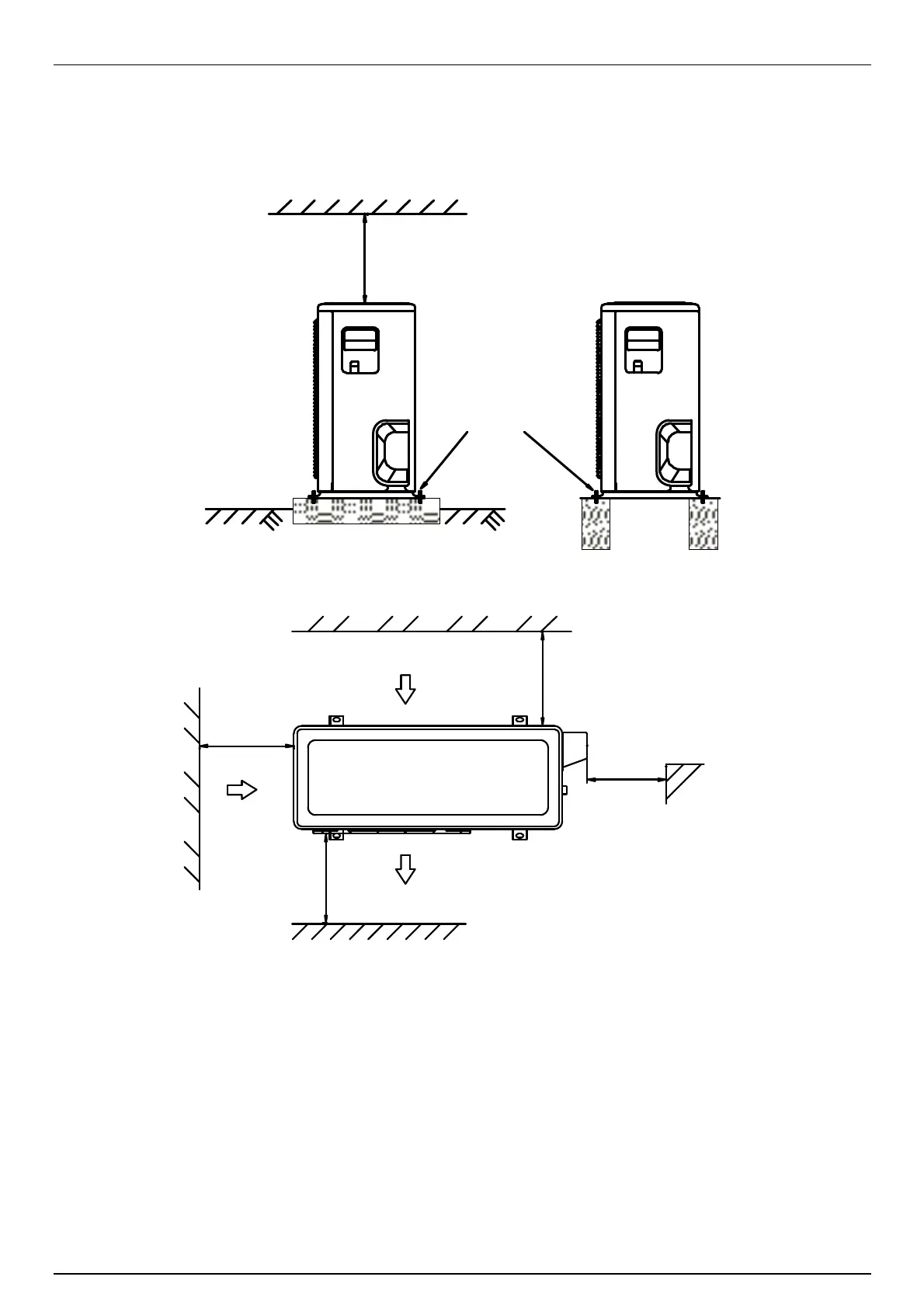

Side discharge units (Fig 2-1 and Fig 2-2):
Fig 2-1
Fig 2-2
≥600mm
Fix with bolt
(Wall or obstacle)
≥300mm
≥300mm
≥2000mm
≥600mm
Air inlet
Air inlet
N
M
P
Air outlet
Maintain channel
