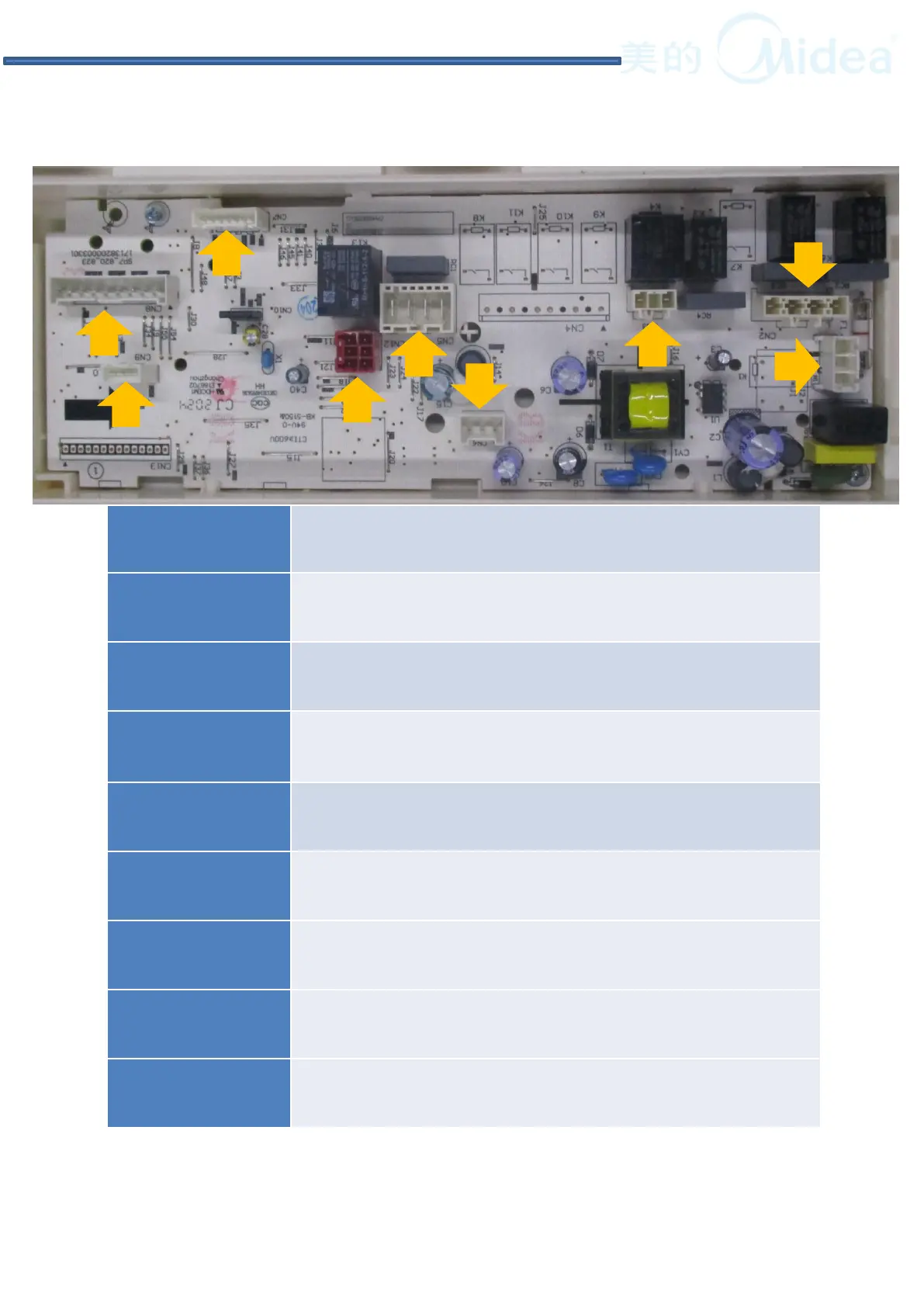

Circuit diagram of dryer
27
P1
Water level sensor +front NTC + rear NTC
P2
Motor communication(BLDC motor model)
P3
PCB communication
P4
Door switch
P5
Compressor
P6
Humidity sensor
P7
Motor
P8
Cooling fan and drain pump
P9
Live wire
Wiring connection figure
5 Troubleshooting
P9
P8
P7
P3
P4
P5
P6
P1
P2
