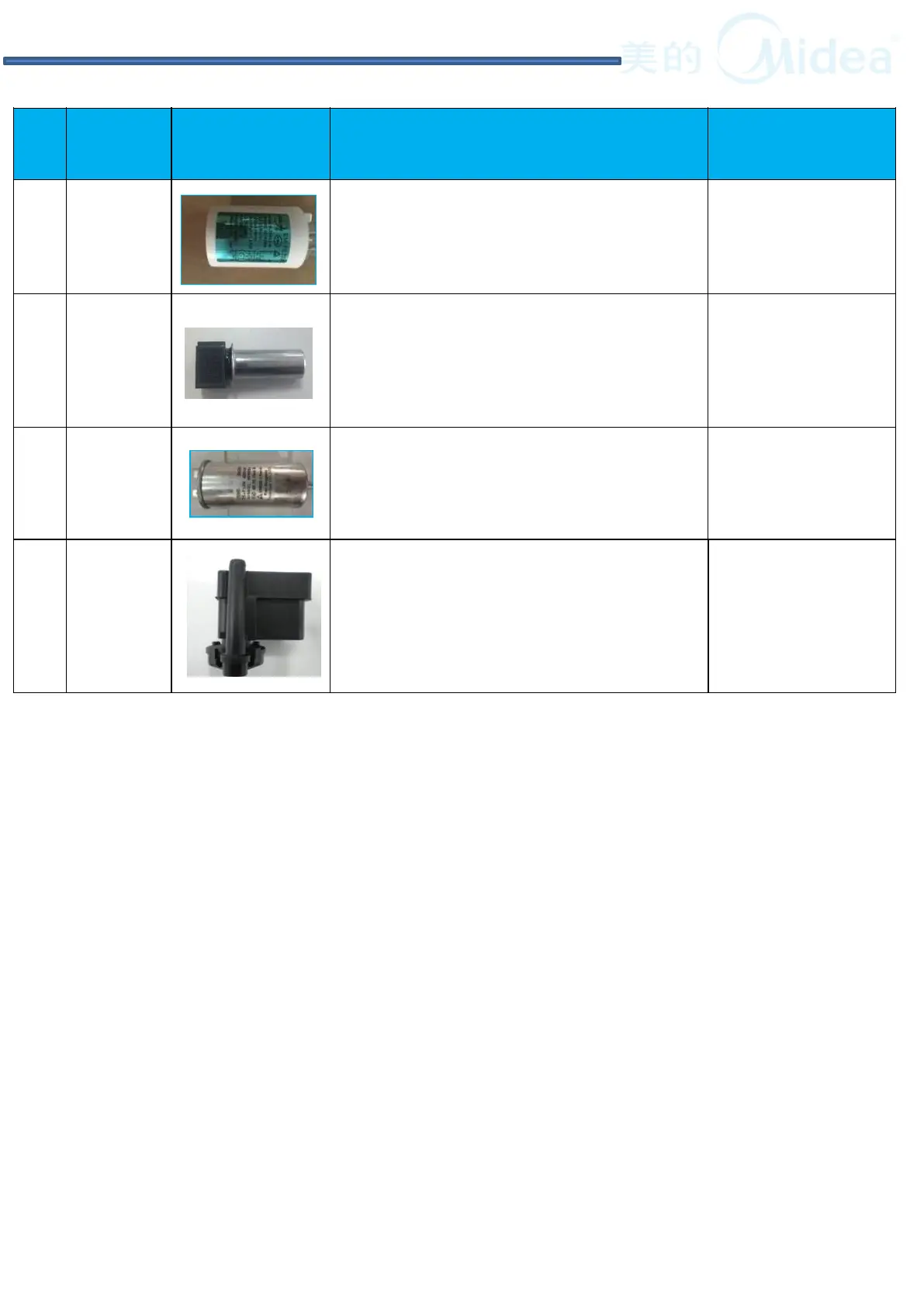

Before repairing, use multimeter to judge circuit stand of fail
.
6 Check Point of Electronic Components
40
No
Part Picture Test Description parameters
1
Electric
Filter
With a
multimeter to test the
connection at both ends of the N and L.
250VAC 50/60HZ,
12A
2 NTC
Measured across the
NTC with a
multimeter
, the resistance line with RT
table.
10℃ 9.6
±5%KΩ
15℃ 7.6
±5%KΩ
25℃ 4.8
±5%KΩ
30℃ 3.9
±5%KΩ
3
Capacitor
Tested capacitance value should be 16
±
5%
uF.
16μF/450V
4
Drain
Pump
Measure
the ends of the pump with a
multimeter
. 800× (1 ± 10%) Ω (20 ℃)
220-240V, 60HZ,
0.8m, 4L/min, 13W
