38

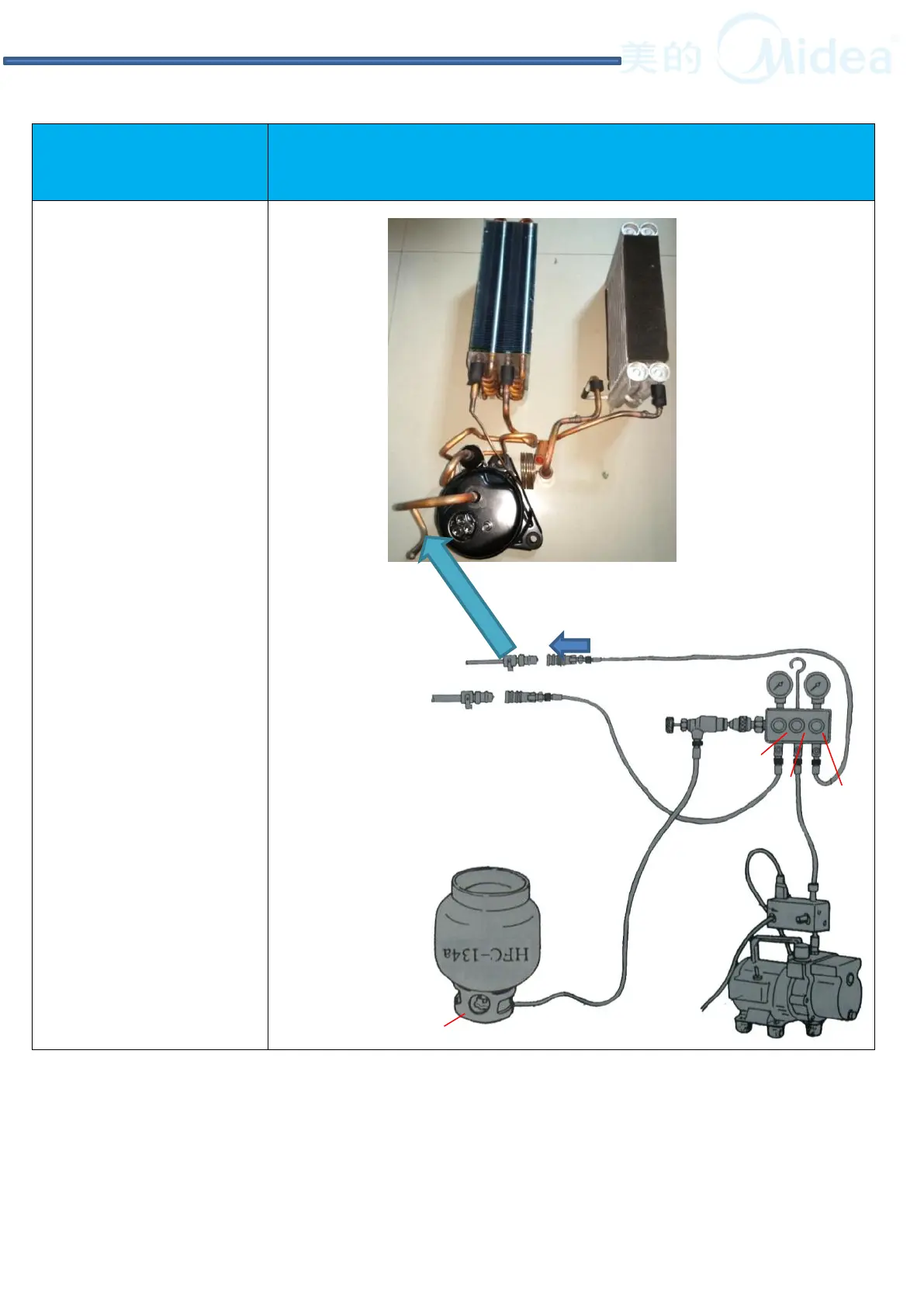

Operation step Picture
Vacuum pumping
1,
Connect high pressure
connector to the charge
pipe(φ6mm),
2, Connect the connector
to the plug,
3, Close V2 and V5 Valves,
open V1,V3, andV4.
4, Start the pump.
Vacuum pumping time is
not less than 60 minutes.
Plug
Pump
Pressure gage
V1
charge pipe
V2
V3
V4
V5
Refrigerant
tank
High pressure
connector
