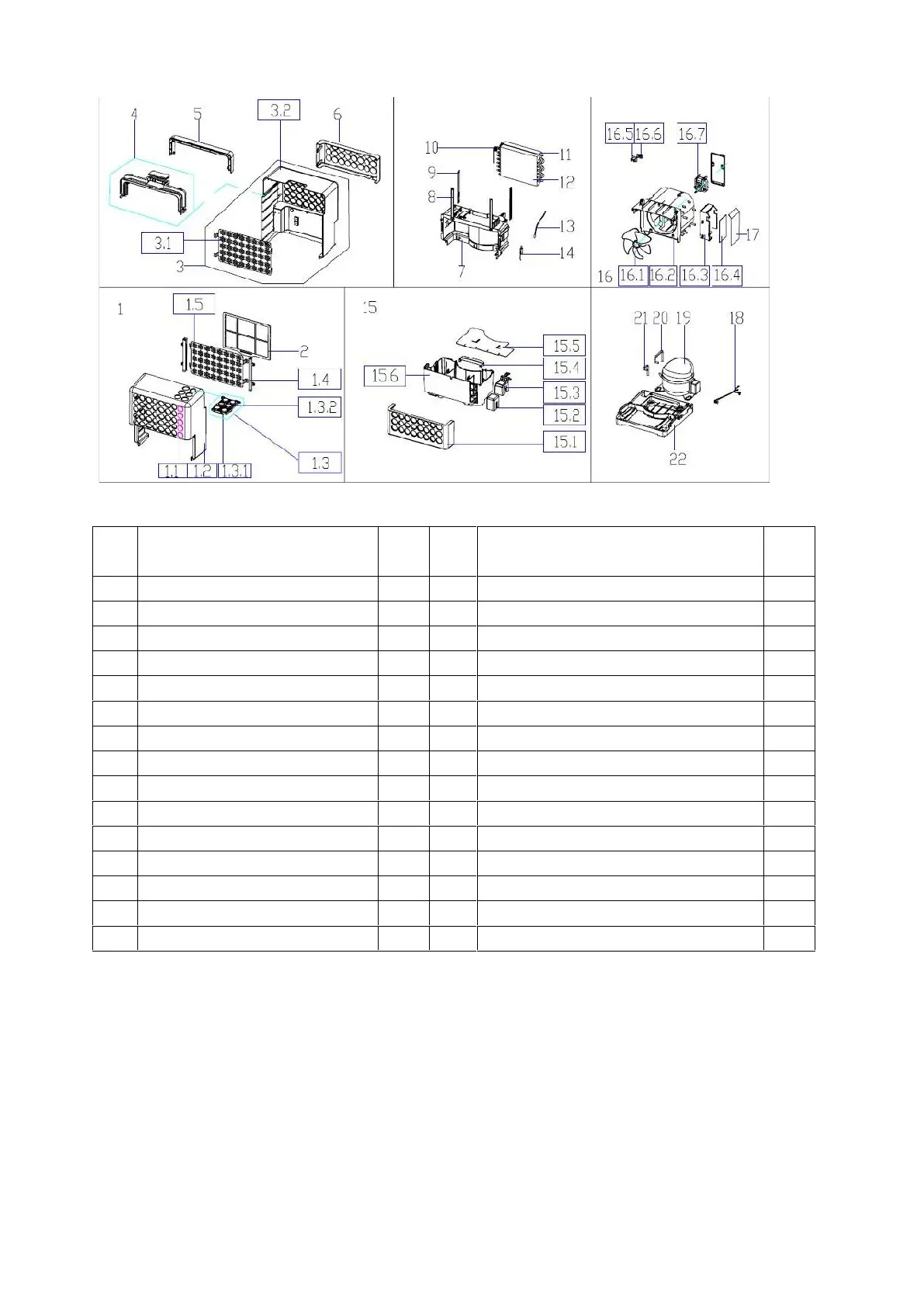

(6). EU-CFZ0.4BD/N3-T2(A3)(MDT2-10DEN3)
Part list:
No.
Part Name
Qty
No.
Part Name
Qty
1
water tank assembly
1
6
Chassis assembly
1
1.1
water tank assembly
1
7
Evaporator
1
1.2
Dobber
1
8
Condenser
1
1.3
Cover for water tank
1
9
Water collector
1
2
Front panel assembly
1
9.1
Micro Switch
1
2.1
Front panel
1
9.2
Water drain pan
1
2.2
Filter guide I
1
10
Compressor
1
2.3
Filter
1
11
Display box assembly
1
2.4
Filter guide II
1
11.1
Control panel
1
3
Exhaust scroll assembly
1
11.2
Display board assembly
1
3.1
Exhaust scroll
1
12
Handle
1
3.2
Propeller fan
1
13
Drain stopper
1
3.3
Shaded pole motor
1
14
Rear panel
1
3.6
main control board assembly
1
15
Pipe Temperature Sensor assembly
1
5
E-part box cover
1
16
power cord assembly
1
