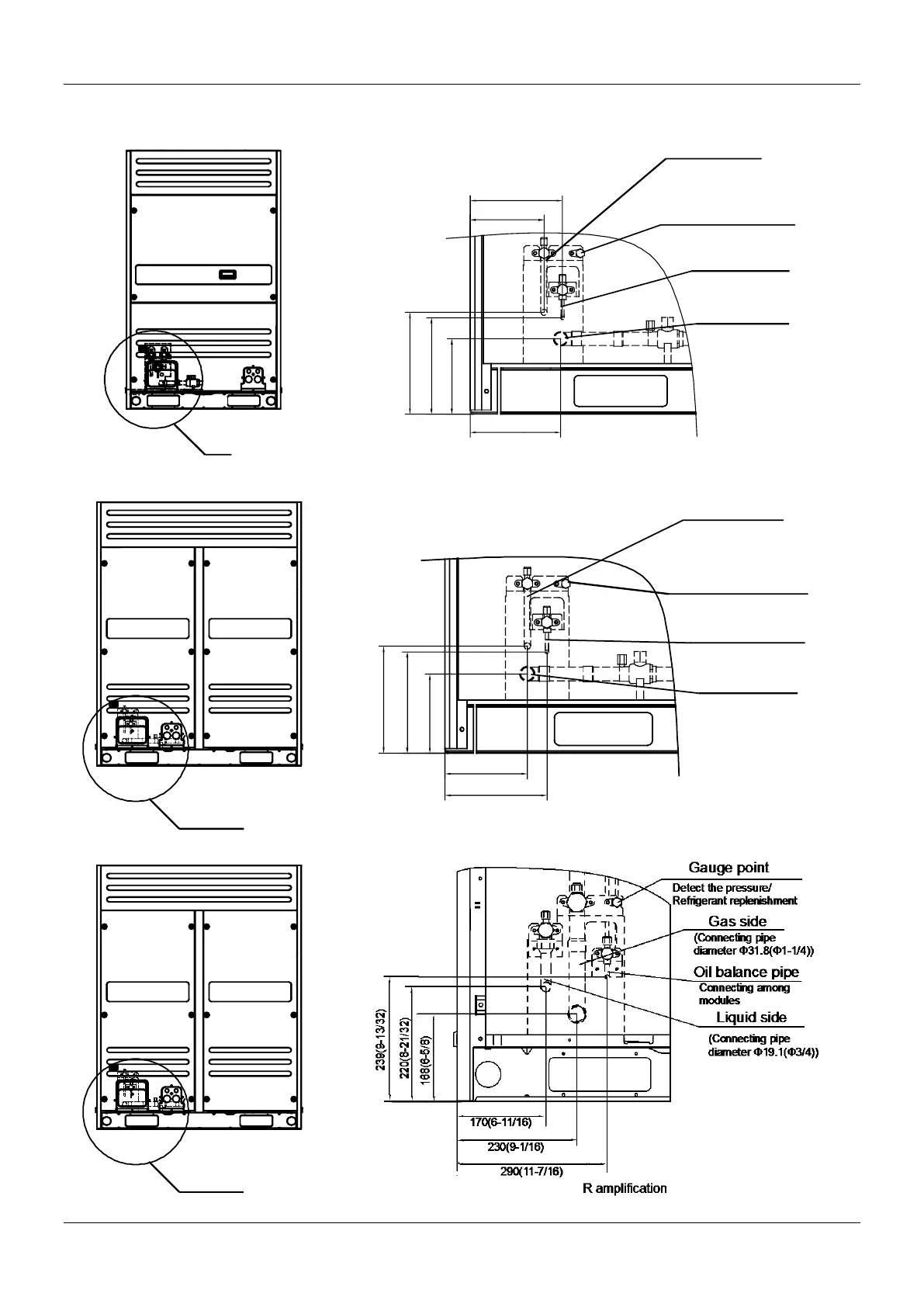

2.2 Section dimensions
8, 10HP, unit: mm (in.)
12, 14, 16HP, unit: mm (in.)
18HP, unit: mm (in.)
R
Liquid side
Gas side
Oil balance pipe
(Connecting pipe
diameter Φ12.7(Φ1/2))
Detect the pressure/
Refrigerant replenishment
(Connecting pipe
diameter Φ25.4(Φ1))
Connecting among
modules
R amplification
Gauge point
195(7-11/16)
159(6-1/4)
199(7-13/16)
168(6-5/8)
208(8-3/16)
220(8-21/32)
R
(Connecting pipe
diameter Φ15.9(Φ5/8))
(Connecting pipe
diameter Φ31.8(Φ1-1/4))
Connecting among
modules
Gauge point
R amplification
Liquid side
Gas side
Oil balance pipe
Detect the pressure/
Refrigerant replenishment
169(6-21/32)
209(8-1/4)
168(6-5/8)
208(8-3/16)
220(8-21/32)
R
