Midea MDV-280(10)W/D2DN1(B)

MCAC-VTSM-2015-09 R410A All DC Inverter V4+S Series 60Hz
Specifications & Performances 33

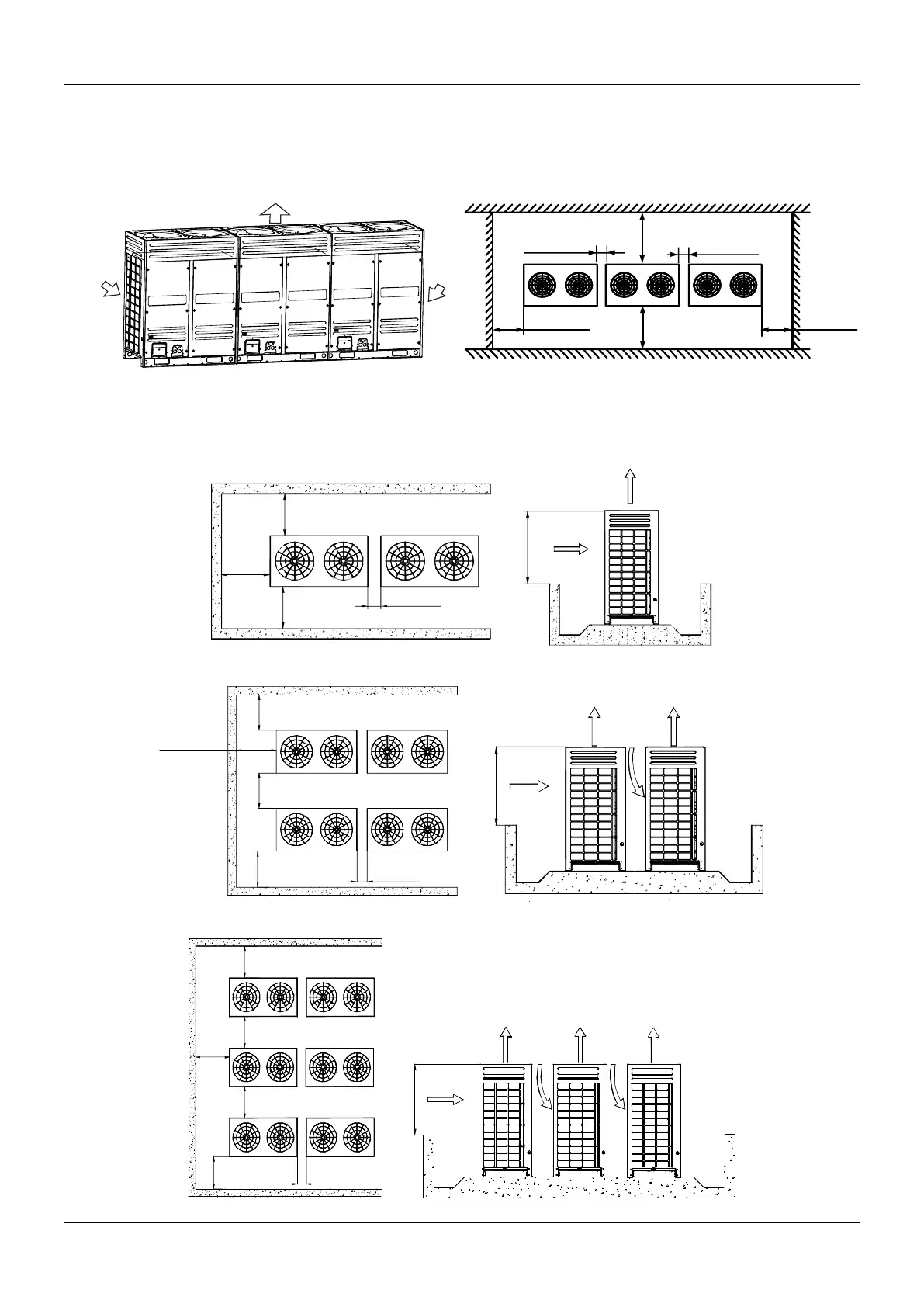

3. Service space
Ensure enough space for maintenance. Combined modules must be level.
 When installing the unit, leave enough space for maintenance.
Unit: mm (in.)
 When the outdoor unit is higher than the surrounding obstacle
Unit: mm (in.)
One row
Two rows
More than two rows
(Air-in ) (Air-in )
(Air-out )
Installation and maintenance surface
Top view of the outdoor unit
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8) >1000(39-3/8)
100~500
(3-15/16~19-11/16)
100~500
(3-15/16~19-11/16)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>100(4)
Front
Front
>800(31-1/2)
>800(31-1/2)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>100(4)
Front Front
Front Front
>800(31-1/2)
>800(31-1/2)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>100(4)
Front Front
Front Front
Front Front
>800(31-1/2)
>800(31-1/2)
