MCAC-VTSM-2015-09 R410A All DC Inverter V4+S Series 60Hz
Installation 85
If miscellaneous articles are piled around the outdoor unit, such articles must be 31-1/2inch(800mm) below
the top of the outdoor unit. The articles must be 31-1/2inch(800mm) below the top of the outdoor unit.
Otherwise, a mechanical exhaust device must be added.
Snow-proofing

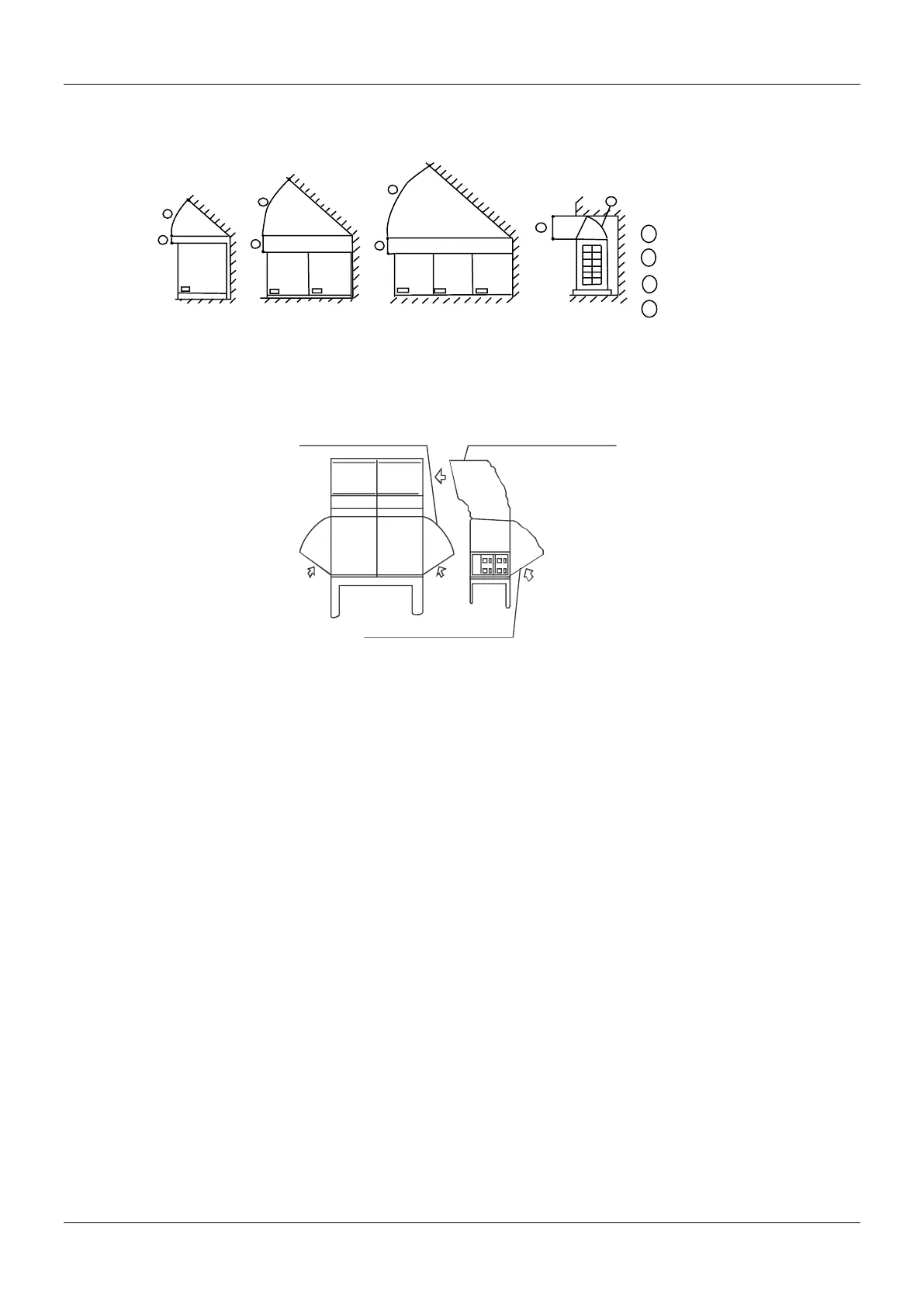

In snowy areas, accessories should be installed to prevent snow from entering the unit. (See the figure below)
(Defective facilities may cause malfunction.) Please lift the bracket higher and install snow shield on the air
inlet and air outlet.
A
B
C
D
>45°
>1000(39-3/8)
>300(11-7/8)
Airflow deflector
Front view
B
A
Side view
C
D
B
A
Front view
B
A
Front view
Snow shield for air outlet
Snow shield for air inlet
Snow shield for air inlet
