1 Display Panels
1.1 Types of Display Panel
Two types of display panel are used on VRF indoor units: digital display panels (the new style display panels) and
the four LED display panels (the old style display panels). Examples of the two styles are shown in Figures 3.1 and
3.2.

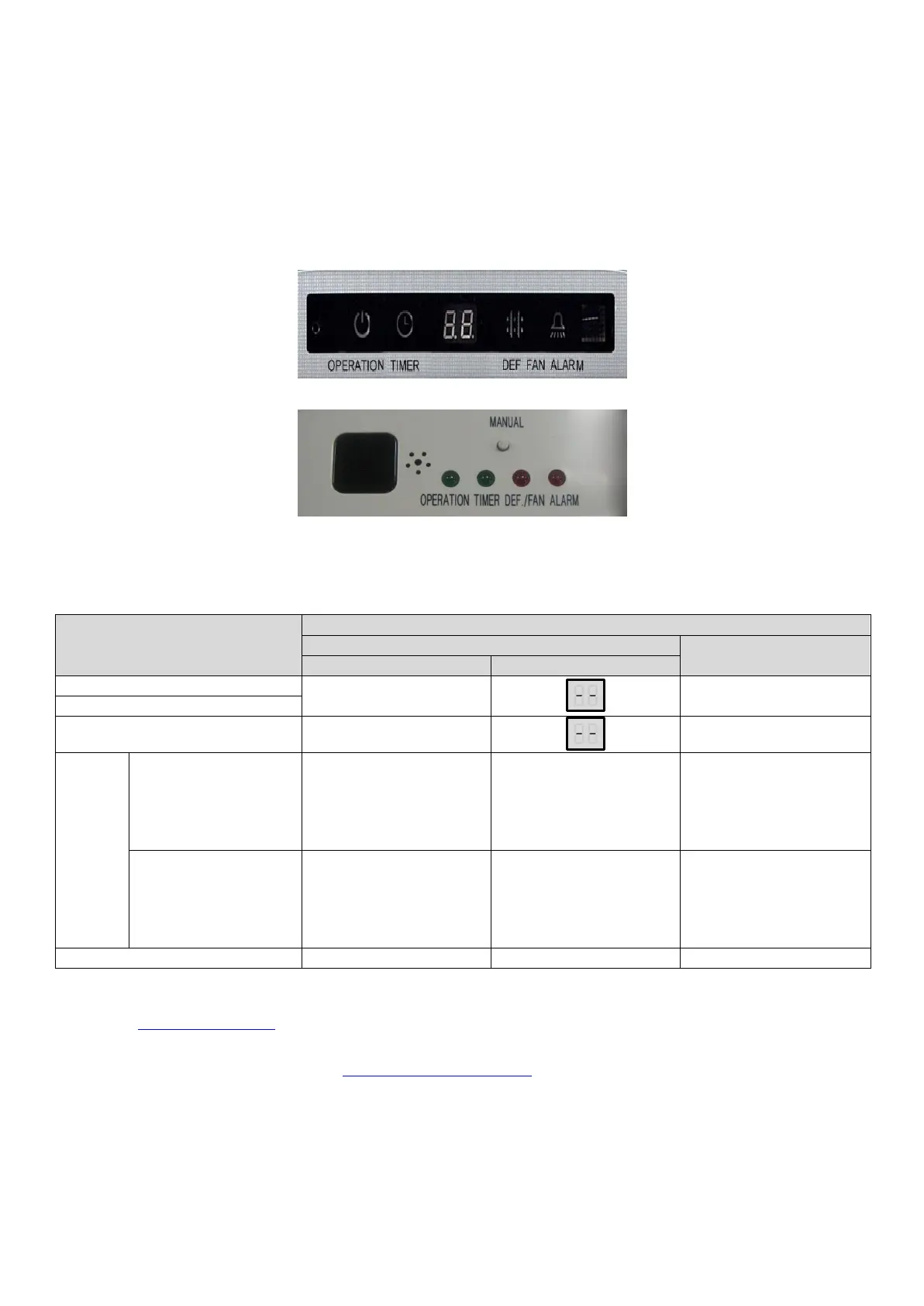

Figure 3.1: Example of digital display panel (new style display
panel)
Figure 3.2: Example of four LED display panel (old style display
panel)
1.2 Output Under Normal Operating Conditions
Table 3.1: Display panel output under normal operating conditions
Unit state
Display output
Digital display panels
Four LED display panels
1
Lights
Digital display
Standby
OPERATION light flashes
slowly
OPERATION LED flashes slowly
Auto-restart delay
2
Shutting-down
All lights off
3
All LEDs off
3
Operating
Normal operation
OPERATION light on
Cooling and heating modes:
set temperature
Fan only mode: indoor
ambient temperature
OPERATION LED on
Cold draft prevention
4
or
outdoor unit defrosting
operation
5
OPERATION and
DEF./FAN lights on
Set temperature
OPERATION and
DEF./FAN LEDs on
A timer has been set
TIMER light on
6
n/a
TIMER LED on
6
Notes:
1. Flashing slowly means flashing once per second.
2. Refer to 2.4.2 “Auto-restart setting”.
3. Unless a timer has been set, in which case the TIMER light/LED will be on.
4. In heating mode, cold draft prevention ensures that the indoor unit fan only runs when the indoor heat exchanger mid-point temperature is above a
certain temperature. Refer to Tables 2.1 to 2.6 in 2.1 “PCB Switch and Jumper Settings”.
5. In heating mode, outdoor units perform the defrosting operation in order to recover heating capacity. Refer to the outdoor unit technical
documentation.
6. The statuses of the other lights/LEDs are determined by whether the unit is currently in standby, auto-restart delay, shutting-down or operating.
