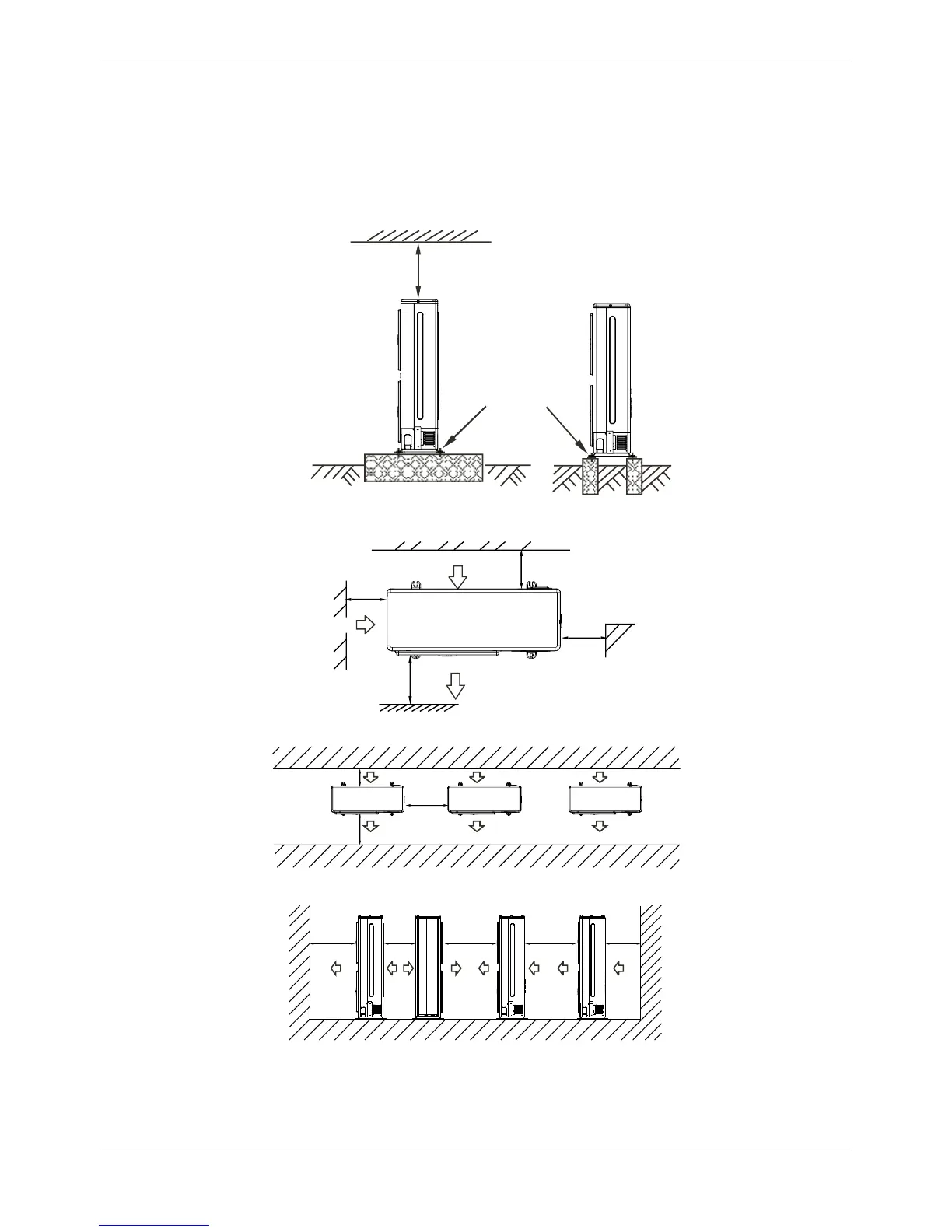

3.2 Installation space (units: mm)
Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a
sling.
Never hold the inlet of the outdoor unit to prevent it from deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45°, and do not lay it sidelong.
Make concrete foundation according to the specifications of the outdoor units.
Fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of earthquake or strong
wind.
Single unit installation
Parallel connect two units or above
Parallel connect the front with rear sides
All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you
purchased (depend on model).The actual shape shall prevail.
