Midea MDV-V120W/DRN1

R410A All DC Inverter Mini VRF MCAC-VTSM-2016-10
64 Installation
Model
Power

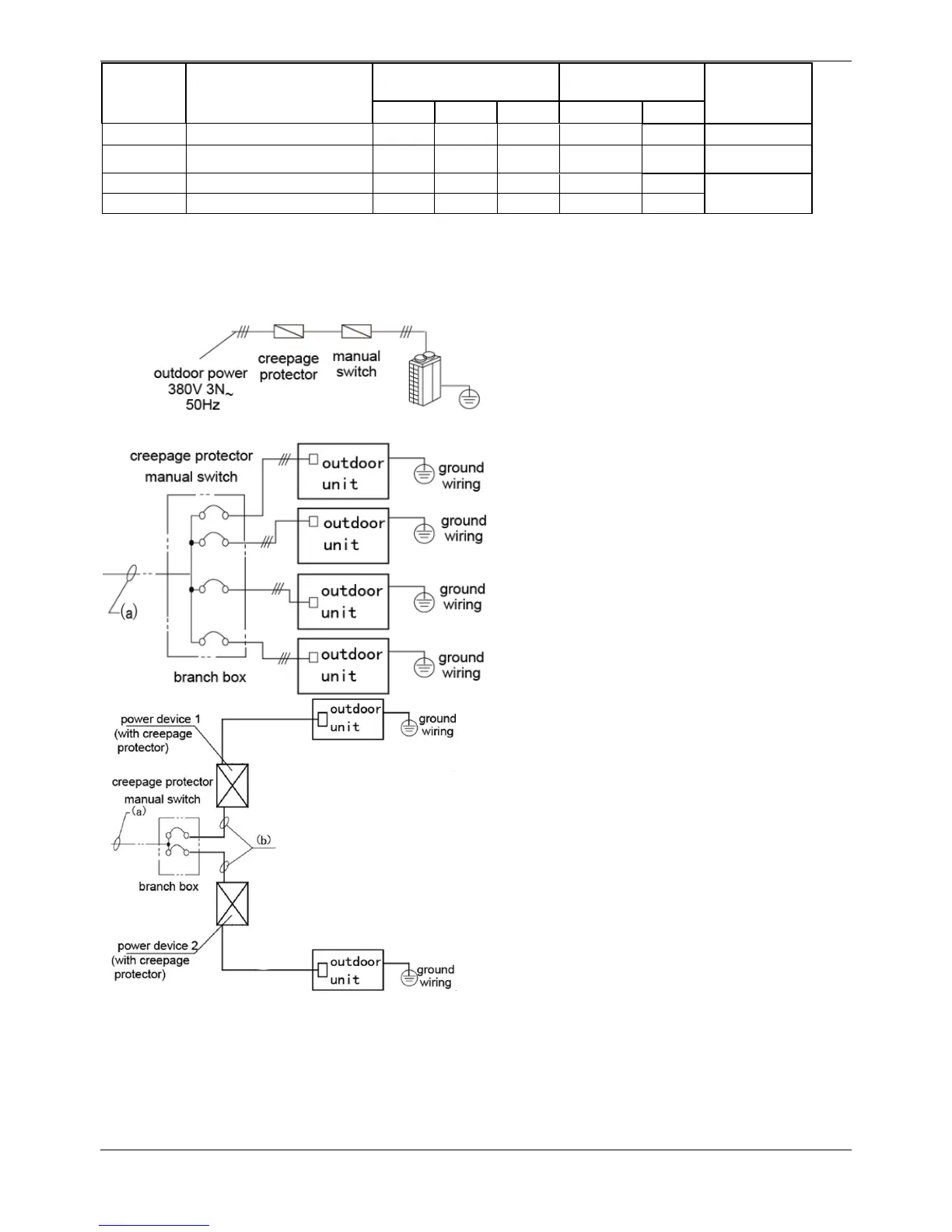

The shortest wiring
diameter (mm)
Manual switch (A)
Creepage
protector
≤20m
≤50m
GND
Capacity
Fuse
12KW
380~415V/3N/50Hz
4*3.3
4*4.0
4.0
30
25A
<100mA,0.1sec
14KW
380~415V/3N/50Hz
4*3.3
4*4.0
4.0
30
25A
<100mA,0.1sec
16KW
380~415V/3N/50Hz
4*3.3
4*4.0
4.0
30
25A
<100mA,0.1sec
18kW
380~415V/3N/50Hz
4*3.3
4*4.0
4.0
30
25A
Note: The length in the table equals the value of power cord connecting outdoor units, indicating the condition
that the voltage dropping range is within 2%. If the length exceeds the above figure, please select the wire
diameter according to relevant standard.
2) With power facilities.
