Midea MDV-V140W/DRN1 User Manual

R410A All DC Inverter Mini VRF MCAC-VTSM-2016-10
72 Troubleshooting

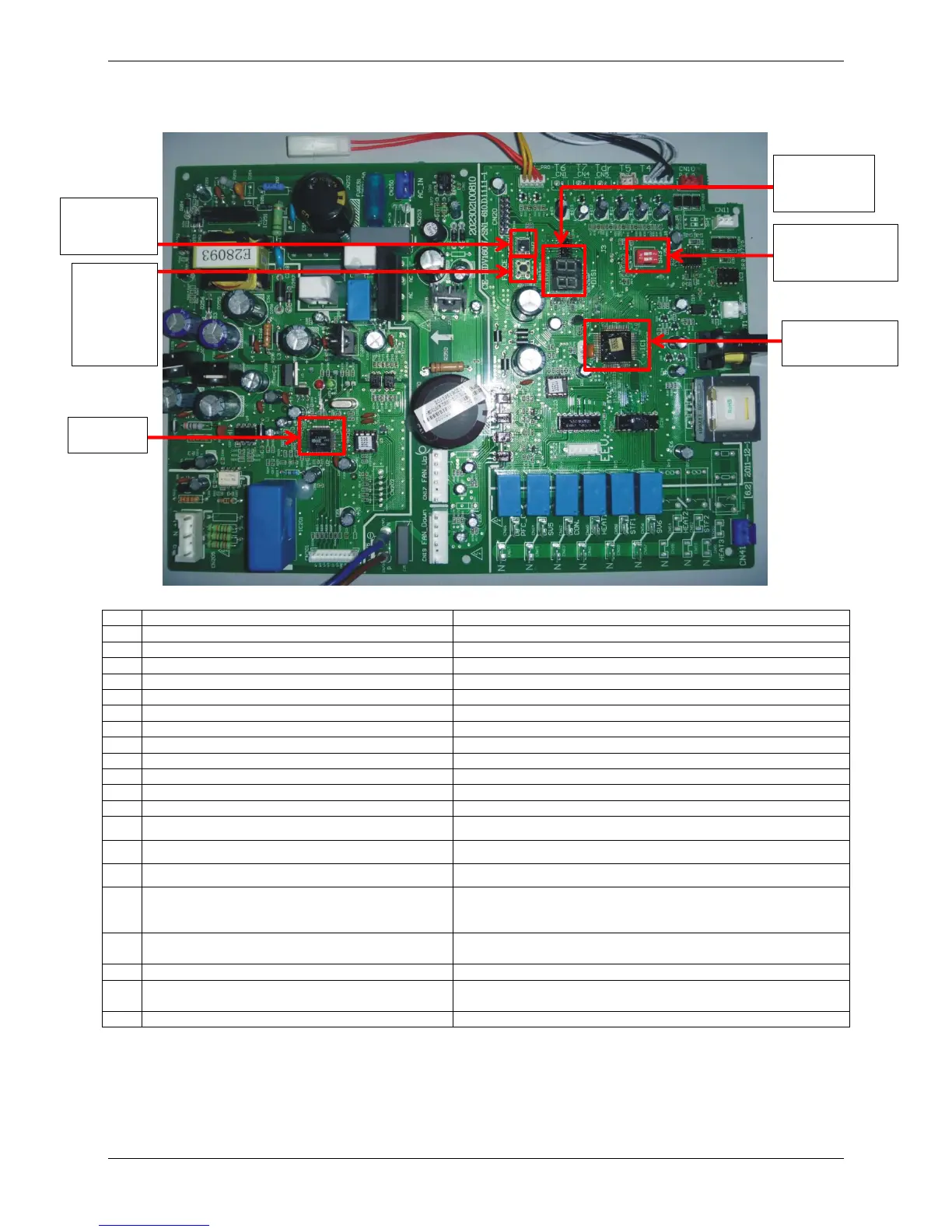

2 PCB parts instructions
2.1 SW2 query instructions
No.
Content
Note
1
Normal display
----
2
Running mode
0-Standby;2-Cooling;3-Heating;4-Forced Cooling
3
Fan speed
0-OFF
4
Capacity requirement of indoor unit
----
5
Capacity requirement of revised outdoor unit
----
6
T3 pipe temperature
Actual value
7
T4 environment temperature
Actual value
8
T5 discharge temperature
If more than one hundred, only display hundred s’ and tens digits.
9
Reserved
----
10
Opening degree of EXV
Actual value=Display value×8
11
Actual current value
Actual value
12
AD actual value of voltage
Actual value
13
T2 average temperature
Actual value
14
Quantity of indoor units
Actual value
15
Running quantity of indoor units
Actual value
16
12~16kW: the last fault or protection code (if there
is no fault or protection code it will be display “nn”)
18kW: 18
----
17
12~16kW :”- -” displays
18kW: Priority mode(Reserved)
Query for 12~16kW ends. “0” displays on 18kW..
18
18kW:Version of the program
Only for 18kW
19
18kW :The last fault or protection code (if there is
no fault or protection code it will be display “nn”)
Only for 18kW
20
18kW :Display “--”
Only for 18kW
IRMCF341
UPD78F0537A
Function setting
dial switch
LED digital
tube display
SW1:
Forced
cooling
button
SW2: Query
button
