Midea MDV-V140W/DRN1 User Manual

R410A All DC Inverter Mini VRF MCAC-VTSM-2016-10

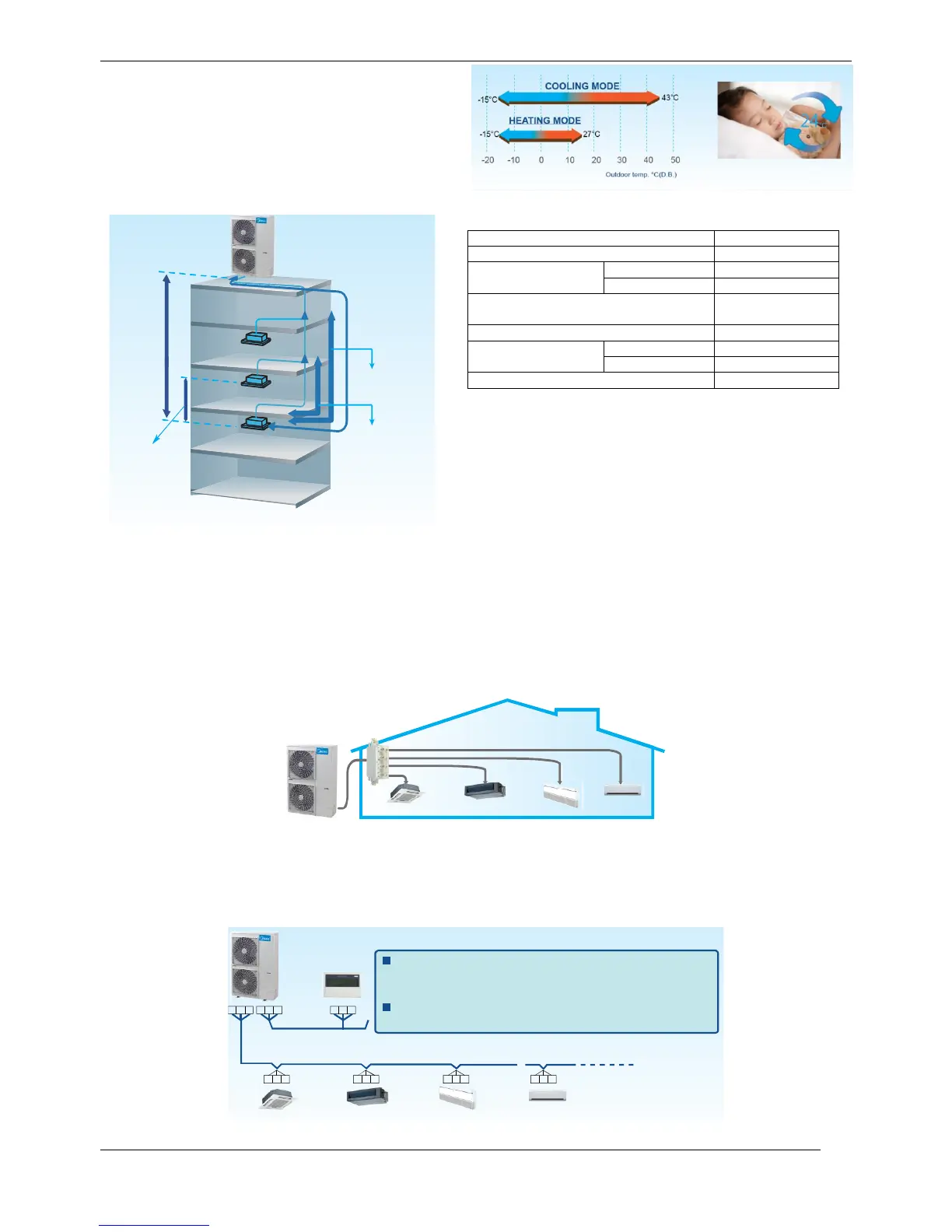

6 General Information
3.6 Wide operation temperature range
No matter in extremely cold winter when outdoor
temperature gets as low as -15°C or in hot summer
when temperature is up to 43°C, the Mini VRF
system will keep stable performance.
3.7 Flexible piping design
3.8 Flexible indoor unit’s connection
Mini VRF with intelligent control gives you independent zoning control with maximum flexibility.
A single outdoor unit supports up to nine indoor units, freeing up considerable space outside. Use your
backyard more wisely with much more space available created by less number of outdoor units.
 Max. 6 indoor units for a 12kW outdoor unit installation
 Max. 6 indoor units for a 14kW outdoor unit installation
 Max. 7 indoor units for a 16kW outdoor unit installation
 Max. 9 indoor units for a 18kW outdoor unit installation
3.9 Simple signal line connection
Installation is much easier as the communication wiring between indoor & outdoor units can be shared.
It’s easy for the user to retrofit the existing system with a centralized control by simply connecting to outdoor
units.
PQE & XYE, just only one group of communication wire of PQE,
achieved both of communication for indoor & outdoor unit and
network.
Reversible communication, central controller can be connected
from indoor side or outdoor side as you wish.
P Q E
P Q E P Q E P Q E P Q E
X Y E X Y E
Piping Length
Permitted Value
Total piping length (Actual)
100m
Longest piping
length
Actual
60m
Equivalent
70m
The first branch joint to the
farthest IDU
20m
The IDU to the nearest branch pipe
15m
Level difference
between ODU~IDU
ODU up
30m
ODU down
20m
Level difference between IDU~IDU
8m
Longest
piping length
Level
difference
between
IDU~ODU
The IDU to the
nearest branch
pipe
The first branch
joint to the farthest
indoor unit
Level differece
between IDU~IDU
