Midea MDV-V80W/DN1

R410a Full DC Inverter Mini VRF MCAC-VTSM-2013-12
78 Installation

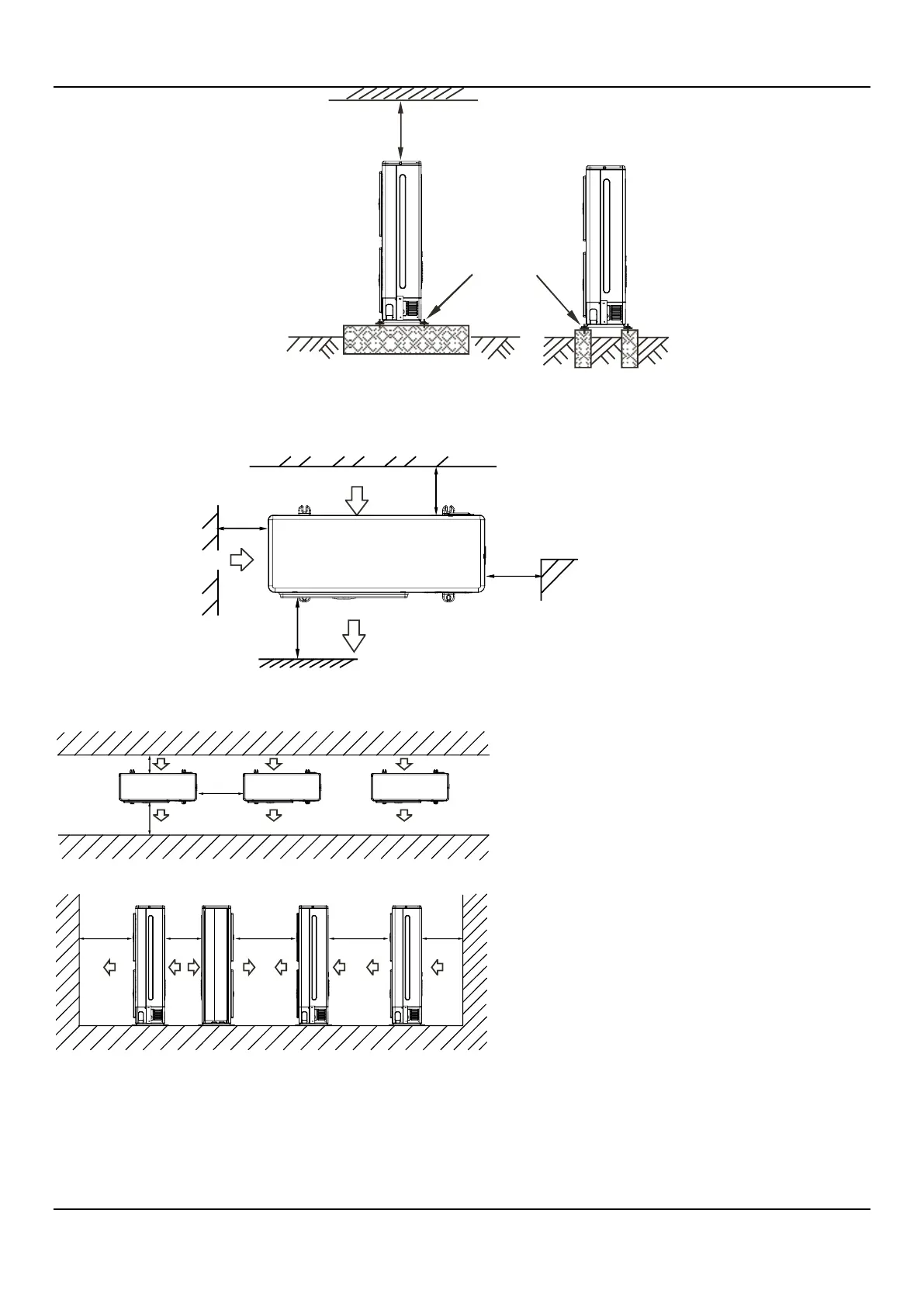

Single unit installation
Parallel connect two units or above
Parallel connect the front with rear sides
All the pictures in this manual are for explanation purpose only. They might be slightly different from the air conditioner you
purchased (depending on model).The actual shape shall prevail.
3.3 Water Outlet
Four condensed water outlets on the chassis for selection display as the follow figure:
>
6
0
c
m
Fix with bolt
>600
>2000
>300
>2000 >500 >3000 >3000 >300
>300
>600
>300
>
2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
