R410A Tropical Split Type Technical Manual Installation of Indoor Units
Installation
123
A. Wooden structure

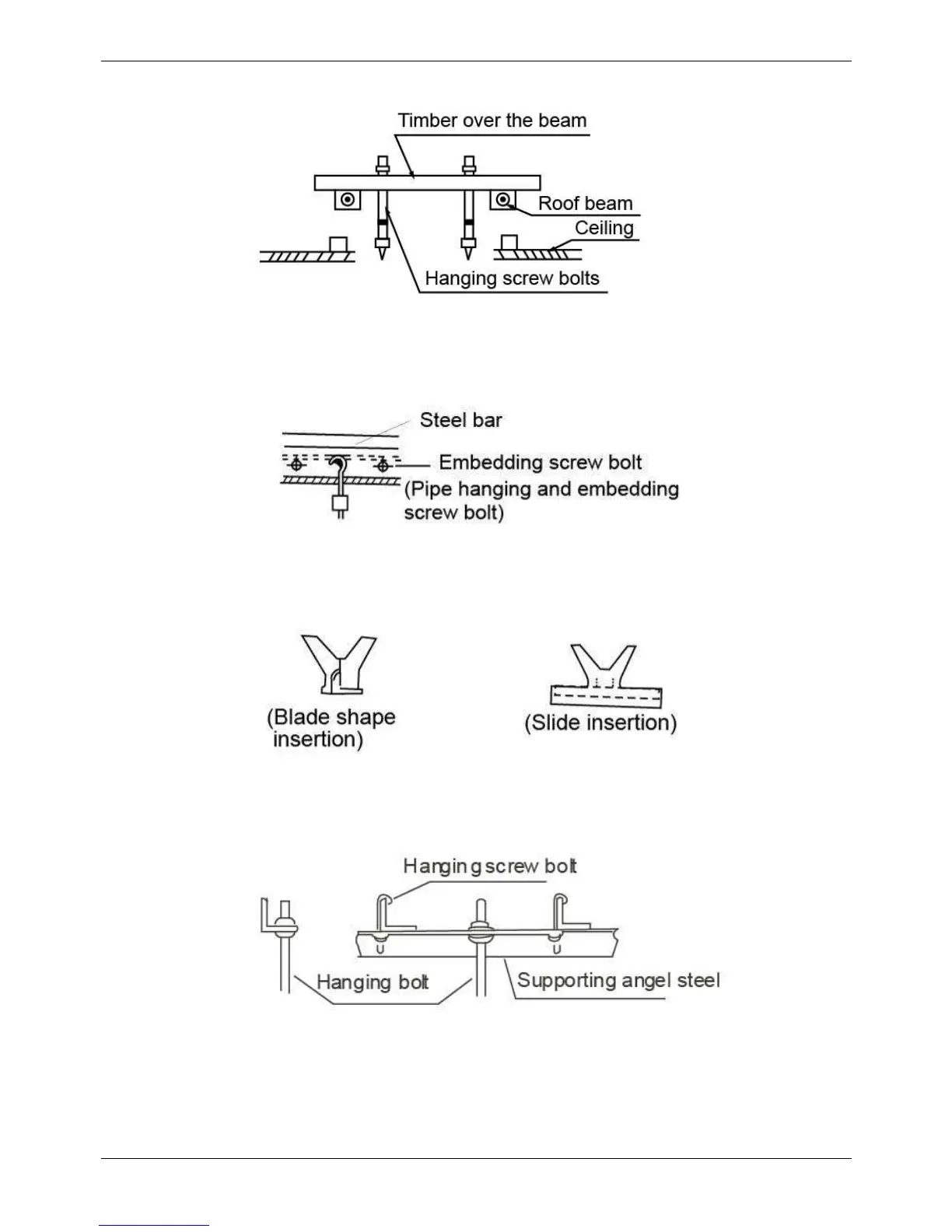

Put rectangular sticks across the beams, and set pendant bolts. (Fig-4)
Fig-4
B. New concrete roughcast
Use embedded bolts, embedded pulling plugs, and embedded stick harness. (Fig-5)
Fig-5
C. New concrete roughcast
Set it with embedded bushes or embedded bolts. (Fig-6)
Fig-6
D. Steel beam and girder structure
Set and use supportive angle steel. (Fig-7)
Fig-7
