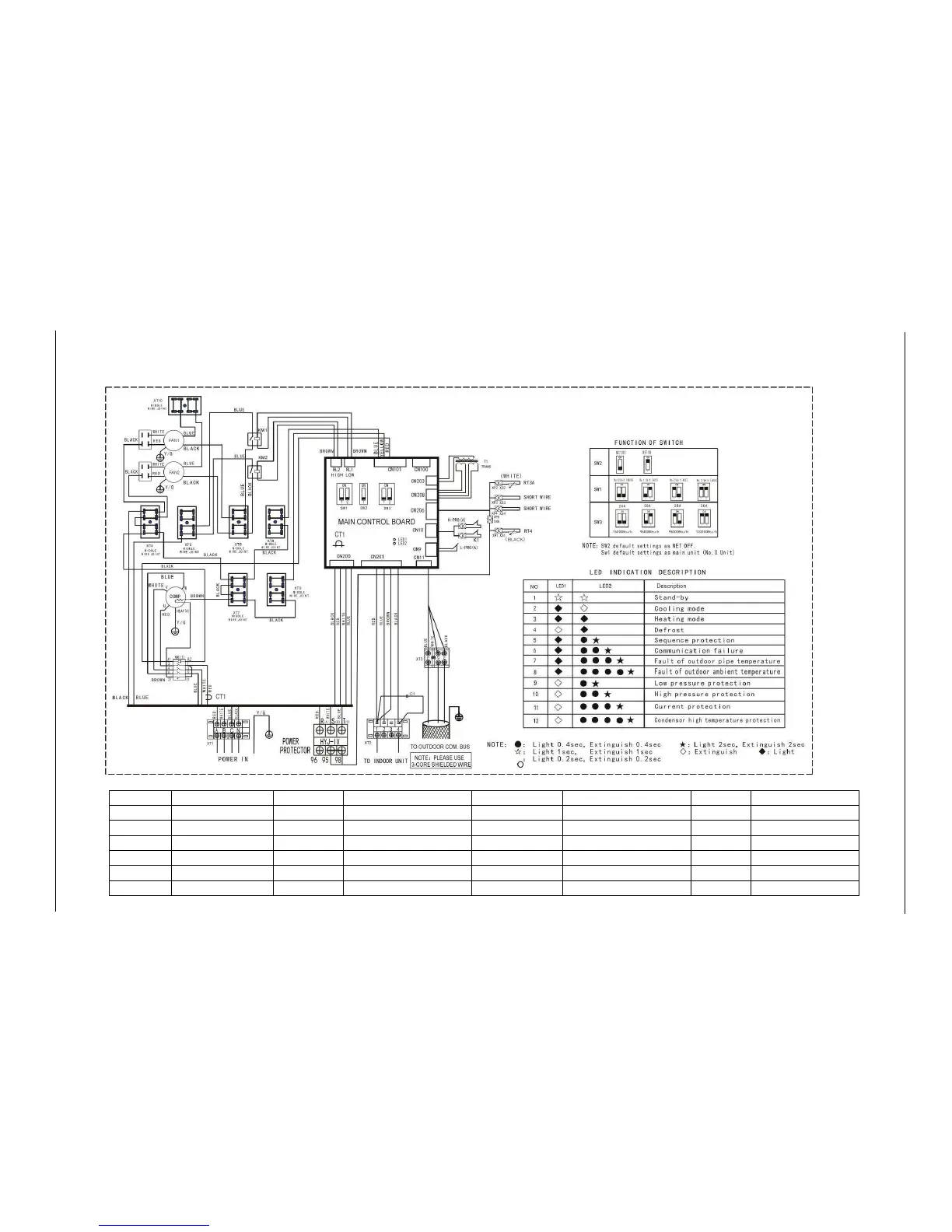

4. Wiring Diagrams
4.1 MOV-76CN1-C, MOV-96CN1-C, MOV-120CN1-C
Item Name Item Name Item Name Item Name
COMP Compressor HEAT(A) Crank RT3A Pipe temp. sensor T1 Transformer
FAN1-2 Outdoor fan CT1 Current detector RT4 Room temp. sensor SW1-3 Switch
CAP1-2 Fan capacitance
XT1-2 4-way terminal XS1-5, XP1-5 Connectors C1 Filter capacitor
S.V 4-way valve XT3 3-way terminal L-PRO(A) Low pressure switch KM1-2 Relay
KM(1) AC contactor H-PRO(A)
High pressure switch K1 Temp. protect switch CN8-208
XT4-10 Middle wire joint - - - - - -
Wiring Diagrams
R410A
Tropical Split Type Technical Manual
To Next Page
