Service Space R410A Tropical Split Type Technical Manual
Outdoor Units 92
3. Service Space

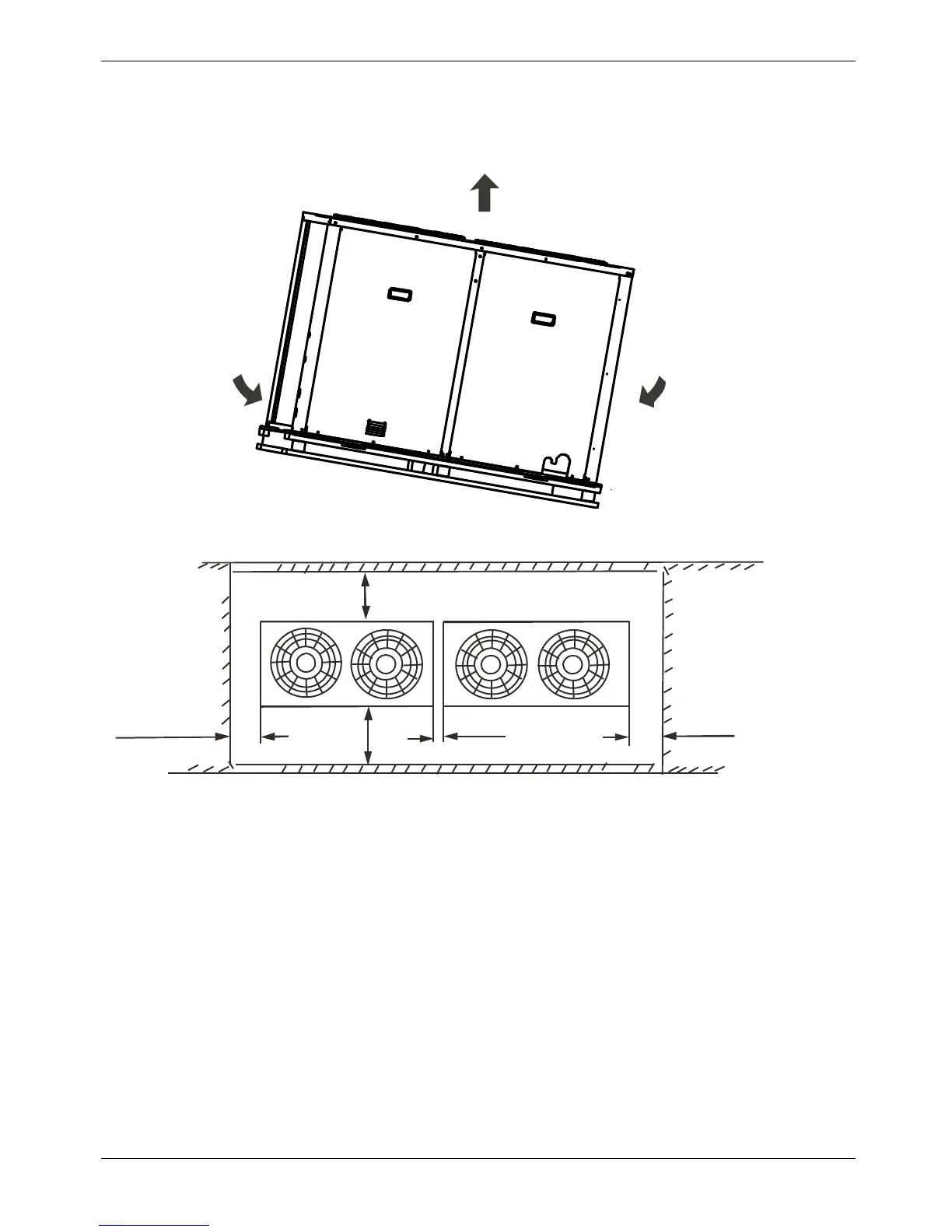

3.1 MOV-76CN1-C, MOV-76HN1-C, MOV-96CN1-C, MOV-96HN1-C
MOV-120HN1-C, MOV-120CN1-C
Air outlet
Air inle
t
A
ir inlet
≥1000 mm
≥1000 mm
≥500 mm
≥1000 mm
≥1000 mm
Note:
1. In case any obstacles exist above the outdoor unit, such obstacles must be 2000mm above the outdoor unit.
2. If miscellaneous articles are piled around the outdoor unit, such articles must be 400mm below the top of the outdoor unit.
