Midea MFA-76CRN1 User Manual

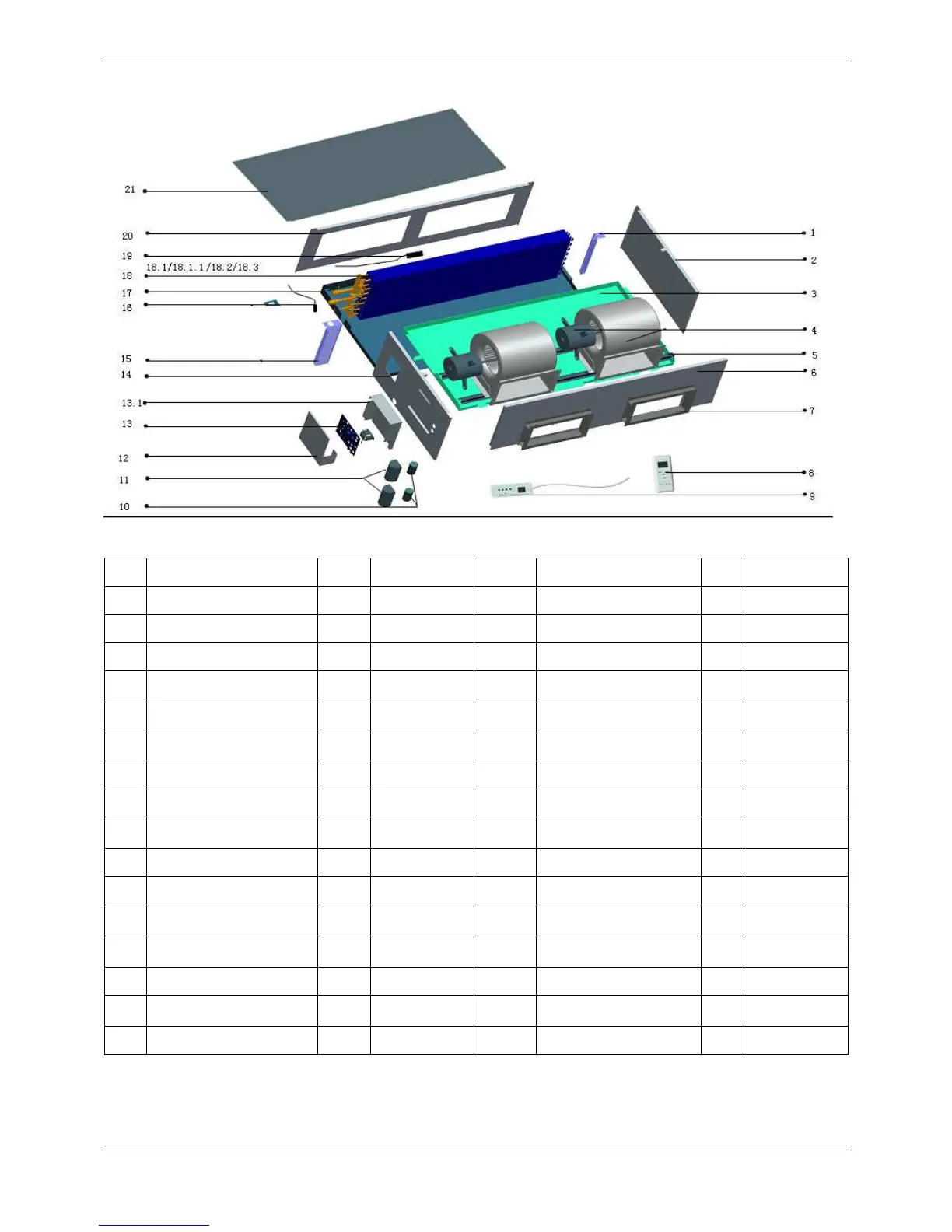

Exploded View R410A Tropical Split Type Technical Manual
Duct Type 40
11.2 MTA-76HRN1
No.
Part Name QTY
BOM Code No. Part Name QTY
BOM Code
1 Evaporator Sealed board 1 201286900317
13.4 Transformer 1 202300900093
2 Side board ass'y 1 201286900316
13.5 Wire joint, 7p 1 202301450056
3 Drainage pan ass'y 1 201285000677
13.6 Wire joint 2 202301450122
4 Asynchronous motor 2 202400400641
14
The left side plate
assembly
1 201270990012
5 Motor supporter ass'y 2 201285000683
15
Seal plate evaporator
components left
1 201270990009
6 Front panel ass'y 1 201285000668
16 Temp.sensor ass'y 1 202301300133
7 Air outlet ass'y 2 201285000612
17 Base ass'y 1 201285000667
8 Remote controller 1 203355090100
18 evaporator ass'y 1 201570990079
9 Display board ass'y 1 203342090051
18.1
evaporator inputing pipe
ass'y
1 201670990091
10
Compressor capacitor 2 202401010101
18.1.1
One way valve 1 201600800166
11
Compressor capacitor box
2 201226190015
18.2 evaporator 1 201570990080
12
Components of electronic
control box cover
1 201270600180
18.3
evaporator input pipe
ass'y
1 201670990087
13
Indoor electronic control
box components
1 203370990033
19 Room temp sensor ass'y
1 202301300214
13.1
E-part box 1 201285000350
20 Rear board ass'y 1 201286900313
13.2
Main control board
assembly
1 201370900071
21 Top cover ass'y 1 201286900314
13.3
Relay 3 202300800003
22 Volute shell ass'y 2 201200300201
