Midea MFA-76CRN1 User Manual

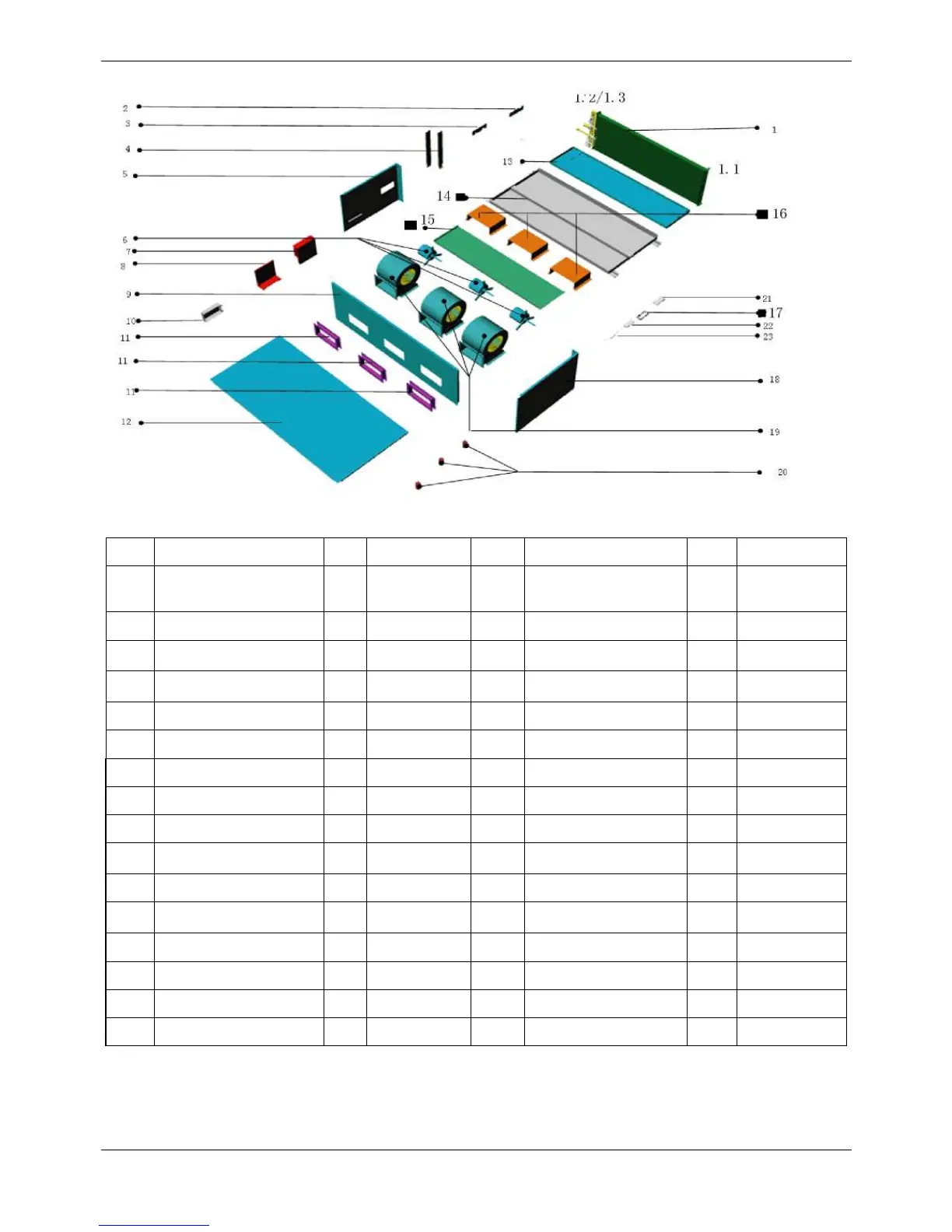

R410A Tropical Split Type Technical Manual Exploded View
Duct Type 43
11.5 MTA-120CRN1
No. Part Name QTY
BOM Code No. Part Name QTY
BOM Code
1 Evaporator ass'y 1 201570990082
8
Components of
electronic control box
cover
1 201270600180
1.1 Evaporator 1 201570990083
9 Front panel ass'y 1 201286910001
1.2
Inlet pipe ass'y of
evaporator
1 201670990108
10 Capacitor box 3 201286900512
1.3
Outlet pipe ass'y of
evaporator
1 201670990107
11 Air outlet ass'y 3 201285000612
2 Pipe clamp ass'y 1 201270990000
12 Top cover ass'y 1 201286900504
3 Pipe clamp ass'y 1 201270990001
13 Drainage pan ass'y 1 201252600013
4 Evaporator left clapboard 2 201252600012
14 Base ass'y 1 201286910002
5 Left clapboard ass'y 1 201270990002
15 Drainage pan ass'y 1 201252600023
6 Asynchronous motor 3 202400400641
16 Motor installation board 3 201286910000
7
Indoor electronic control
box components
1 203370990033
17 Display board ass'y 1 203342090051
7.1 E-part box 1 201285000350
18 Right cover ass'y 1 201286900503
7.2
Main control board
assembly
1 201370900071
19 Volute shell ass'y 3 201200300201
7.3 Relay 3 202300800003
20 compressor Capacitor 3 202401000065
7.4 Transformer 1 202300900093
22 Room temp sensor ass'y
1 202301300214
7.5 Wire joint, 7p 1 202301450056
23 Temp.sensor ass'y 1 202440500002
7.6 Wire joint 2 202301450122

Midea MFA-76CRN1 Specifications

General

Brand	Midea
Model	MFA-76CRN1
Category	Air Conditioner
Language	English
