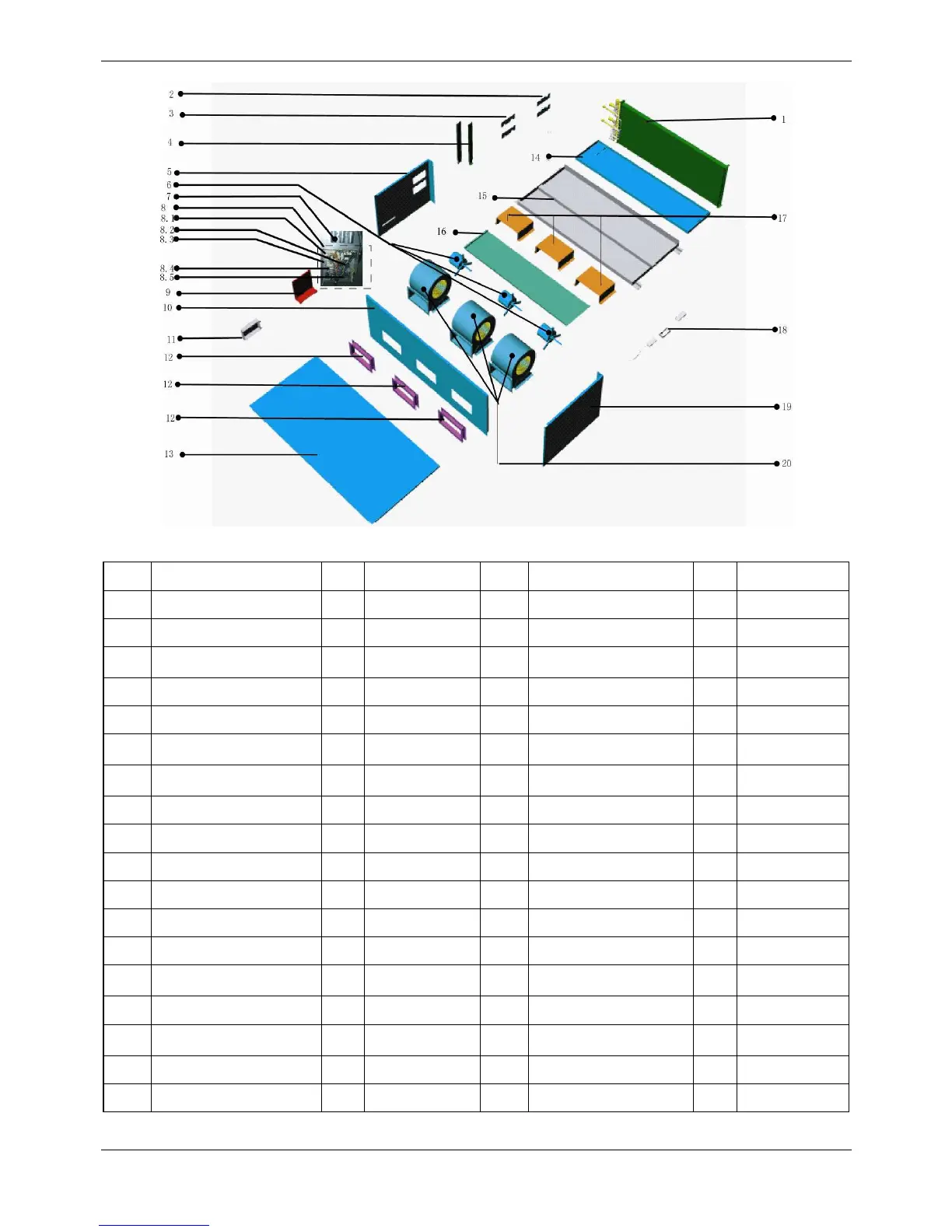

R410A Tropical Split Type Technical Manual Exploded View
Duct Type 45
11.7 MTA-150CRN1
No. Part Name QTY
BOM Code No. Part Name QTY
BOM Code
1 evaportator ass'y 1 201570990081 8.5 Wire joint, 7p 1 202301450056
1.1 Evaporator 1 201586900502 8.6 Wire joint 2 202301450122
1.2 Evaporator 1 201586900504 9
Components of electronic
control box cover
1 201270600180
1.3 Evaporator 1 201586900505 10 Front panel ass'y 1 201286910001
1.4 Evaporator 1 201586900506 11 Capacitor box 1 201286900512
1.5
evaportaor input pipe
ass'y(II)
1 201670990106 12 Air outlet ass'y 3 201285000612
1.6
evaporator input pipe
ass'y(I)
1 201670990104 13 Top cover ass'y 1 201286900504
1.7 Output pipe ass'y 2 201686900500 14 Drainage pan ass'y 1 201252600013
2 Pipe clamp board ass'y 2 201286900505 15 Base ass'y 1 201286910002
3 Clamp board ass'y 2 201286900524 16 Drainage pan ass'y 1 201252600023
4 Evaporator left clapboard 2 201252600012 17 Motor installation board 3 201286910000
5 Left clapboard ass'y 1 201286900502 18 Remote controller 1 203355090107
6 Motor 3 202400400071 19 Right cover ass'y 1 201286900503
8
Indoor electronic control
box components
1 203370990033 20 Volute shell ass'y 3 201200300201
8.1 E-part box 1 201285000350 21 Room temp sensor ass'y
8.2
Main control board
assembly
1 201370900071 22 Temp.sensor ass'y 1 202440500002
8.3 Relay 3 202300800003 23 Display board ass'y 1 203342090023
8.4 Transformer 1 202300900093
