Midea MFA-76CRN1 - Page 65

R410A Tropical Split Type Technical Manual Wiring Diagrams
Floor-standing Type 65

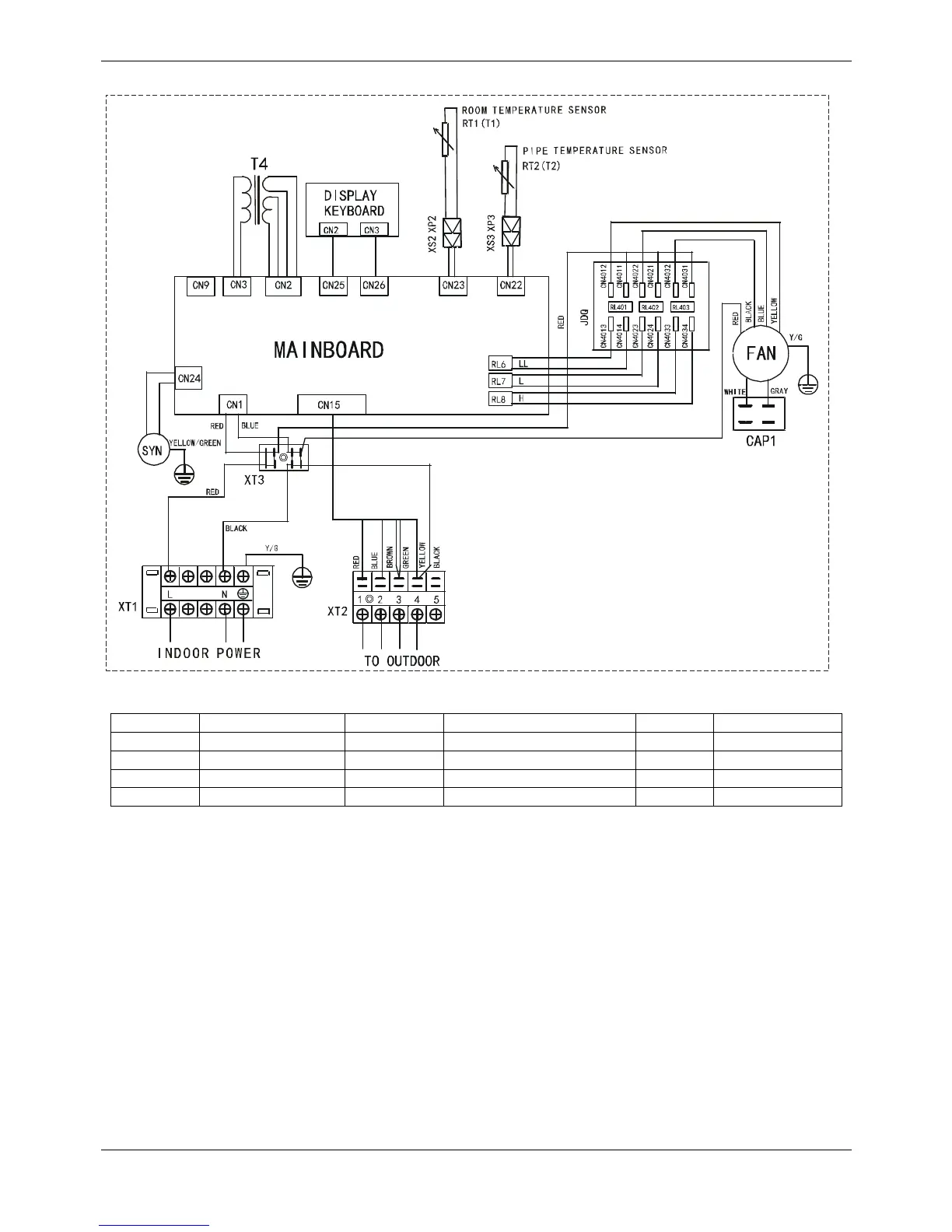

6.2 MFA-76HR, MFA-96HR
Item
Name
Item
Name
Item
Name
CAP1 Fan capacitance RT1 Room temp. sensor XS1-3 Connector plugs
FAN Indoor fan RT2 Pipe temp. sensor SYN Swing motor
XT1-3 Connector JDQ Fan aided control board - -
T4 Transformer XP1-3 Connector plugs - -
