Midea MGBT-F180W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
32

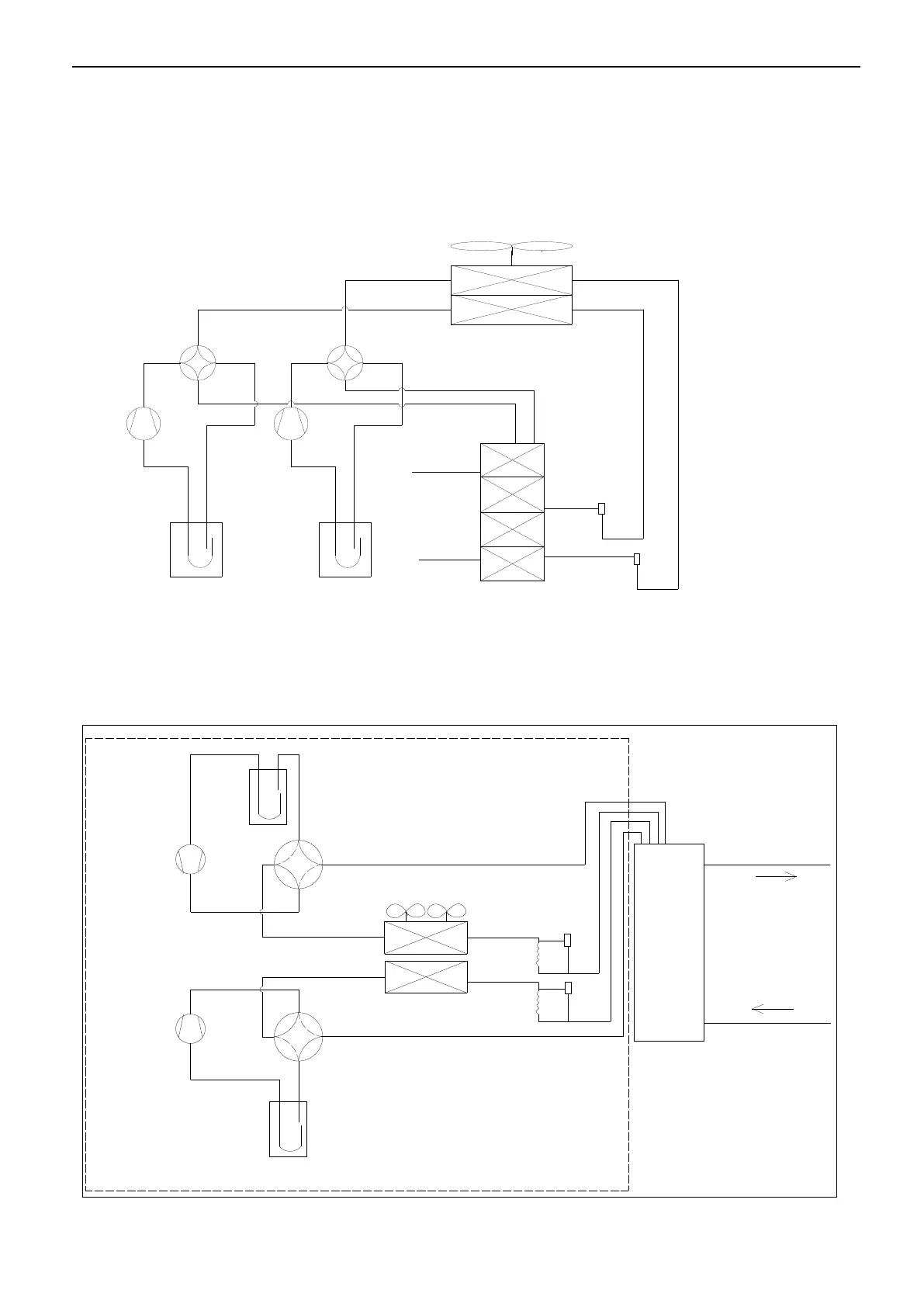

3. Refrigeration system drawing
3.1 MGBT-F25W/RN1, MGBT-D25W/RN1, MGBT-F30W/RN1 ,MGBT-D30W/RN1
Each module has two compressors with one separate unit, one double-pipe evaporator for two refrigerant
systems.
Compressor A
Compressor B
Low pressure cylinder A
Low pressure cylinder B
4-way valve A
4-way valve B
Condenser
Evaporator
(Double-pipe heat exchanger)
Fan
Water outlet
Water inlet
EXV
EXV
3.2 MGBT-F60W/RN1
Each module has two compressors with one separate unit, one shell and tube evaporator for two refrigerant
systems.
Shell and tube
evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EEV
Capillary
EEV
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
