Midea MGBT-F180W/RN1

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
35
Shell and tube
evaporator
Condenser
Water flow direction

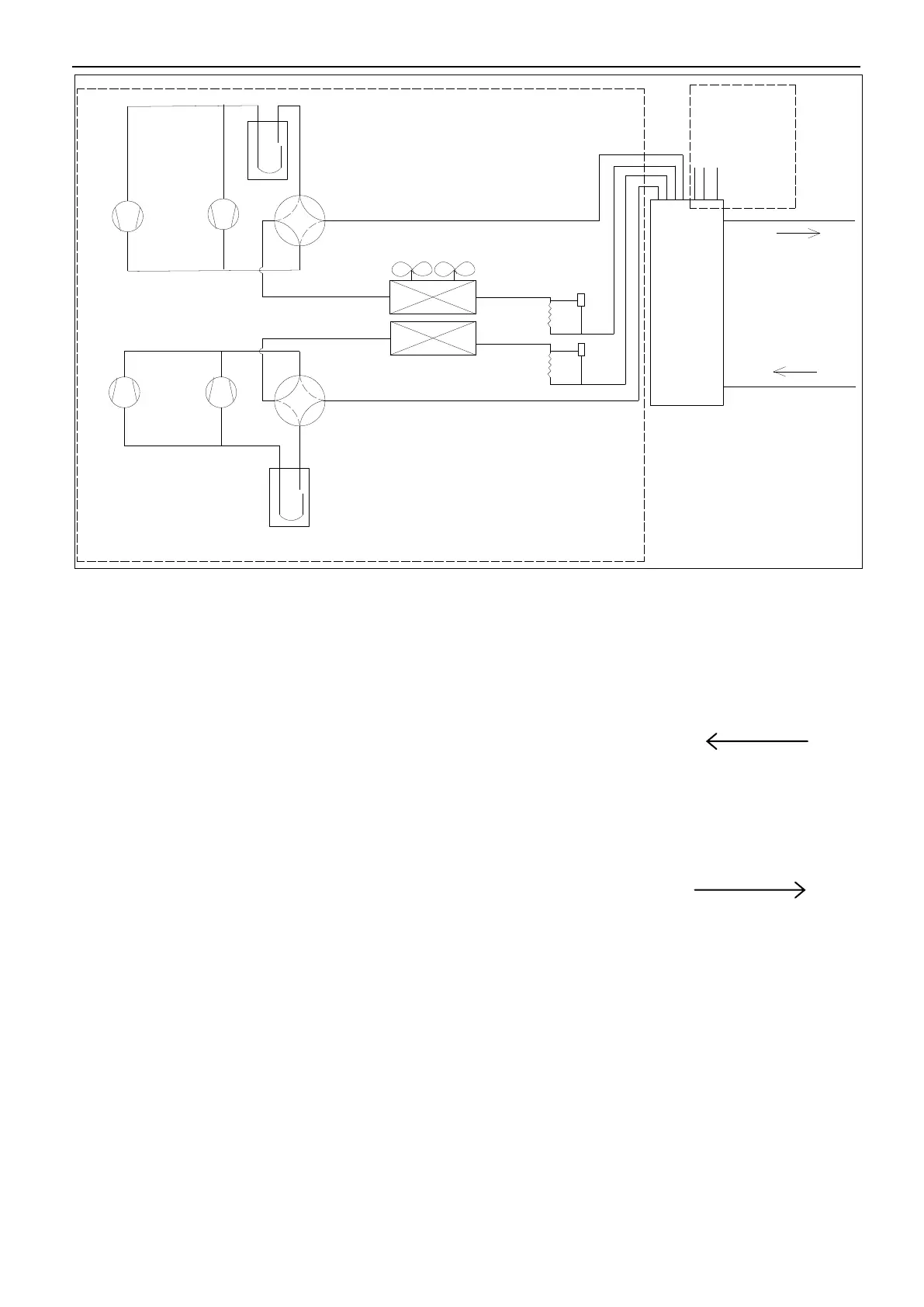

Compressor B1
low pressure cylinder B
4-Way valve A
Fan A
EEV
Capillary
EEV
Capillary
Fan B
4-Way valve B
Compressor A1
low pressure cylinder A
Unit 2
Unit 1
Compressor A2
Compressor B2
