Midea MGBT-F180W/RN1

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
54

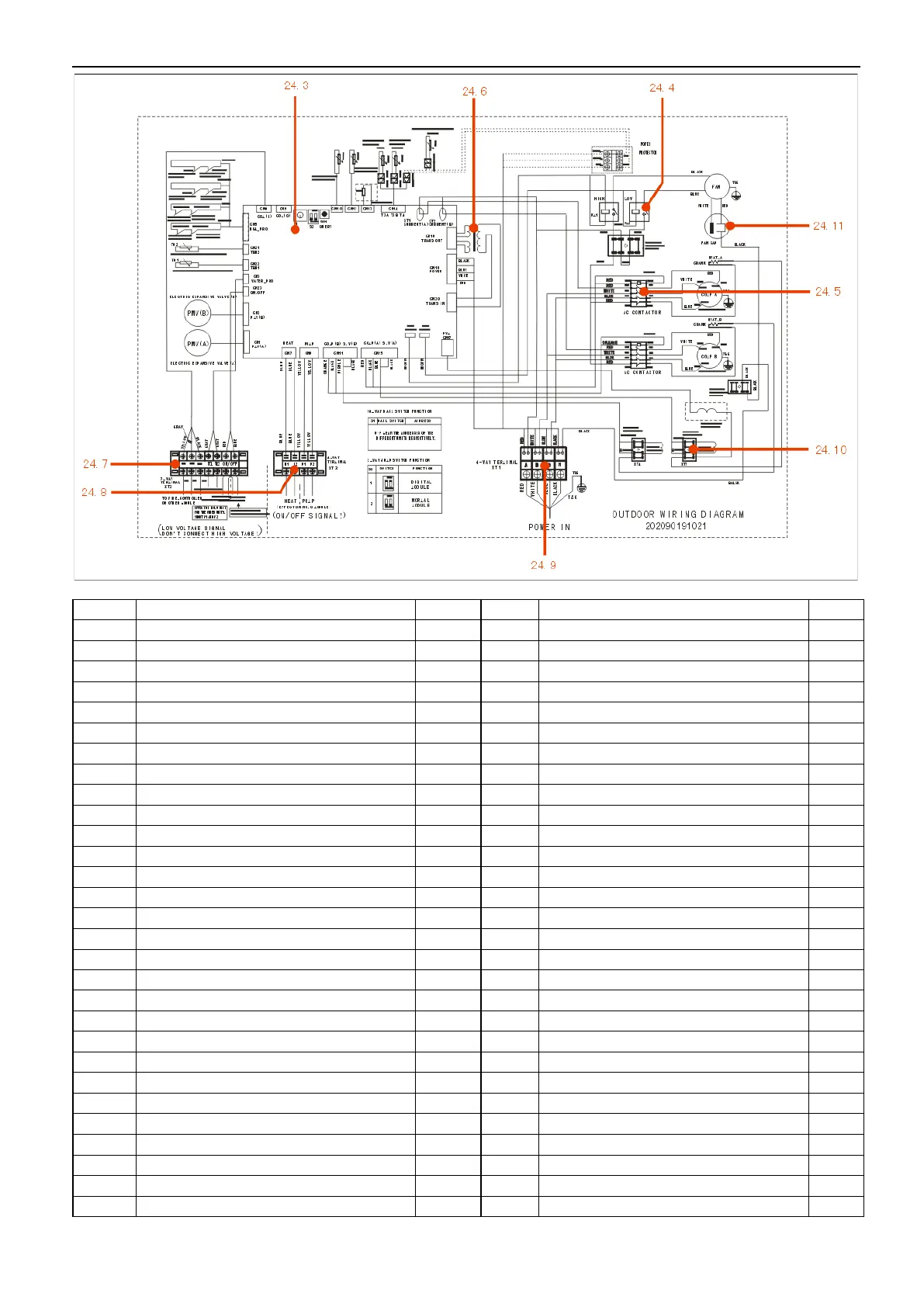

No.
Part Name
Qty
No.
Part Name
Qty
1
Net
2
24.7
7-terminal Block
1
2
Right seal plate ass'y D of condenser
1
24.8
Wire joint,4p
1
3
Tube heat exchanger
1
24.9
Wire joint
1
4
Right seal plate ass'y A of condenser
1
24.10
Terminal block
4
5
Input pipe ass'y of unit B
1
24.11
Capacitor
1
5.1
Electronic expansion valve
1
25
Scroll Compressor
2
6
Input pipe ass'y II of unit B
1
26
Drainage pan holder
2
7
Input pipe ass'y I of unit A
1
27
Electronic control box door
1
7.1
Electronic expansion valve
1
28
Welding parts water tray
1
8
Output pipe ass'y of unit A
1
29
Electronic control box mounting plate
2
9
Four-way valve ass'y of unit A
1
30
Condenser components of unt A
1
9.1
Four-way valve set
1
31
Cover
1
9.2
Meter connector
3
32
Ass'y C of left seal plate,condenser
1
9.3
Muffler
1
33
Condenser components of unit B
1
10
Input pipe ass'y II of unit A
1
34
Motor holder
2
11
Four-way valve ass'y of unit B
1
35
Side sealed board
7
11.1
Four-way valve set
1
36
Clapboard supporting board
3
11.2
Meter connector
3
37
Motor bracket bonding parts
1
11.3
Muffler
1
38
Cover
2
12
Suction pipe ass'y A
1
39
Motor
1
12.1
Meter connector
1
40
Axial fan
1
13
Suction pipe ass'y B
1
41
Top cover
1
13.1
Meter connector
1
42
Middle partition plate
1
14
Support board
2
43
Top cover
1
15
Cover
1
44
Sealed board
1
16
Cover board
2
45
Rear Cover
1
17
Temp sensor clip
6
46
Front cover
1
18
Sensor clamp
1
47
About clapboard
2
19
The welding part of small baseplate
1
48
Wired controller
1
