Midea R410A Full DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
25

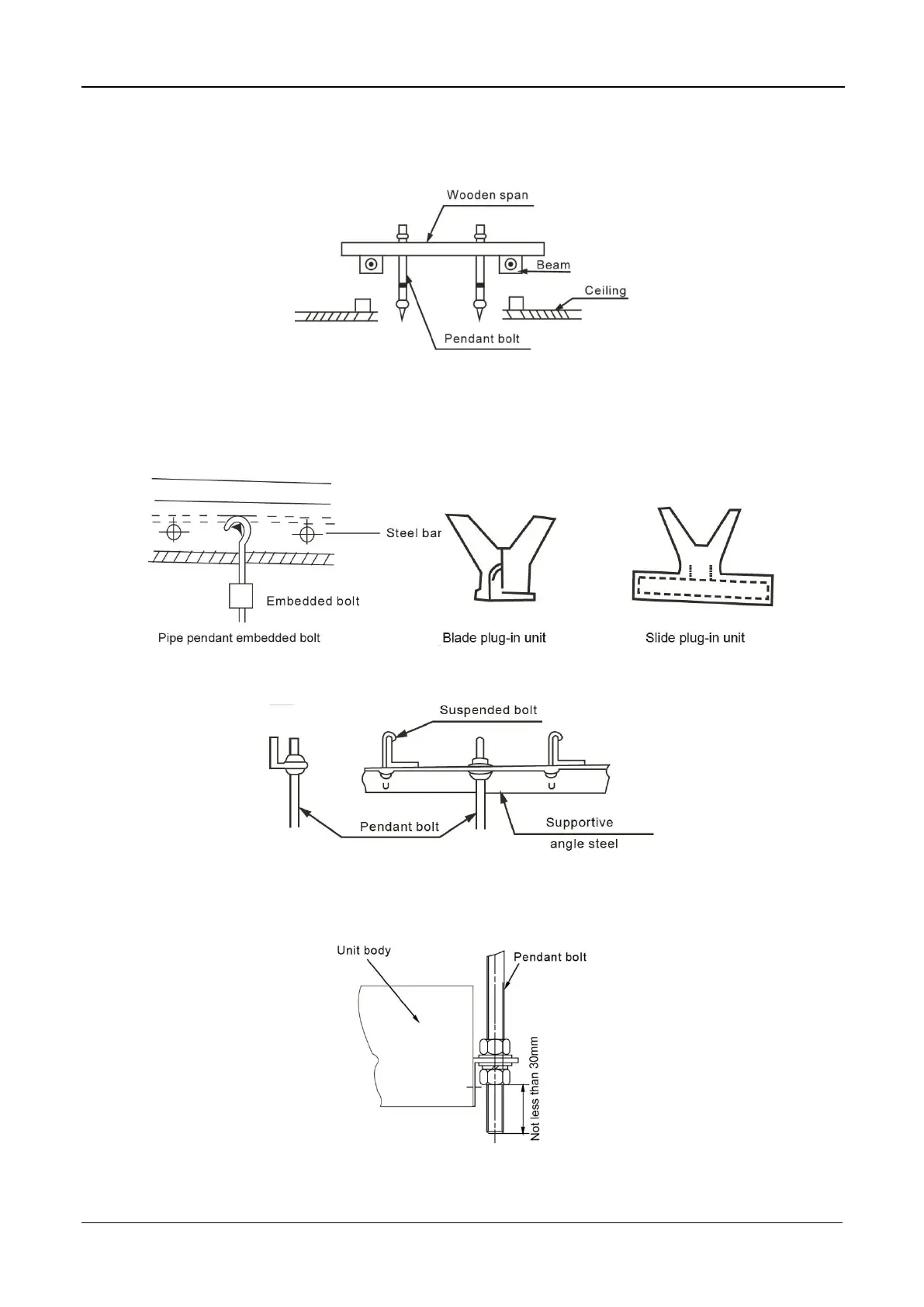

When the pandant bolt is fixed in wooden structure, please put rectanglar sticks across the
beams, and set pendant bolts.
When in the new concrete roughcast environment, please use embedded bolts, embedded
pulling plugs and stick harness. On steel bar have some holes to hang pipe and embed
screw bolts.
.When in steel beam and girder structure, set and use supportive angle steel.
After install the indoor units, use a hoisting device to hoist the indoor unit, and align it with
the installation screws to adjust the horizontality. Finally, Tighten the screws.
