MCAC-UTSM-201406 Midea R410A Full DC Inverter Split Type Series Technical Manual
30
Note: * The position should be provided with an at least 50mm thick wood block, cloth or hard
paper, to avoid damages to the unit.

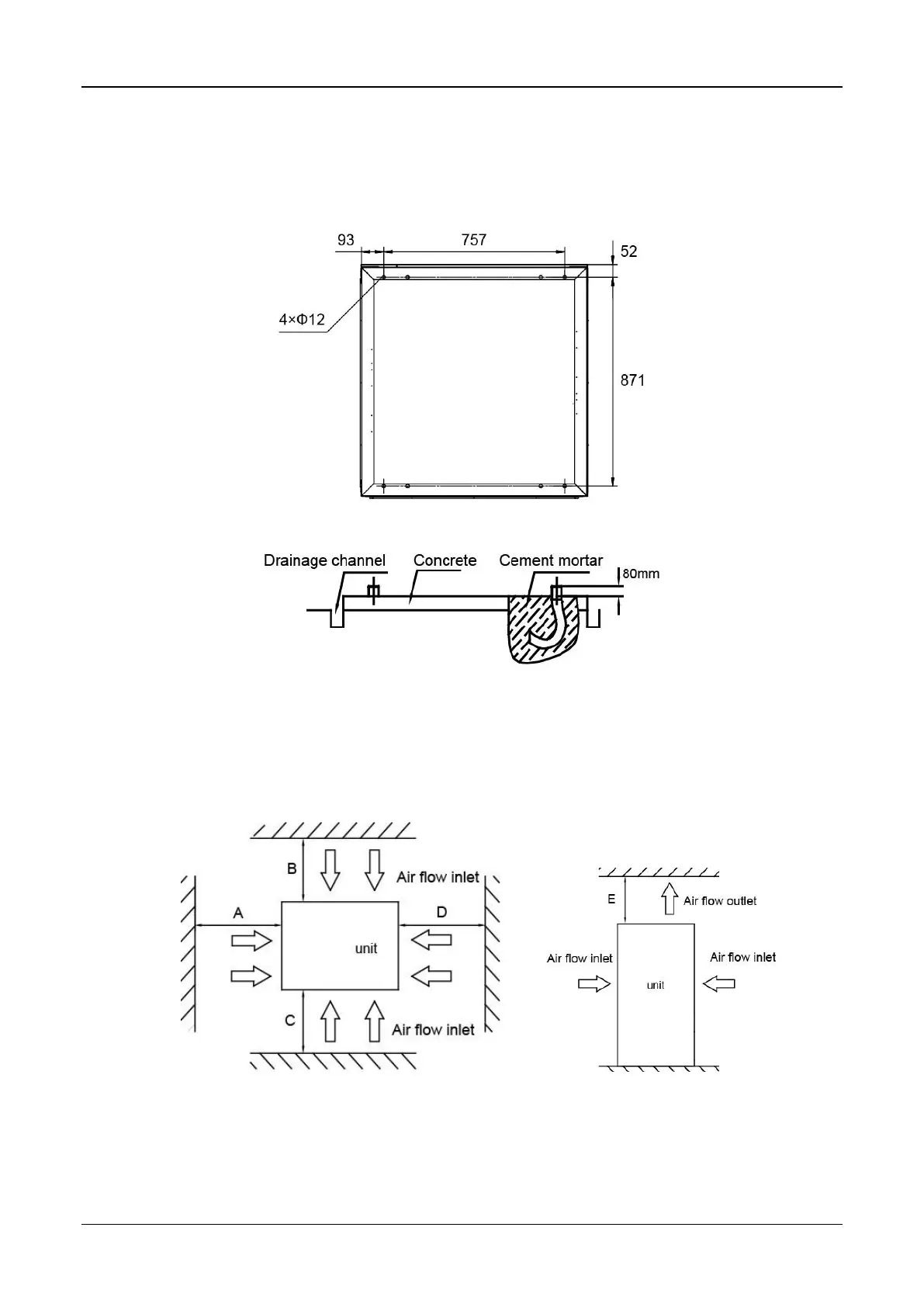

The distance of the foundation bolt is shown in following picture.
To avoid back flow of the air in the condenser and operational faults of the unit, , the spaces
between the unit and the obstacle are also given in the following picture. If the spaces can not be
met, the air passing from the unit to the coils may be restricted, or back flow of air discharge may
occur, and the performance of the unit may be affected, or the unit may fail to operate.
