Part 3 - Installation and Field Settings

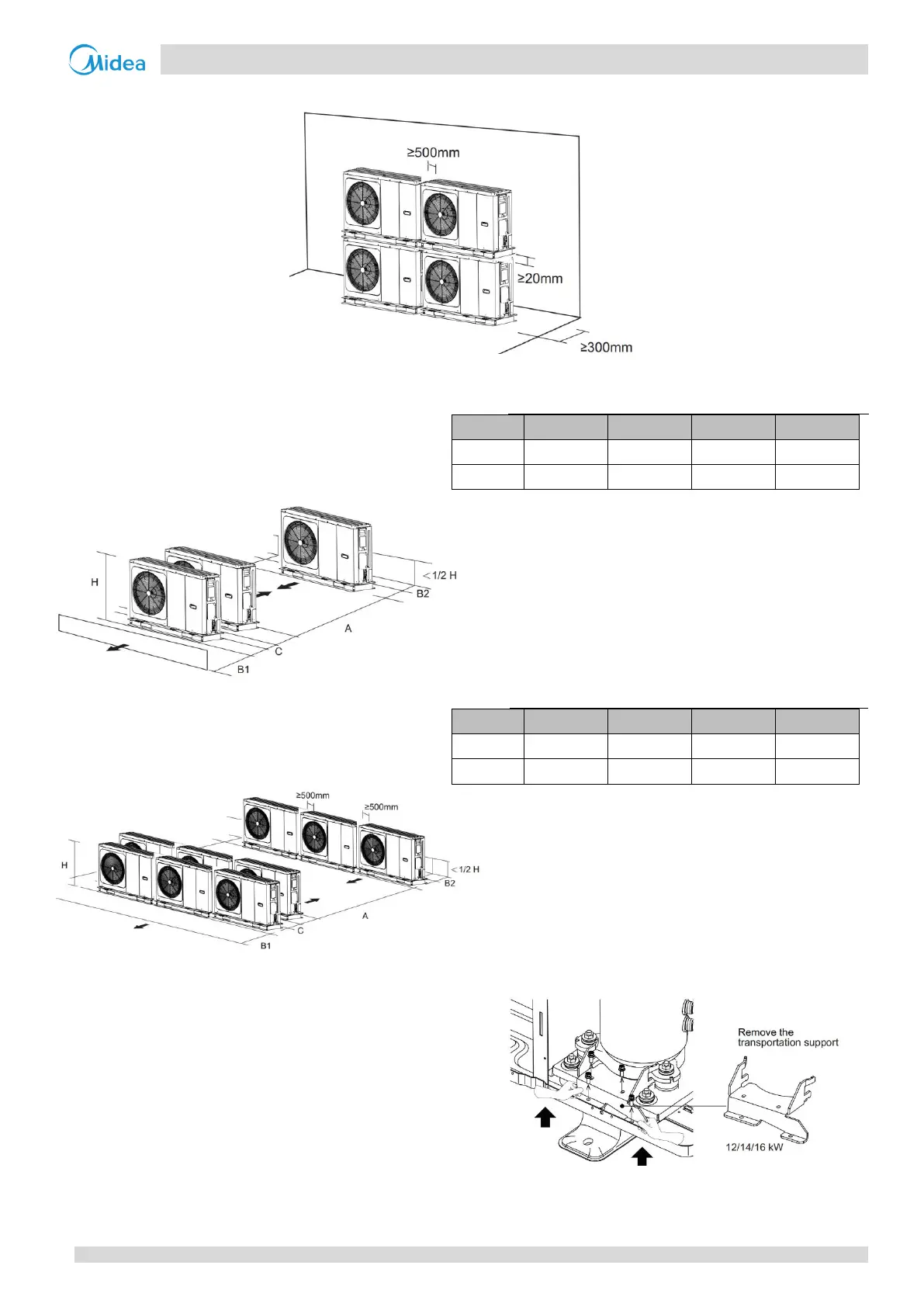

Figure 3-2.9: Installation with obstacles behind the unit
1.1.2 Installation in Rows
Figure 3-2.10: Single row installation
Table 3-2.3: Single row installation spacing requirements
Model
A(mm)
B1(mm)
B2(mm)
C(mm)
4-6KW
≥1500
≥500
≥150
≥300
8-16KW
≥2000
≥1000
≥150
≥300
Figure 3-2.11: Multi-row installation
Table 3-2.4: Multiple row installation spacing requirements
Model
A(mm)
B1(mm)
B2(mm)
C(mm)
4-6KW
≥2500
≥1000
≥300
≥600
8-16KW
≥3000
≥1500
≥300
≥600
Figure 3-2.12: Remove the transportation support
2.10 Transportation support
For 12/14/16kW model, there is a transportation support which is
used to protect tubes from breaking during transportation and
this support should be taken off before turning on the heat pump.
