M thermal Mono
4 202005
Midea M thermal Mono Engineering Data Book
1 M thermal Mono System
1.1 System Schematic

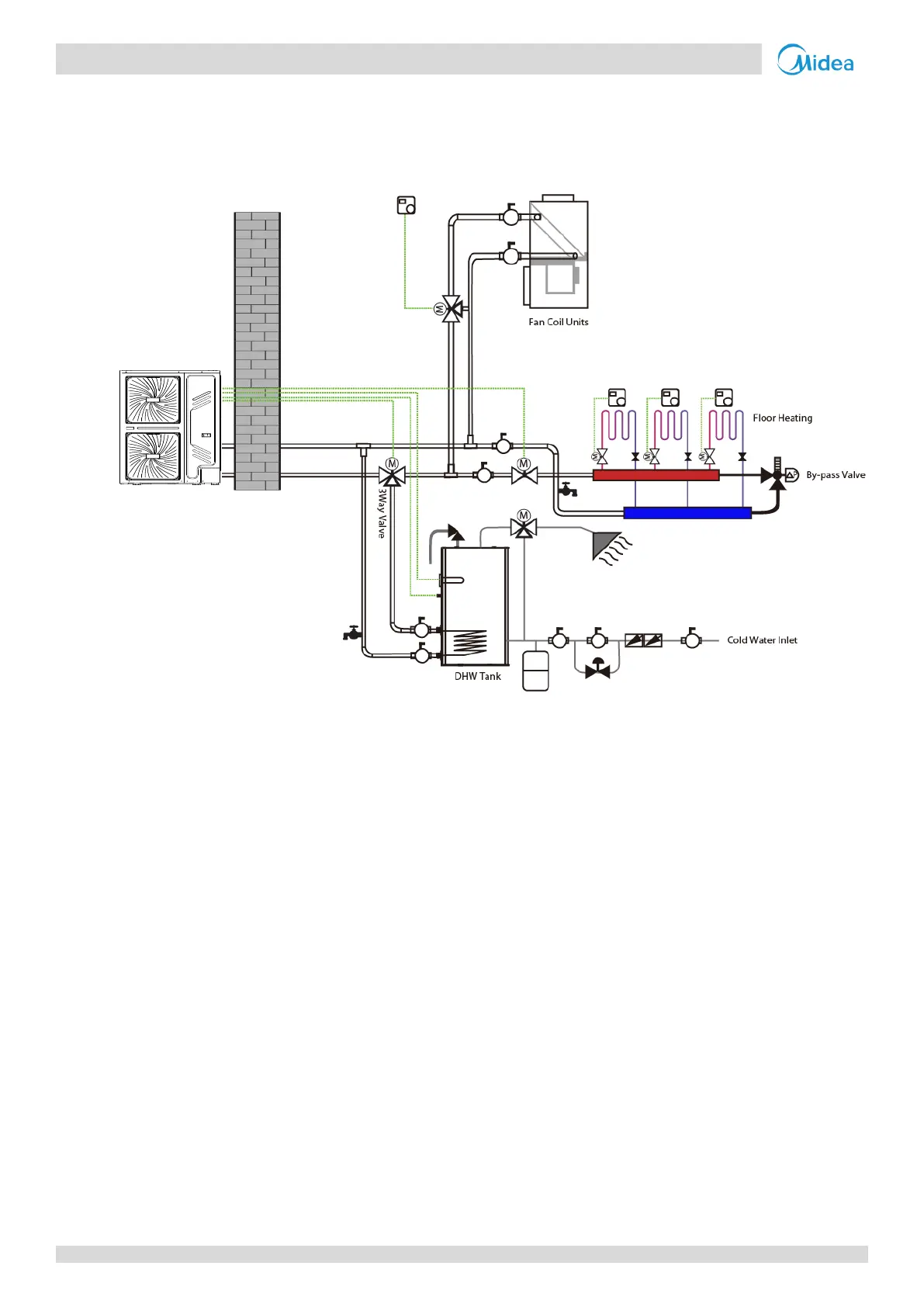

Figure 1-1.1: System schematic
M thermal Mono is an integrated air-to-water space heating, space cooling and domestic hot water heat pump system.
The outdoor heat pump system extracts heat from the outdoor air and transfers this heat through refrigerant piping to the
plate heat exchanger in the hydronic system. The heated water in the hydronic system circulates to low temperature heat
emitters (floor heating loops or low temperature radiators) to provide space heating, and to the domestic hot water tank
to provide domestic hot water. The 4-way valve in the outdoor unit can reverse the refrigerant cycle so that the hydronic
system can provide chilled water for cooling using fan coil units.
M thermal Mono is an integrated air to water heat pump system which is one-stop solution for space heating, space
cooling and domestic hot water. The outdoor heat pump system extracts heat from the outdoor air and transfers this heat
through refrigerant piping to the plate heat exchanger in the hydronic system. The heated water in the hydronic system
circulates to low temperature heat emitters (floor heating loops or low temperature radiators) to provide space heating,
and to the domestic hot water tank to provide domestic hot water. The 4-way valve in the outdoor unit can reverse the
refrigerant cycle so that the hydronic system can provide chilled water for cooling using fan coil units.
The heating capacity of heat pumps decreases with ambient temperature dropping. M thermal Mono can be equipped
with a backup electric heater to provide additional heating capacity for use during extremely cold weather when the heat
pump capacity is insufficient. The backup electric heater also serves as a backup in case of heat pump malfunction and for
anti-freeze protection of the outside water piping in winter.
M thermal Mono Outdoor Unit
Distributor
Collector
