Part 3 - Installation and Field Settings
7 User Interface Field Settings
7.1 Introduction
During installation, the M thermal settings and parameters should be configured by the installer to suit the installation
configuration, climate conditions and end-user preferences. The relevant settings are accessible and programmable
through the FOR SERVICEMAN menu on the M thermal user interface. The user interface menus and settings can be
navigated using the user interface’s touch-sensitive keys, as detailed in Table 3-7.1.

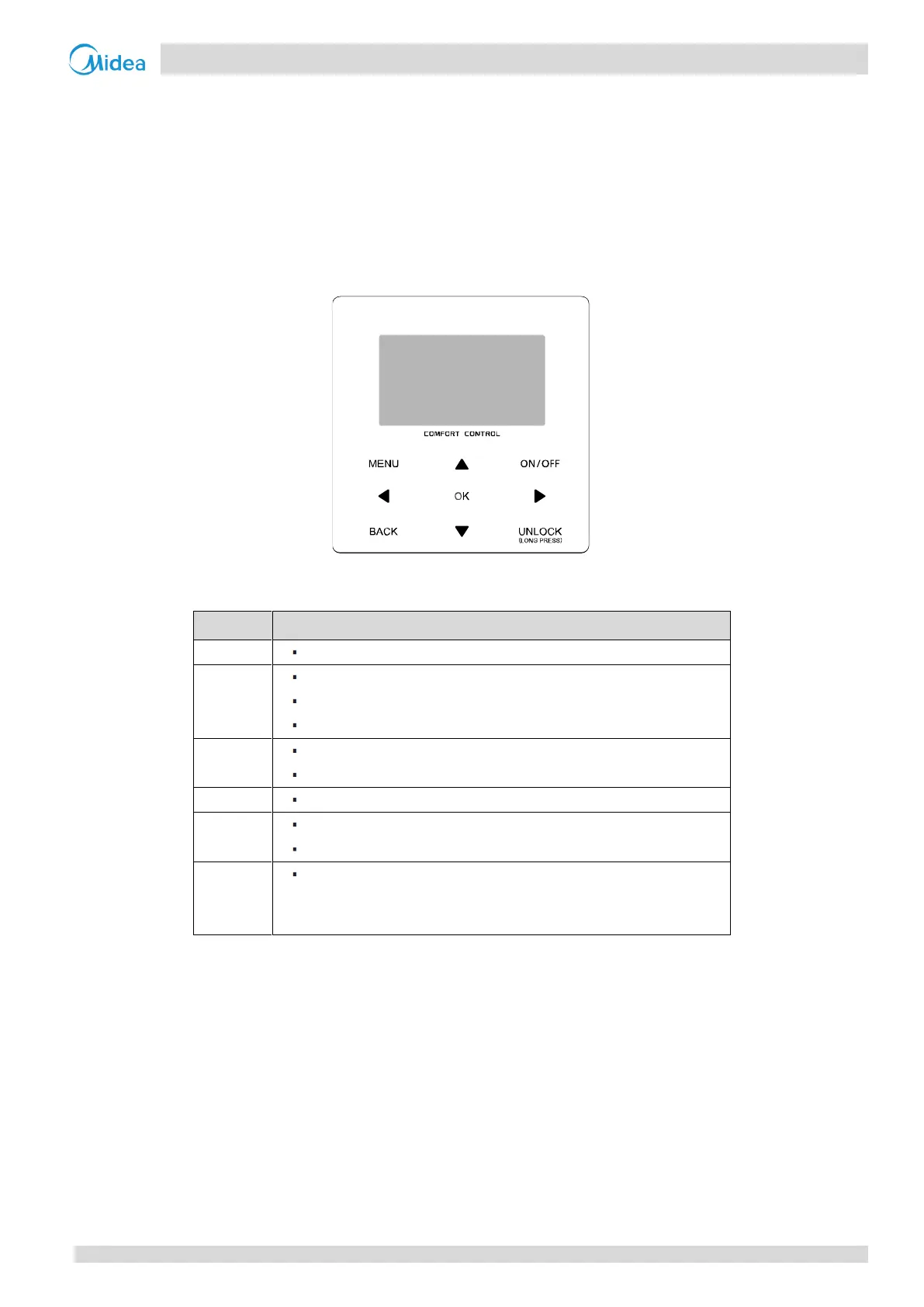

Figure 3-7.1: User interface
Table 3-7.1: User interface keys
Navigate the cursor on the display
Navigate in the menu structure
Adjust settings
Turn on/off the space heating/cooling operation or DHW mode
Turn on/off functions in the menu structure
Come back to the up level
Long press for unlock/lock the controller
Unlock /lock some functions such as “DHW temperature adjusting”
Go to the next step when programming a schedule in the menu
structure and confirm a selection to enter in the submenu of the menu
structure.
