Midea MHC - V18W/D2RN8 Engineering Data

M thermal Mono
202005 75
Part 3 - Installation and Field Settings

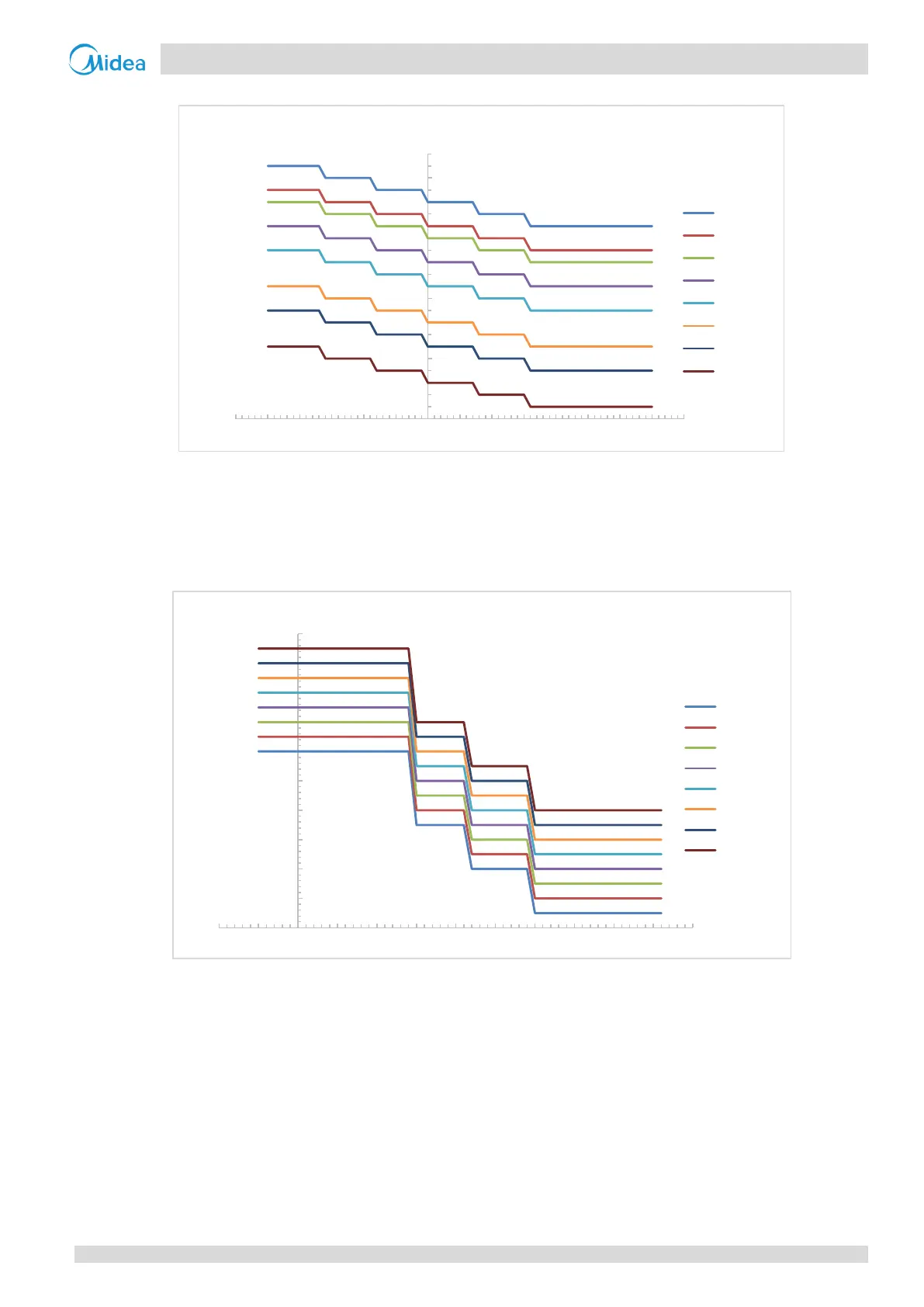

Figure 3-9.3: High temperature curves for heating mode
1
Leaving water set temperature (⁰C )
Notes:
1. It only has the curves of the high temperature setting for heating, if the high temperature is set for heating.
2. Curve 4 is default in high temperature heating mode and curve 6 is default in ECO mode.
Figure 3-9.4: Low temperature curves for cooling mode
1
Leaving water set temperature (⁰C )
Notes:
1. It only has the curves of the low temperature setting for cooling, if the low temperature is set for cooling.
2. Curve 4 is default in low temperature cooling mode.
34
39
44
49
54
-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40
T1S(℃)
T4(℃)
Curve 1
Curve 2
Curve 3
Curve 4
Curve 5
Curve 6
Curve 7
Curve 8
4
6
8
10
12
14
16
18
20
22
24
-10 -5 0 5 10 15 20 25 30 35 40 45 50
T1S(℃)
T4(℃)
Curve 1
Curve 2
Curve 3
Curve 4
Curve 5
Curve 6
Curve 7
Curve 8
