Midea MHC- V30W/D2RN8 Engineering Data

M thermal Mono
202005 9
Part 1 - General Information
5 Typical Applications
5.1 Space Heating
The room thermostat is used as a switch. When there is a heating request from the room thermostat, the Mono unit
operates to achieve the target water temperature set on the user interface. When the room temperature reaches the
thermostat’s set temperature, the unit stops.

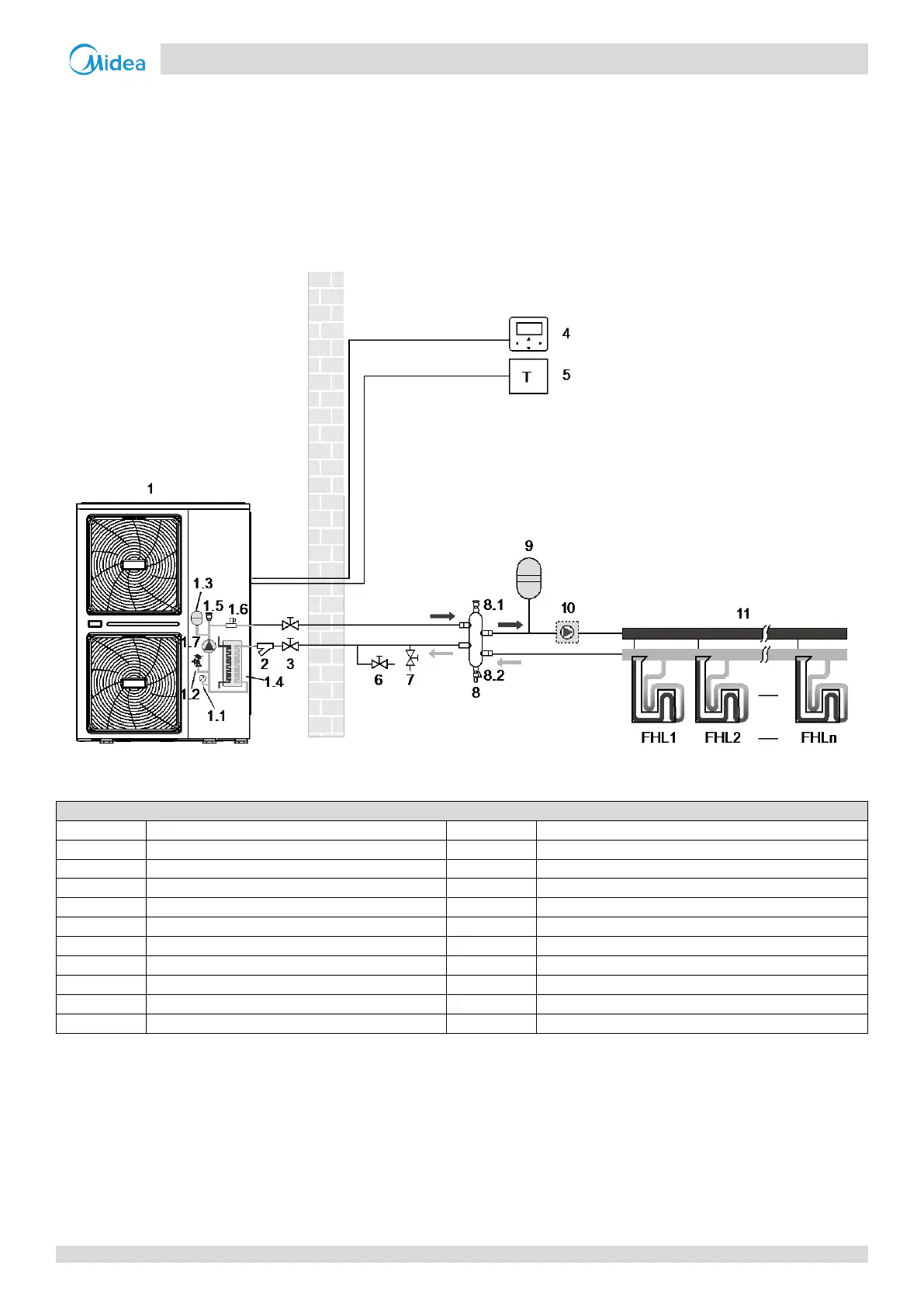

Figure 1-5.1: Space heating
Table 1-5.1: Space heating
Legend
1
Outdoor unit
5
Room thermostat (field supplied)
1.1
Manometer
6
Drain valve (field supplied)
1.2
Pressure relief valve
7
Fill valve (field supplied)
1.3
Expansion vessel
8
Balance tank (field supplied)
1.4
Plate heat exchanger
8.1
Air purge valve
1.5
Air purge valve
8.2
Drain valve
1.6
Flow switch
9
Expansion vessel (field supplied)
1.7
P_i: Circulation pump inside the unit
10
P_o: Outside circulation pump (field supplied)
2
Y-shape filter
11
Collector / Distributor (field supplied)
3
Stop valve (field supplied)
FHL 1...n
Floor heating loop (field supplied)
4
Wired controller
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
