Part 3 - Installation and Field Settings
2 Installation
2.1 Acceptance and Unpacking
2.2 Hoisting

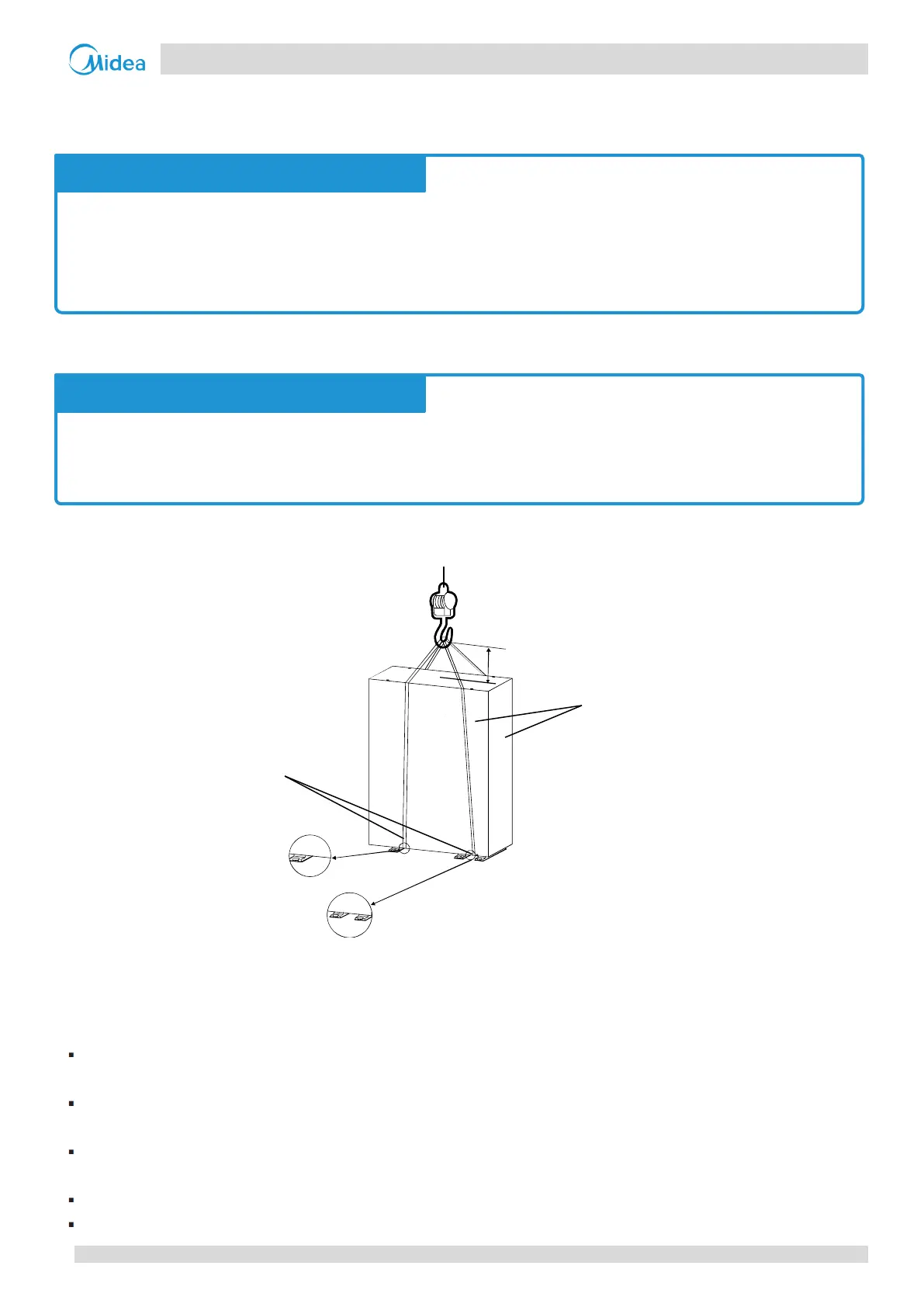

Figure 3-2.1: Hosting the unit
2.3 Placement Considerations
Placement of the outdoor unit should take account of the following considerations:
Outdoor units should not be exposed to direct radiation from a high-temperature heat source or a potentially
explosive atmosphere. Outdoor units should be installed in positions that are as far as possible to the heat emitters.
Outdoor units should not be installed in positions often used as a work space. In case of construction work (e.g.
grinding etc.) where dust or dirt is created and it may affect heat exchangers.
Outdoor units should not be installed in locations where exposure to oil or to corrosive or harmful gases, such as
acidic or alkaline gases, may occur.
Outdoor units should be installed in well-drained, well-ventilated positions.
Outdoor units should be installed in positions that are sufficiently close to the desired position of the wired controller
The hook and barycenter of the unit
should be on a line in vertical direction
to prevent improper inclination
Make the rope go through the lifting holes
from both the right and left sides in the
wooden collet
≥1000mm
When units are delivered check whether any damage occurred during shipment. If there is damage to the
surface or outside of a unit, submit a written report to the shipping company.
Check that the model, specifications and quantity of the units delivered are as ordered.
Check that all accessories ordered have been included. Retain the Owner's Manual for future reference.
Do not remove any packaging before hoisting. If units are not packaged or if the packaging is damaged, use
suitable boards or packing material to protect the units.
Hoist one unit at a time, using two ropes to ensure stability.
